Description

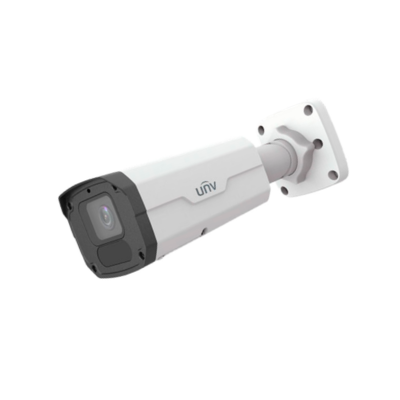

Product Name: UNV IPC2225SB-ADF28KM-I1 HD IP Bullet Camera

Country of Origin: China

Manufacturer: Uniview (UNV)



Product Description :

The UNV IPC2225SB-ADF28KM-I1 5MP IP Bullet Camera is a professional surveillance solution designed for reliable security monitoring in residential, commercial, and industrial environments.

This camera features a 5MP progressive scan CMOS sensor, delivering high-resolution video up to 2880 × 1620 at 30fps. It is equipped with 120dB True WDR, ensuring balanced image quality in both bright and low-light conditions.

With Smart IR night vision up to 80 meters, the camera provides clear visibility in complete darkness. It supports human and vehicle classification for cross line and intrusion detection, helping improve monitoring accuracy.

The device includes audio and alarm interfaces, built-in microphone support, and IP67 + IK10 protection, making it suitable for both indoor and outdoor installations in demanding environments.

It supports Ultra 265, H.265, H.264, and MJPEG compression, along with microSD storage up to 512GB, ensuring efficient storage and flexible recording options.

🔍 Key Features

📷 5MP High-Definition Resolution (2880 × 1620 @30fps)
Provides clear and detailed surveillance video output

🌙 Smart IR Night Vision up to 80m (262.5ft)
Ensures clear visibility in complete darkness

🌗 120dB True Wide Dynamic Range (WDR)
Balances bright and dark areas in complex lighting conditions

🔍 2.8mm Fixed Lens (F1.6)
Wide-angle coverage with 108.5° horizontal field of view

🚶🚗 Human & Vehicle Classification Detection
Supports motion detection, ultra motion detection, cross line and intrusion detection

🎥 Video Compression Support
Ultra 265 / H.265 / H.264 / MJPEG for efficient storage and bandwidth usage

🔄 Dual Stream Support
Main stream and sub stream for flexible monitoring and recording

🎤 Built-in Microphone + Audio I/O (1 In / 1 Out)
Supports audio recording and external audio integration

🔔 Alarm I/O (1 In / 1 Out)
Supports integration with external alarm systems

💾 MicroSD Card Storage up to 512GB
Local edge recording with ANR and NAS support

🌦️ IP67 Weatherproof Protection
Suitable for outdoor and indoor installations

🛡️ IK10 Vandal Resistance
Provides protection against impact and vandalism

🔌 PoE (IEEE 802.3af) Support
Simplifies installation using a single network cable

📡 ONVIF Compatible (Profile S/G/T/M)
Supports integration with third-party surveillance systems

⚙️ Technical Specifications

Model: IPC2225SB-ADF28KM-I1

Brand: UNV (Uniview)

Image Sensor: 1/2.7″ Progressive Scan CMOS

Resolution: 5MP (2880 × 1620) @30fps

Lens: 2.8mm Fixed Lens (F1.6)

Field of View: 108.5° (H), 57.9° (V), 141.1° (D)

IR Range: Up to 80 meters (850nm)

WDR: 120dB True WDR

Video Compression: Ultra 265 / H.265 / H.264 / MJPEG

Storage: MicroSD up to 512GB, ANR, NAS

Audio: 1 Input / 1 Output + Built-in Microphone

Alarm: 1 Input / 1 Output

Network: RJ45 10/100 Mbps Ethernet

Protection: IP67 + IK10

Power: DC 12V ±25% / PoE (IEEE 802.3af)

Power Consumption: Max 8W

Operating Temperature: -30°C to 60°C

Weight: 0.82 kg

Dimensions: 245 × 87 × 86 mm

Why Choose UNV IPC2225SB-ADF28KM-I1 in Bangladesh?

The UNV IPC2225SB-ADF28KM-I1 is one of the best professional surveillance cameras for businesses and organizations looking for advanced CCTV security solutions in Bangladesh. Its combination of LightHunter low-light technology, 5MP ultra-clear video quality, Smart IR night vision, intelligent human & vehicle detection, and advanced intrusion prevention features makes it an ideal choice for modern security systems.

UNV cameras are trusted worldwide for their stable performance, excellent image quality, advanced AI security features, and long-term reliability. Whether you need surveillance for a business, warehouse, office, shopping center, factory, or residential property, this 5MP IP Bullet Camera delivers dependable security monitoring and professional-grade protection.





For the best price, contact us at +88 01737118246 or email us at [email protected]
