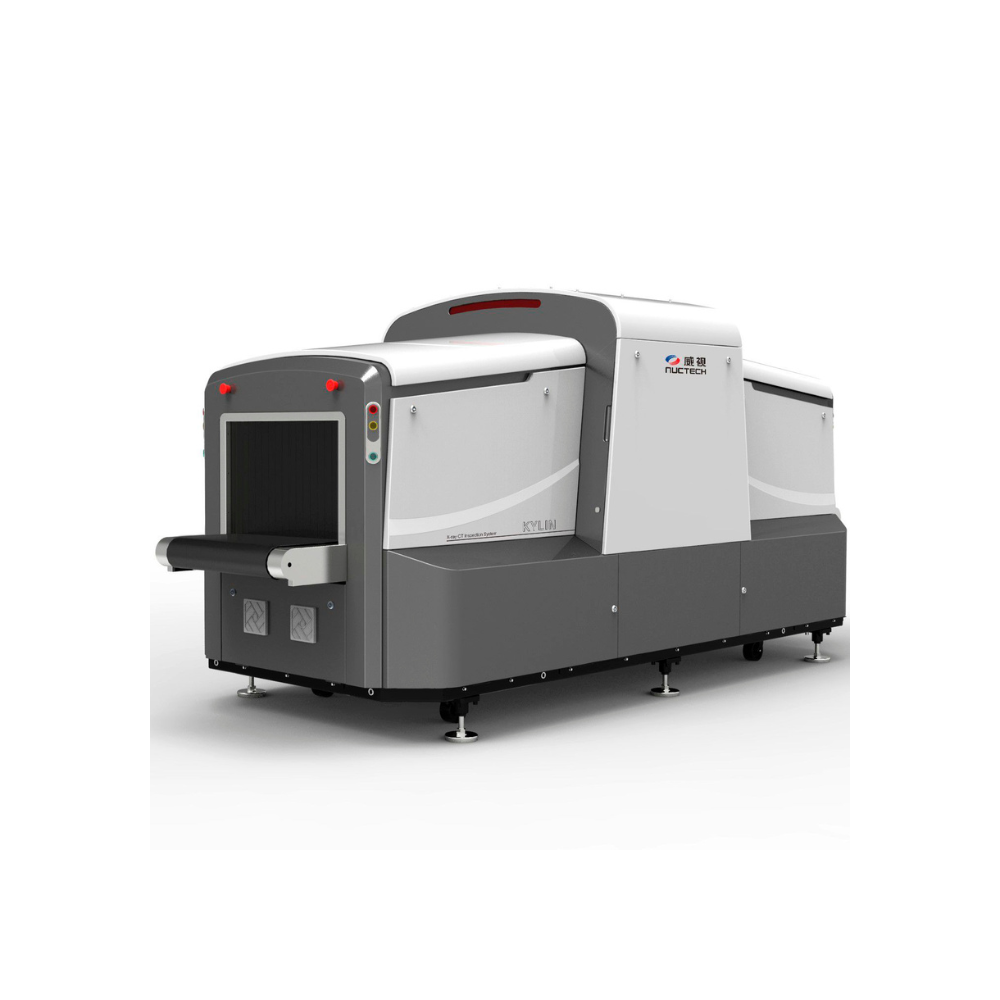

Kylin Ti X-Ray CT Inspection System

Description

Product Name: Kylin Ti X-Ray CT Inspection System

Manufacturer: Nuctech Company Limited

Country of Origin: China

Product Description

The Kylin Ti is a cutting-edge, next-generation CT (Computed Tomography) security inspection system. Engineering teams innovatively combined dual-energy material discrimination technology with advanced spiral CT scanning. With multidimensional information acquired by the system, it realizes automated explosives, liquid explosives, and narcotics detection. Consequently, operators achieve a significantly higher probability of detection combined with exceptionally lower false alarm rates.

This high-performance system stands out on the market by securing the prestigious ECAC EDSCB Standard C3 certification. Nuctech, a global leader originating from Tsinghua University, designed this high-throughput scanner to eliminate traditional screening blind spots completely. It inspects objects in a comprehensive 360-degree view, making it much easier to identify contraband concealed in deep layers or placed at tricky angles. Furthermore, it generates high-resolution DR images to identify small, thin objects like matches and lighter cores.

Most importantly, the system features a 624mm width and 420mm height tunnel footprint that delivers a massive throughput of 900 bags per hour. It utilizes dual-energy CT technology to acquire exact material density data, colorizing different substances across interactive 3D images. Designed to support modern integration, it communicates flawlessly with any brand of Automated Tube Retravel System (ATRS). Therefore, it serves as an ideal, future-proof screening choice for airports, Customs checkpoints, critical infrastructures, government buildings, and high-profile public events.

Key Features

• Advanced 360-Degree Spiral CT Technology: Inspects all baggage across a complete 360-degree view without any blind corners. This layout makes it incredibly simple to detect items hidden at specific angles or packed deeply.

• ECAC Standard C3 Certified Threat Detection: Achieves automated detection and instant alarms for explosives, liquid explosives, and narcotics. As a result, terminal operations satisfy strict international aviation regulations.

• High-Resolution DR Imaging & Penetration: Delivers premium imaging with a 40 AWG wire resolution and steel penetration up to 40mm, cleanly capturing tiny threat indicators.

• Interactive 3D Image Processing & TIP: Provides advanced 3D manipulation tools including 3D measurement, 3D marking, 3D super penetration, and 3D Threat Image Projection (TIP) for effective operator training.

• Optimized Throughput & Integration: Handles a swift 900 TPH (Bags Per Hour) throughput capacity. Additionally, it integrates natively with third-party ATRS setups to reduce checkpoint friction.

• Cloud Computing & Easy Maintenance: Realizes remote image resolutions, diagnostics, and secure data sharing via built-in cloud technology, while utilizing a modular design for rapid component replacement.

Technical Specifications

• Product Series: Kylin Series

• Manufacturer: Nuctech Company Limited

• Country of Origin: China

• Device Type: 3D Computed Tomography (CT) X-Ray Inspection System

• Technology: Spiral CT & Dual-Energy Material Discrimination (ECAC EDSCB Standard C3 Approved)

• Tunnel Dimensions: 624 mm (Width) × 420 mm (Height)

• Max. Baggage Size: 2000 mm (L) × 620 mm (W) × 420 mm (H)

• Conveyor Height: 702 mm – 717 mm

• Conveyor Load: 160 kg

• Throughput: 900 TPH (Bags Per Hour)

Image Performance & System Specs

• DR Wire Resolution: 40 AWG

• DR Steel Penetration: Up to 40 mm

• CT Spatial Resolution: 2 mm line pair

• Display Monitor: Color monitor / High resolution of 1920 × 1080

• ROI & Zoom: Selectable image zoom regions, 1 – 64 times enlargement

• Data Storage Capacity: Up to 50,000 images

Image Processing System

• DR Image Processing: Color / BW, Negative, Edge enhancement, General enhancement, Organic stripping, Inorganic stripping, High-energy Penetration, Pseudo-color, etc.

• 3D Image Processing: Color / BW, Negative, Edge enhancement, Super penetration, Organic stripping, Inorganic stripping, 3D mark, 3D measurement, Threat single display, etc.

Health and Safety

• X-ray Leakage: Conforms to all the radiation protection standards recommended by IAEA, ICRP, and WHO.

System Functions

• Core Software Capabilities: Date / Time display, Baggage counter, User management, System-on timers, Power-on self-test, Image Storage and query, Built-in diagnosis.

Installation Data

• Dimensions / Weight: 3780 mm (L) × 1330 mm (W) × 1685 mm (H) / 2000 kg

• Operating Temperature / Humidity: 0℃ – +40℃ / 5% – 95% (non-condensing)

• Storage Temperature / Humidity: -40℃ – +60℃ / 5% – 95% (non-condensing)

• Power Supply: 220VAC / 110VAC (-15% ~ +10%), 50Hz / 60Hz±3Hz

• Power Consumption: 3.2 kVA

Conclusion

For facility managers and security authorities in Bangladesh, deploying a modern screening infrastructure is vital. It is all about striking the right equilibrium between rapid throughput and rigorous security verification. Fortunately, the Kylin Ti redefines this balance by delivering superior threat detection within a 3D CT scanner footprint. For example, it allows local transport networks, government buildings, and mega-event venues to achieve high safety standards without sacrificing spatial logistics.

By streamlining these checkpoint workflows, the system significantly mitigates congestion during peak entry hours. Consequently, this directly elevates both operator efficiency and the overall visitor experience. Furthermore, with its advanced automated detection capabilities and scalable configuration options, the Kylin Ti offers a future-proof, highly reliable solution. Investing in this technology provides a critical strategic advantage. Thus, it ensures that commercial, diplomatic, and transport hubs across Bangladesh remain resilient, compliant, and optimized for modern security demands.
