Large Enterprise Environment Monitoring System (Extended Logging, AC) – E-16DEL

Description

Product Name: Large Enterprise Environment Monitoring System (Extended Logging, AC) – E-16DEL

Manufacturer: NTI (Network Technologies Inc)

Product Overview

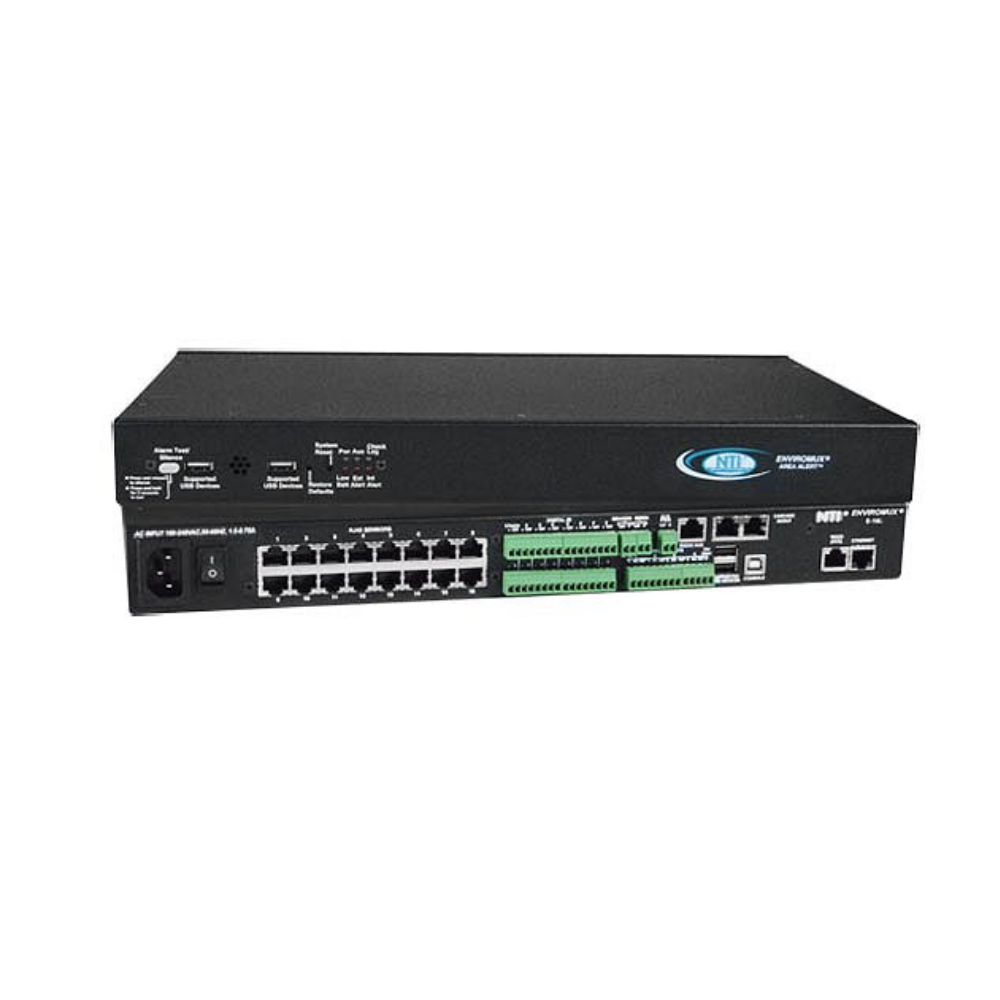

The ENVIROMUX® E-16DEL is an enterprise-grade environment monitoring system designed for continuous monitoring of critical environmental conditions in server rooms, data centers, telecom sites, and other mission-critical facilities. It tracks parameters such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor reading deviates from a configurable threshold, the system triggers immediate alerts via email, LEDs, alarm beacon, siren, web page, SNMP, voice phone calls (via Automatic Voice Dialer System), and SMS messages.

Key Features

• Extended Data Logging: The “EL” designation provides massive storage for audit trails, holding up to 1,200,000 data log entries and 3,000 event log entries. The 256 MB non-volatile memory ensures data persists even after a power cycle.

• Integrated & Scalable Sensing: Features three internal sensors (temperature, humidity, and power) and supports 16 external configurable sensors, 8 digital inputs, and 4 relay outputs for monitoring and control of connected devices.

• Smart Alerting & Logic: Configure up to 50 events and 20 “Smart Alerts” using complex event combinations. Includes the ability to send SSH commands for soft shutdown or reboot of machines when events are triggered.

• Cascading Capability: Supports cascading of up to five systems via RS485 or Ethernet, enabling centralized monitoring of all connected systems and sensors through a single web interface.

• Advanced Security: Built on a Linux core, it supports HTTPS, SSHv2, SSLv3, IP Filtering, LDAPv3, and AES 256-bit encryption. Access is controlled via 16-character username/password authentication.

• IP Camera Integration: Integrates with NTI’s IP network cameras to provide live views alongside environmental data, allowing for snapshot triggers based on any programmed alarm event.

Technical Specifications

• Power Input: 100 to 240 VAC at 50/60 Hz via IEC connector. Includes internal rechargeable battery backup providing up to 1 hour of operation.

• Internal Sensors:

  • Temperature: 32–104°F (0–40°C) with accuracy up to ±0.4°C.

  • Humidity: 20–80% RH with ±3% RH accuracy (at 77°F/25°C).

  • Power: Measures mains voltage (0–255 VAC) and battery voltage (0–20 VDC)

• Digital I/O: 8 dry contact input pairs; 4 potential-free relay switch contacts (Normally Open/Normally Closed).

• Connectivity: 1 × 10/100Base-T Ethernet port, 4 × USB Type-A ports, 1 × USB Type-B console port, 1 × RS232 port, 1 × RS232 AUX port, Beacon port, Siren port, and Cascade In/Out ports.

• Dimensions: 16.19″ x 10.01″ x 1.75″ (without rackmount); 19″ x 10.01″ x 1.75″ (with rackmount).

• Operating Environment: Temperature 32 to 104°F (0 to 40°C); Humidity 5% to 90% non-condensing.

• Reliability & Compliance: MTBF of 89,884 hours. CE, RoHS, and TAA compliant with a 2-year warranty.

Conclusion

Dream Technologies BD is a premier provider of NTI environmental monitoring solutions in Bangladesh. We offer professional guidance and technical support to help you deploy the E-16DEL in your server rooms, co-lo sites, or industrial facilities. Protect your mission-critical assets with our expert integration services.
