Lumens LC200 CaptureVision Station Wireless Video Conference Price in Bangladesh

Description

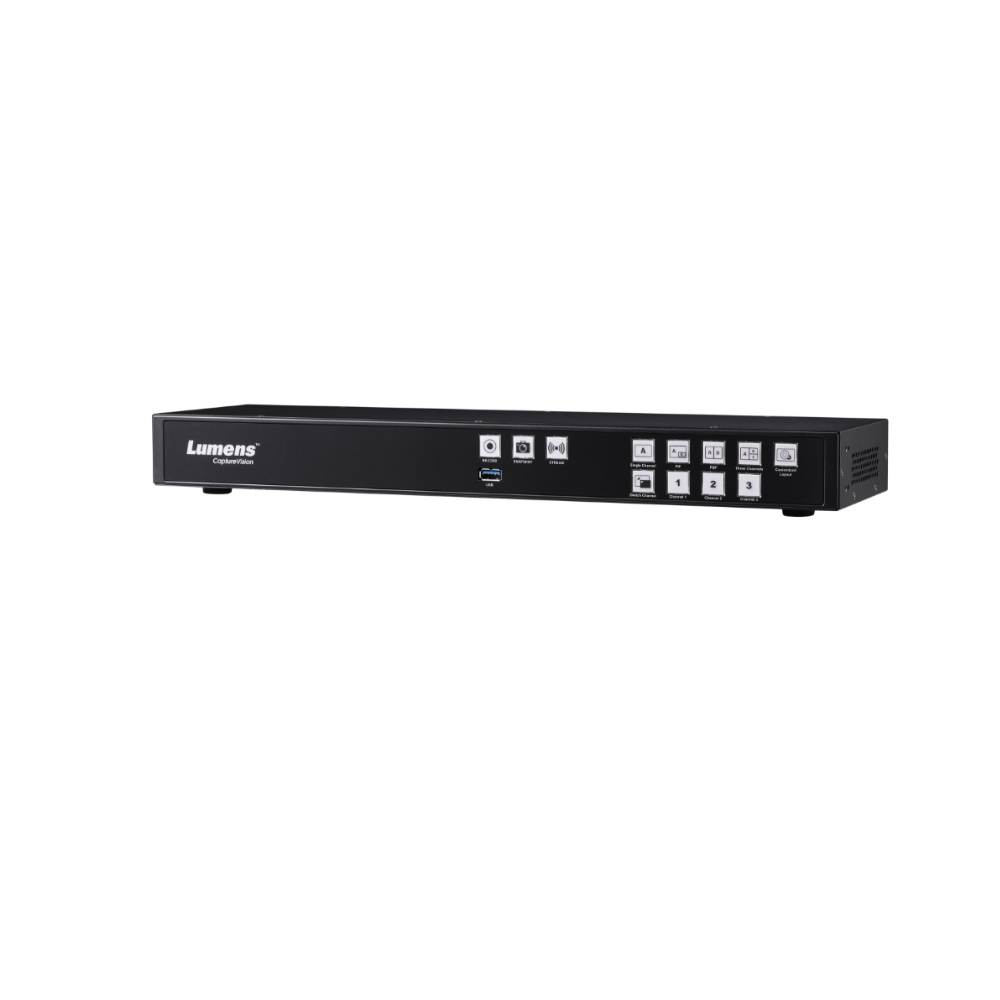

Product Name: Lumens LC200 CaptureVision Station Wireless Video Conference Price in Bangladesh

Manufacturer: Lumens

Product Overview

The Lumens LC200 CaptureVision is an advanced all-in-one media station. It functions simultaneously as a multi-input video switcher, recorder, and live streaming device. Furthermore, it enables users to seamlessly mix up to four video and computer sources. Consequently, operators can create professional presentations and live productions complete with custom logo overlays, optional timestamps, and background selections. In addition, the system records each high-definition input independently alongside the main program output. It also supports direct uploads to organizational platforms like Kaltura, Opencast, Panopto, and Wowza, while streaming live to global audiences across CDNs such as YouTube, Twitch, Facebook, and Livestream.

Key Features and Benefits

• Manufacturer: Lumens

• 4-Input HD Video Switcher & Audio Mixer: Captures video from HDMI sources and standard IP cameras via RTSP streams. As a result, it offers dynamic layouts like side-by-side, picture-in-picture, and multi-window views.

• Independent Multi-Track Recording: Records the processed program output and all four independent video sources in high quality at up to 10Mb/s. Thus, it ensures fast turnaround post-production flexibility.

• Flexible Storage & Backup Options: Stores recordings locally on an internal 1TB HDD, USB flash drives, or network-attached storage. Alternatively, users can upload files remotely via FTP.

• Versatile Live Streaming: Features independent H.264 encoders. Therefore, it provides complete control over streaming bitrates, protocols, and multiple broadcast destinations simultaneously.

• Comprehensive Integration & Control: Integrates smoothly with third-party software like Wirecast, vMix, and OBS Broadcast. Moreover, it supports mouse, keyboard, or touch display control via USB.

Technical Specifications

• Manufacturer: Lumens

• Product Name: Lumens LC200 CaptureVision Station Wireless Video Conference

• Model: LC200

• Video Inputs: 4 x HDMI digital video, IP Sources (Lumens IP PTZ / Box Cameras, RTSP H.264 1080p)

• Video Compression: H.264/AVC 4:2:0 8bit color (High, Main, Baseline profiles)

• Video Bitrate: 200 kbps to 10 Mbps

• Video Outputs: 3 x H.264/AVC digital video over Ethernet, 2 x HDMI digital video

• Internal Storage: Standard 1TB HDD (Optional 2TB HDD upgrade)

• External Storage: 1 x USB 3.0 port on front panel

• Recording File Formats: H.264 and AAC in an MP4 container, JPEG stills

• Audio Inputs: 4 x Line In stereo jacks, 4 x stereo digital de-embedded from HDMI

• Audio Outputs: 1 x stereo unbalanced phone jack, 2 x stereo digital de-embedded from HDMI

• Control & Connectivity: 2 x USB 2.0 type A, 1 x RJ-45 Gigabit Ethernet port, RS-232 / RS-485 serial ports

• Streaming Protocols: Pull: RTSP | Push: RTMP / RTMPS / MPEG-TS, TCP, UDP, HTTP

• Power Supply & Consumption: DC In 12V / 2A | Power Consumption: 24W

• Physical Dimensions: Standard 1U rack dimensions: 122.5mm (L) x 431mm (W) x 44.3mm (H)

Ideal Applications

• Higher Education Lecture Capture and Distance Learning Centers

• Corporate Boardrooms and Large-Scale Video Conferencing

• House of Worship Live Streaming and Multi-Camera Broadcasting

• Government and Public Sector Meetings and Briefings

• Multi-Camera Live Event Production and Studios

Conclusion

The Lumens LC200 CaptureVision Station provides a powerful, all-in-one solution for video switching, independent multi-track recording, and professional live streaming. Because it offers robust multi-source handling and flexible streaming protocols, it delivers an efficient and reliable workflow for education, corporate AV, and broadcast environments.
