Medium Enterprise Environment Monitoring System, Back-up Battery — E-5DB

Description

Product Name: Medium Enterprise Environment Monitoring System, Back-up Battery — E-5DB

Manufacturer: NTI (Network Technologies Inc)

Product Overview

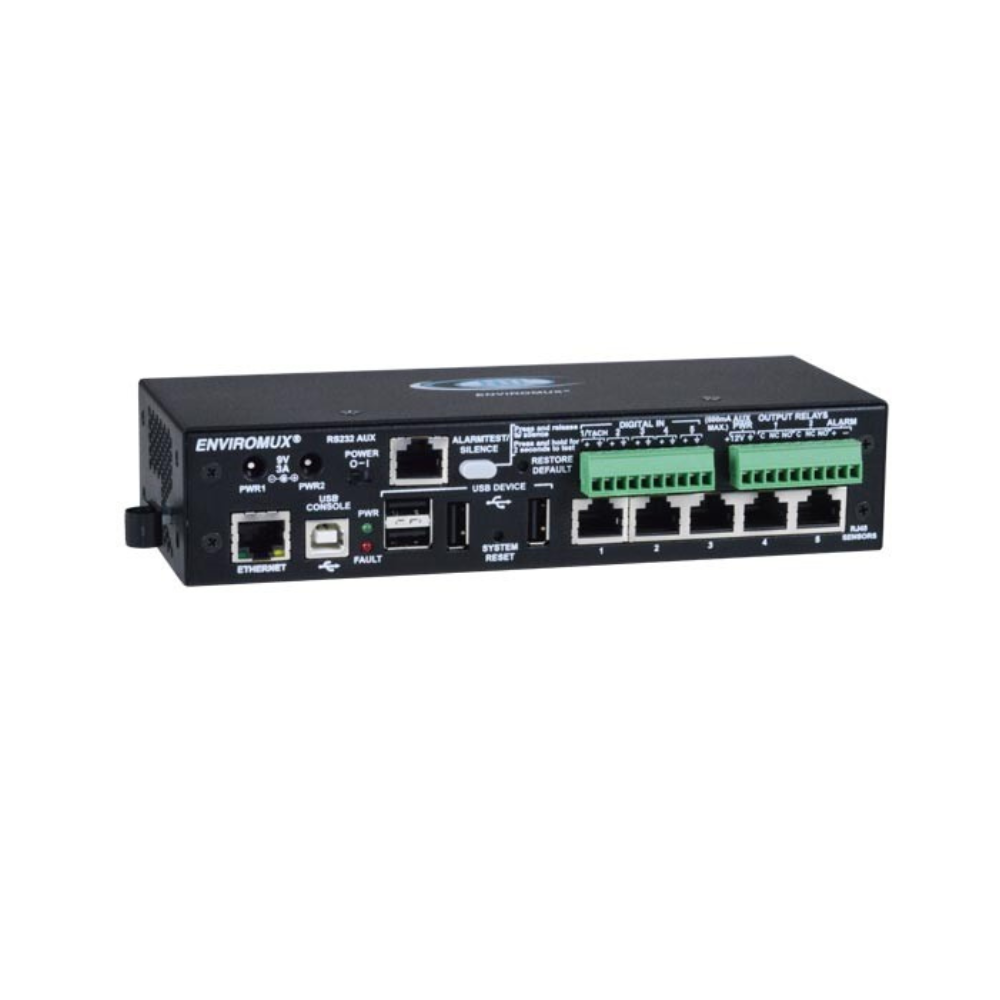

The ENVIROMUX® E-5DB is an enterprise-grade environment monitoring system (EMS) designed for continuous monitoring of critical environmental conditions in server rooms, data centers, telecom sites, and other mission-critical facilities. It tracks parameters such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor reading deviates from a configurable threshold, the system triggers immediate alerts via email, LEDs, alarm beacon, siren, web page, SNMP, voice phone calls (via Automatic Voice Dialer System), and SMS messages (via external USB 3G modem).

Key Features

• Integrated & Scalable Sensing: The unit includes two internal sensors (temperature and humidity) and supports five external configurable sensors, five digital input sensors, and two output relays for control of external devices.

• Reliable Power & Alerts: The E-5DB features an internal battery backup. It also supports dual redundant power supplies (second power supply sold separately). The system proactively sends alerts when power is lost and when power returns.

• Smart Alerting & Logic: Configure up to 50 events and 20 “Smart Alerts” using complex event combinations. The system allows for the execution of SSH commands upon event triggers to perform soft shutdowns or reboots of machines.

• Cascading Capability: Supports cascading of up to five compatible ENVIROMUX systems (one master and four slave units) via Ethernet for centralized monitoring through a single web interface.

• Advanced Security: The system supports high-security protocols including HTTPS, SSHv2, SSLv3, IP Filtering, LDAPv3, and AES 256-bit encryption. Access is managed via 16-character username/password authentication with restricted account rights.

• IP Camera Integration: Integrates with NTI’s IP network cameras to provide live views alongside environmental data, with the capability to trigger snapshots based on programmed events.

Technical Specifications

• Power Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter. Power consumption is 15W.

• Internal Sensors:

  • Temperature: 32 to 104°F (0 to 40°C) with an accuracy of ±0.72°F (±0.40°C).

  • Humidity: 20% to 80% relative humidity at 32 to 104°F (0 to 40°C) with ±3% accuracy.

• Digital I/O: 5 screw terminal pairs for potential-free dry contact devices and 2 potential-free output relays.

• AUX Power: Provides +12VDC, 500mA for auxiliary devices.

• Connectivity: 5 RJ45 sensor ports, 1 × 10/100Base-T Ethernet port, 4 × USB Type-A ports, 1 × USB Type-B console port, 1 × RS232 AUX port, and Alarm port.

• Dimensions: 7.88″ x 3″ x 1.75″ (200x76x44 mm).

• Operating Environment: Temperature 32 to 104°F (0 to 40°C). Operating relative humidity is 15% to 90% non-condensing.

• Reliability: MTBF of 169,279 hours. CE and RoHS compliant with a 2-year warranty.

Conclusion

Dream Technologies BD is a premier provider of NTI environmental monitoring solutions in Bangladesh. We offer professional guidance and technical support to help you deploy the E-5DB in your server rooms, co-lo sites, or industrial facilities. Protect your mission-critical assets with our expert integration services.
