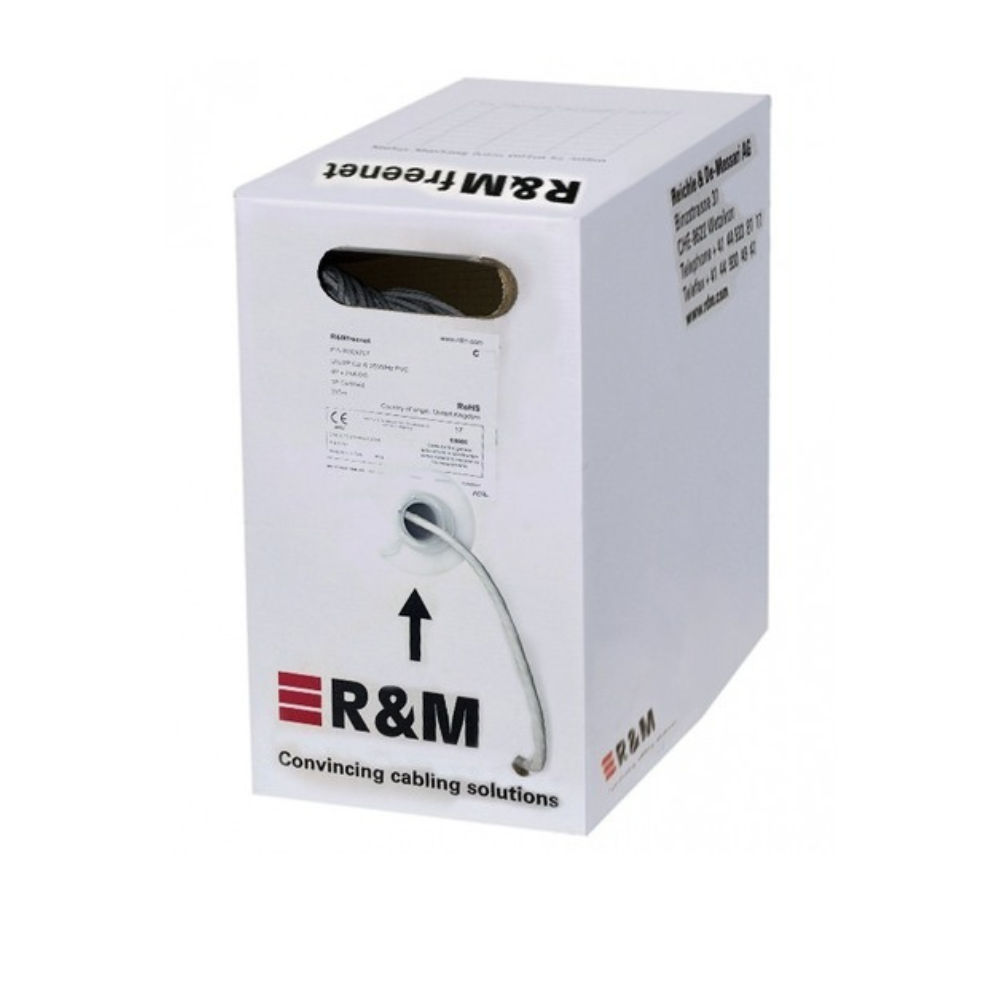

Product Name: R&M R195731 Cat6 LSZH Cable 305m Price in Bangladesh
Product Overview
The R&M R195731 is a Cat.6 U/UTP installation cable with four pairs (8 conductors) and AWG 23 conductor size. It supports transmission frequencies up to 250 MHz and has a grey LSZH (Low Smoke Zero Halogen) outer jacket.
The cable has an unshielded U/UTP construction and is supplied on a 305 m drum. It is used in primary (campus), secondary (riser) and tertiary (horizontal) cabling.
Key Features
- Cat.6 U/UTP installation cable
- 4 pairs (8 conductors)
- Transmission frequency up to 250 MHz
- AWG 23 conductor size
- LSZH (Low Smoke Zero Halogen) outer jacket
- Zero-halogen and flame-retardant jacket
- Unshielded U/UTP construction
- 100 Ω impedance
- Grey outer jacket
- 305 m drum packaging
- Nominal outer diameter: 5.9 mm
Technical Specifications
- Brand: R&M (Reichle & De-Massari)
- Model / Part Number: R195731
- Cable Designation: U/UTP Cat.6 250 MHz 4P × AWG23
- Cable Class: Installation Cable
- Category: Cat.6
- Shielding: U/UTP (unshielded)
- Number of Conductors: 8
- Stranding: 4P
- Conductor Size: AWG 23
- Jacket Material: LSZH
- Jacket Color: Grey (RAL 7035)
- Outer Diameter: Nominal 5.9 mm
- Packaging: Drum, 305 m
- Standards: ISO/IEC 11801 2nd ed.; IEC 61156-5 2nd ed.; IEC 61156-7; EN 50173-1; EN 50288-6-1; ANSI/TIA-568.2-D
Applications
The R&M R195731 is used for structured cabling in primary (campus), secondary (riser) and tertiary (horizontal) cabling. It supports 10Base-T, 100Base-TX and 1000Base-T Ethernet applications.
