Description

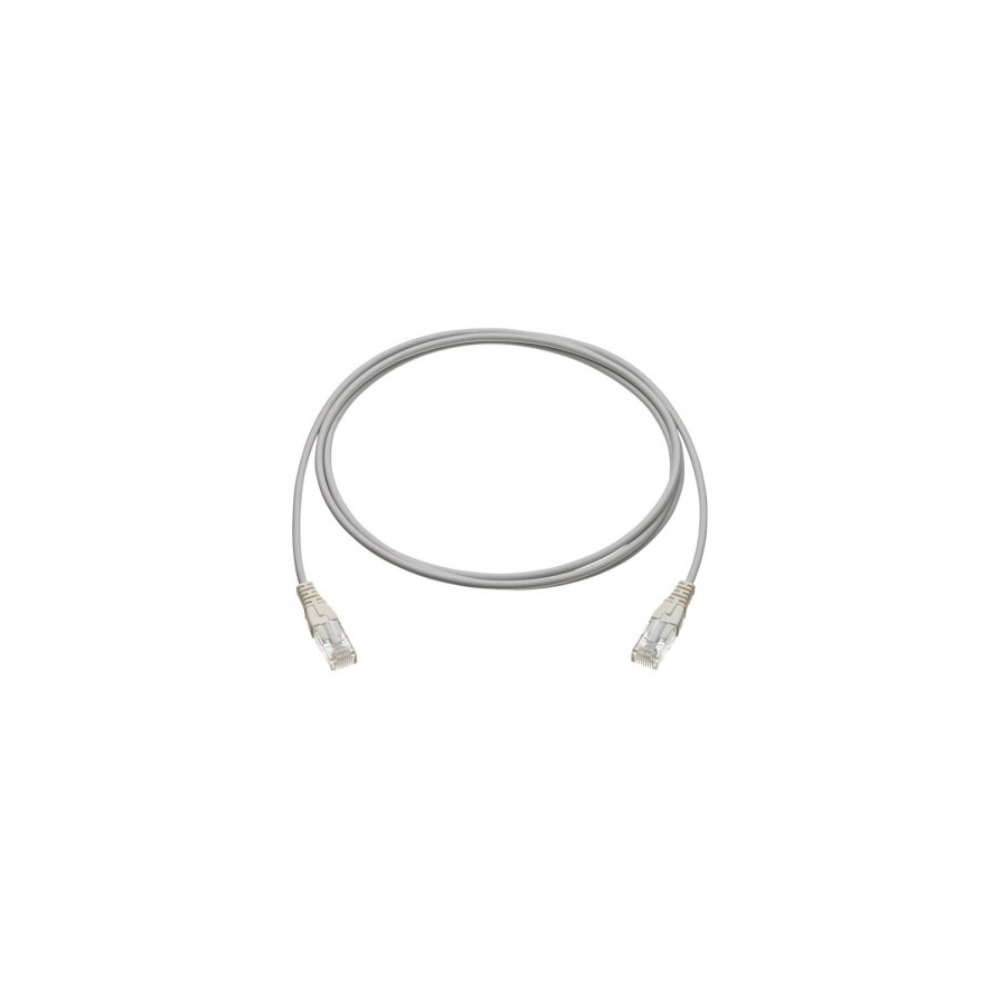

Product Name: R&M R875980 Cat6 LSZH Patch Cord 5m Grey Price in Bangladesh
Product Overview
The R&M R875980 is a Cat.6 U/UTP patch cord with an LSZH (low smoke, zero halogen), metal-free jacket. It has four pairs (8 wires) of stranded AWG 24/7 conductors and unshielded Cat.6 RJ45 connectors at both ends, and meets Cat.6 Class E (250 MHz) requirements of ISO/IEC 11801.
The patch cord is 5.0 m (approx. 16 ft) long with a light gray (RAL 7035) jacket.
Key Features
- Cat.6 U/UTP patch cord, 4 × 2 pairs (8 wires)
- Stranded conductor, AWG 24/7
- LSZH jacket, metal-free, zero-halogen
- Cat.6 RJ45 connectors, unshielded (A and B)
- Cat.6 Class E (250 MHz) per ISO/IEC 11801
- Wiring diagram: TIA-568A
- PoE: Yes
- Protection class IP 20
- Light gray (RAL 7035), 5.0 m
Technical Specifications
- Brand: R&M (Reichle & De-Massari)
- Model / Part Number: R875980
- Cable Type: Patch cord
- Category: Cat.6
- Shielding: U/UTP
- Wire Type: Stranded wire
- Number of Wires: 8 (4 × 2 pairs)
- Wire Diameter: AWG 24/7
- Cable Overall Diameter: 6.0 mm
- Outer Sheath: LSZH, metal-free, zero-halogen
- Connector Type (A): RJ45
- Shielding Connector (A / B): Unshielded
- Category Connector (A / B): Cat.6
- Connector Class: Connector
- Wiring Diagram: TIA-568A
- PoE: Yes
- Protection Class: IP 20
- Standards: Cat.6 Class E (250 MHz) requirements of ISO/IEC 11801; Cat.6 component standards IEC 60603-7-4 and IEC 60603-7-5; IEC 61935-2
- Color: Light gray (RAL 7035)
- Cable Length: 5.0 m (approx. 16 ft)
Contact Us
For technical specifications, local stock availability, and purchasing inquiries regarding R&M cables and networking products in Bangladesh, reach out to our team:
- Phone: +8801737118246
- Email: [email protected]
