Safeway AT130100B High-Speed Cargo X-Ray Scanner Price in Bangladesh | Logistics Sorting Solutions

Description

Product Name: Safeway AT130100B High-Speed Cargo X-Ray Scanner Price in Bangladesh | Logistics Sorting Solutions

Manufacturer: Safeway System

Product Description

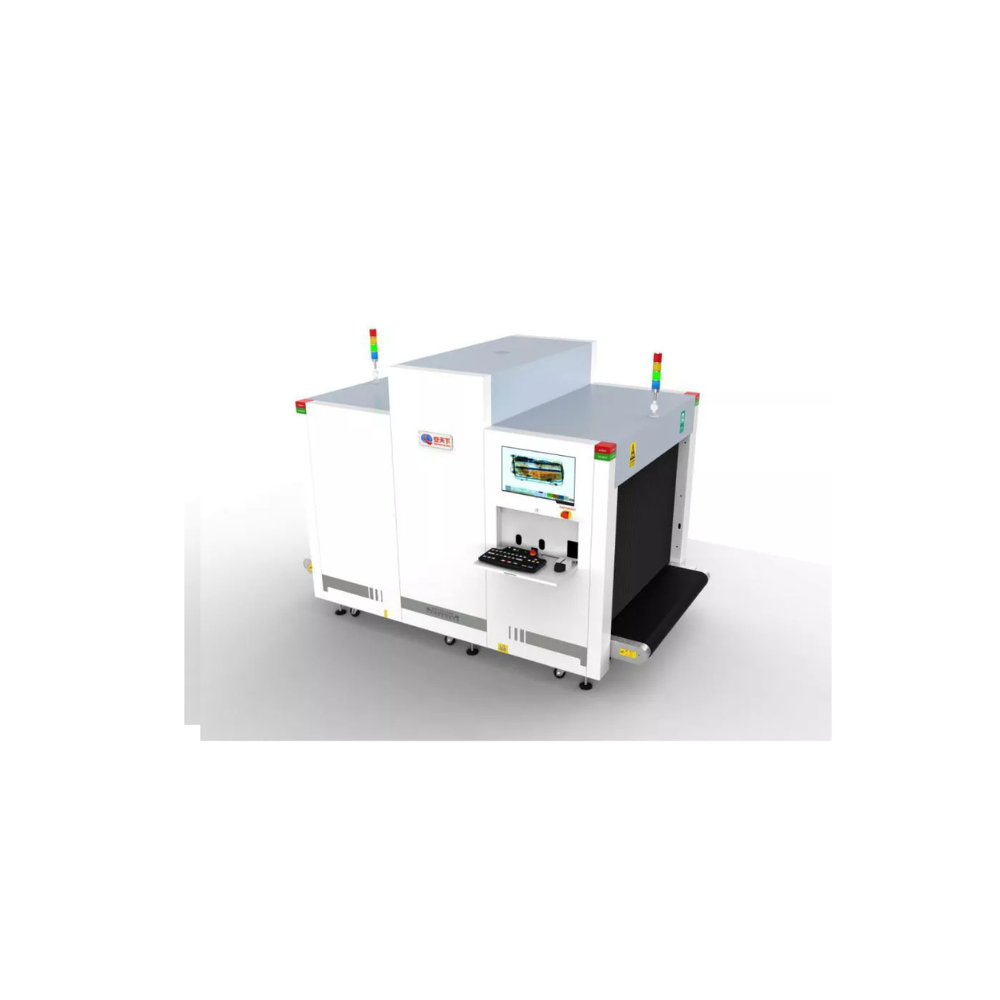

The Safeway AT130100B High-Speed Cargo X-Ray Scanner is an industrial-grade security inspection system engineered with a spacious 1300 mm × 1000 mm tunnel size designed specifically for high-speed automated sorting lines and logistics freight hubs without modifying existing assembly lines. Powered by advanced intelligent visual analysis and density algorithms, it provides efficient high-volume cargo screening with intelligent image analysis and reliable radiation protection for logistics security applications. Widely utilized across express courier sorting centers, logistics warehouses, and transport distribution hubs in Bangladesh, the AT130100B delivers reliable high-volume cargo screening and dependable radiation safety protection.

Key Features

• Spacious High-Speed Tunnel: Features an expansive 1300 mm × 1000 mm tunnel configuration optimized for high-speed sorting lines and large logistics freight.

• Intelligent Threat Detection: Utilizes advanced visual analysis and density algorithms to quickly and accurately identify knives, liquids, and hard-to-penetrate items.

• Advanced Image Processing: Supports color/black and white imaging, local increase, high/low penetration enhancement, super increase, organic/inorganic removal, inverse color, brightening, darkening, gray sweep, zoom, false color, organic enhancement, suspicious item alarm marks, and edge enhancement.

• Comprehensive Diagnostic Tools: Includes POST self-test, multi-level user management, image management, TIP management, curve diagnostics, keyboard diagnostics, and device information queries.

• TIP (Threat Image Projection) Management: Supports customizable insertion of virtual threat items to monitor operator vigilance and generate performance evaluation reports.

• Robust Structural & Safety Design: Equipped with a unique anti-pinch belt design, 3D/4-corner column status indicator lights, a diamond-patterned anti-static conveyor belt, and high-efficiency double-layer lead curtain protection.

Technical Specifications

• Brand: Safeway System

• Model: AT130100B

• Scanner Type: High-Speed Cargo & Logistics X-Ray Inspection System

• Tunnel Size: 1300 mm × 1000 mm

• Conveyor Speed: 1.5 m/s

• Maximum Load Capacity: 200 kg

• Steel Penetration: 43 mm steel plate

• Wire Resolution: Φ0.0787 mm Wire

• Penetration Resolution: Φ0.127 mm Wire

• Spatial Resolution: Horizontal Φ1.0 mm, Vertical Φ1.0 mm

• Single Inspection Dose: <1 μGy

• Boundary Leakage Dose: <0.3 μGy/h

• Maximum Power Consumption: 1 kW

• Working Power: 220 VAC (±10%), 50 ±3 Hz

• Overall Dimensions: 2780 mm (length) × 1617 mm (width) × 1922 mm (height)

Applications

• Courier Sorting Facilities and Express Logistics Hubs

• Automated Parcel Distribution and Conveyor Lines

• Airport Cargo Security and Freight Terminals

• Customs Port Authority and Border Checkpoints

• Industrial Warehouses and Postal Sorting Centers

Conclusion

The Safeway AT130100B High-Speed Cargo X-Ray Scanner combines a large 1300 mm × 1000 mm inspection tunnel, a high-speed 1.5 m/s conveyor system, intelligent image analysis, advanced image processing, and reliable radiation protection to provide efficient cargo screening for logistics centers, courier sorting facilities, airports, customs checkpoints, and freight warehouses across Bangladesh.
