Safeway AT2310 Portable X-Ray Security Inspection Scanner Price in BD | Counter-Terrorism & Anti-Smuggling Solutions

Description

Product Name: Safeway AT2310 Portable X-Ray Security Inspection Scanner Price in BD | Counter-Terrorism & Anti-Smuggling Solutions

Manufacturer: Safeway System

Product Description

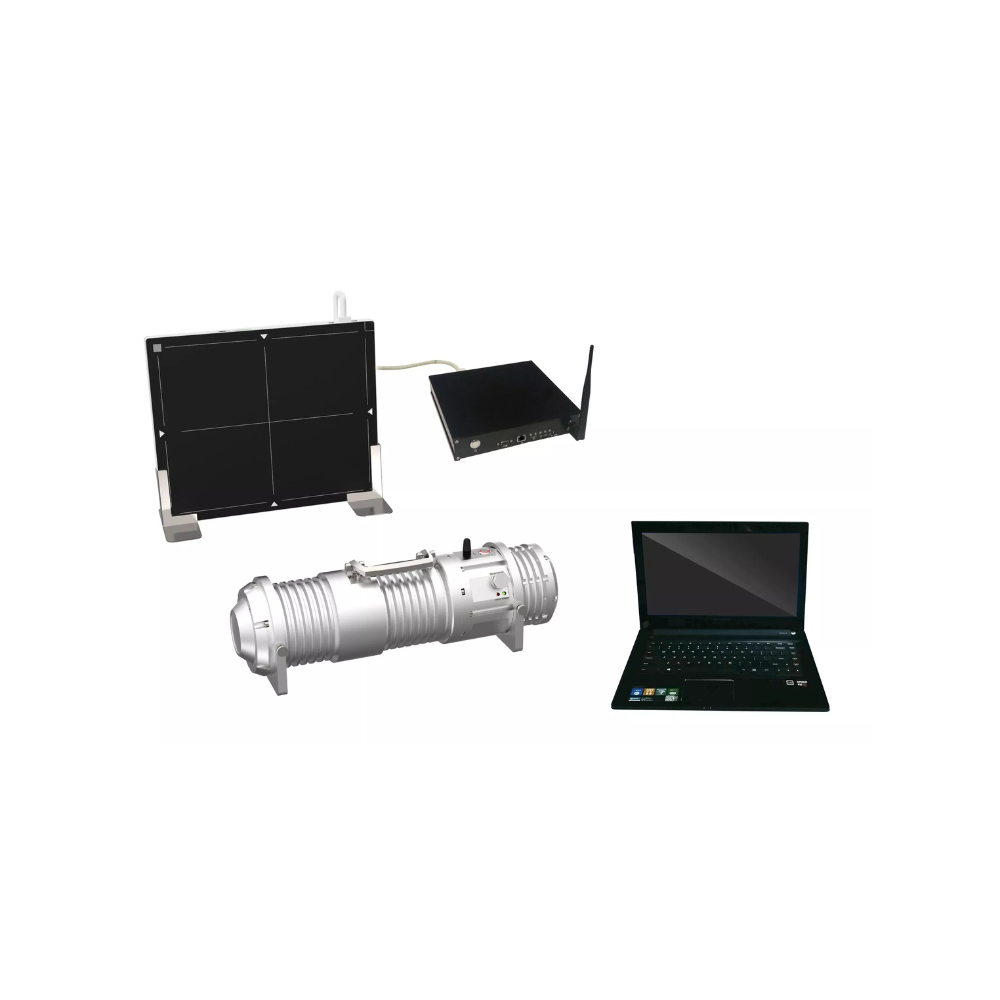

The Safeway AT2310 Portable X-Ray Security Inspection Scanner is a high-performance split portable X-ray system engineered with an amorphous silicon area array imaging board and an ultra-sensitive linear array scanning detector. Utilizing “XRayMobile”—an independently developed data acquisition and image processing system—it delivers ultra-clear imaging with a resolution of 2304×2800, 16-bit gray levels (65536:1 hierarchy), and strong penetration capabilities (up to 60 mm aluminum and 15 mm steel). Featuring wireless connectivity up to 30 meters, quick on-site deployment, and flexible power options, the AT2310 is widely deployed across law enforcement agencies, customs, bomb squads, anti-drug units, and critical infrastructure checkpoints in Bangladesh for rapid threat detection, explosive disposal, and contraband inspection.

Key Features

• Ultra-Clear Portable Imaging: Features amorphous silicon area array technology delivering a 2304×2800 resolution and 16-bit gray levels (65536:1 hierarchy) for exceptional image contrast and clarity.

• Superior Penetration Performance: Capable of penetrating up to 60 mm of aluminum plate and 15 mm of steel plate for heavy-duty contraband and threat detection.

• Large Field of View: Provides a scannable area of up to 460 mm × 384 mm, offering an expansive imaging zone for diverse tactical inspection scenarios.

• Wireless Tactical Operation: Communicates wirelessly over distances of 30 meters or more, ensuring maximum safety, concealment, and flexibility for security personnel during deployment.

• Dual Power & Long Battery Life: Equipped with rechargeable battery support for over 4 hours of continuous operation or up to 400 package scans, alongside AC 110V/220V compatibility for 24-hour uninterrupted work.

• Rugged Mobility: Compact, lightweight, and engineered for rapid on-site assembly, making it ideal for mobile investigations, counter-terrorism, and criminal technology checks.

Technical Specifications

• Brand: Safeway System

• Model: AT2310 Portable X-Ray Security Inspection Scanner

• Scanner Type: Split Portable X-Ray Security Inspection System

• X-Ray Source Tube Voltage: 80 kV – 120 kV (Continuously adjustable)

• X-Ray Source Tube Current: 0.5 mA – 1 mA (Continuously adjustable)

• Cooling Method: Oil cooling

• Panel / Detector Size: L384 mm × W460 mm × H15.2 mm

• Scanning Area: 460 mm × 384 mm

• Detector Type: 0.14 mm CsI crystal line array scanning detector

• Gray Level: 16-bit (65536:1 hierarchy)

• Steel Penetration: 15 mm steel plate

• Aluminum Penetration: 60 mm aluminum plate

• Spatial Resolution: > 43 AWG

• Penetration Resolution: 40 AWG

• Wireless Transmission Distance: 30 meters or more

• Power Supply: AC 110V/220V or built-in rechargeable battery (continuous operation for more than 4 hours)

• Battery Capacity: ≥6600 mAh

• X-Ray Source Weight: 14 kg (including battery)

• X-Ray Source Dimensions: L518 mm × W185 mm × H205 mm

• Working Environment: –15°C to 50°C, $\le 85\%$ relative humidity, 86 kPa to 106 kPa

Applications

• Counter-Terrorism and Bomb Disposal Operations

• Law Enforcement and Criminal Technology Investigations

• Customs Port Authority and Anti-Smuggling Checkpoints

• Anti-Drug Enforcement and Mobile Border Inspections

• Emergency Express Mail and Suspicious Parcel Screening

• Small Factory Sampling and Industrial Non-Destructive Testing

Conclusion

The Safeway AT2310 Portable X-Ray Security Inspection Scanner combines rugged mobility, powerful 120kV  X-ray penetration, and advanced wireless imaging to deliver elite tactical threat detection. Engineered for demanding field environments, law enforcement, and emergency response, it guarantees rapid deployment, uncompromised safety, and precise contraband identification across security operations in Bangladesh.
