Safeway AT5030D Dual-View X-Ray Baggage Scanner Buy Online BD | Advanced Dual-Energy Security Solutions

Description

Product Name: Safeway AT5030D Dual-View X-Ray Baggage Scanner Buy Online BD | Advanced Dual-Energy Security Solutions

Manufacturer: Safeway System

Product Description

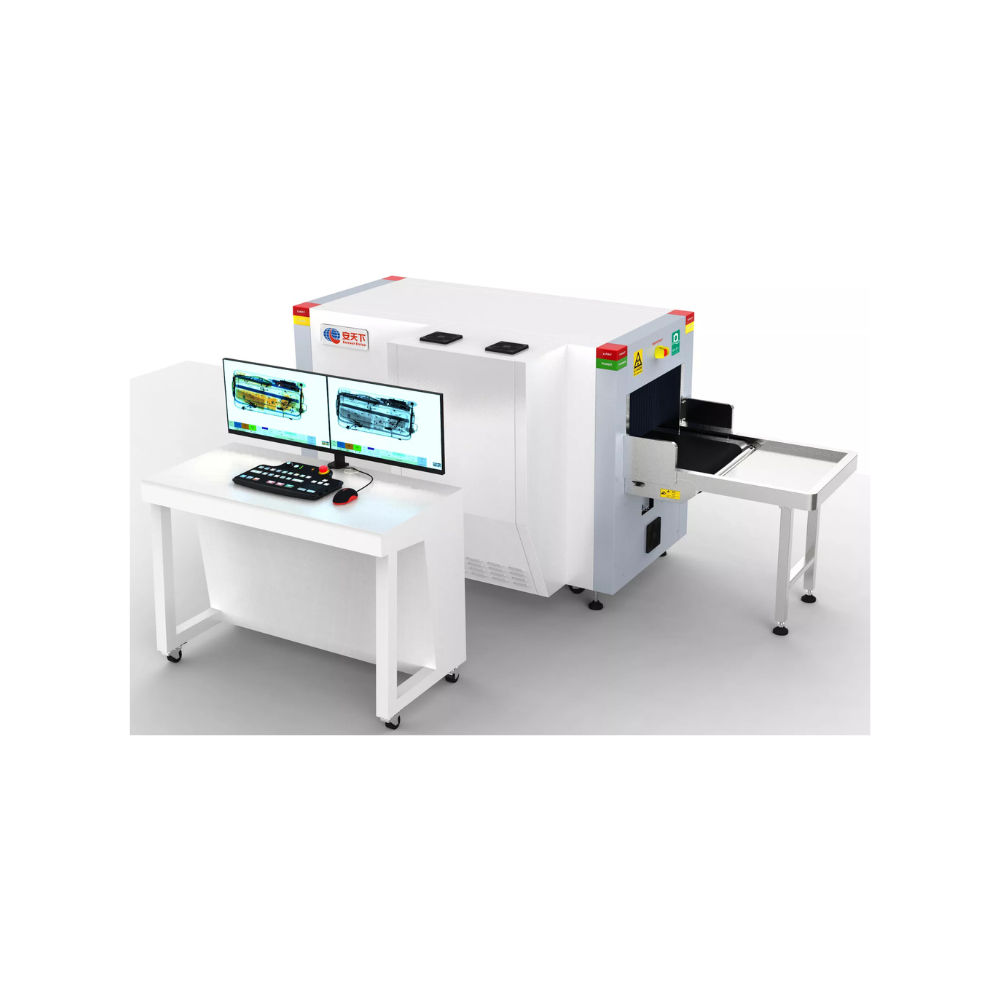

The Safeway AT5030D X-Ray Baggage Scanner is a high-performance dual-view security inspection system engineered to penetrate and examine briefcases, parcels, express mail, hand luggage, and small parcels without unpacking. Powered by a versatile Windows operating system (compatible with Windows XP, Win 7, and Win 10), it features dual-view imaging (Top View and Side View), an Intel Core i3 computer with a 1T hard disk and 4G memory, and an expansive 29-inch ultra-wide LCD monitor (2560×1080 resolution). Widely deployed across government buildings, transport terminals, logistics hubs, courts, schools, and secure corporate facilities in Bangladesh, the AT5030D guarantees superior multi-angle threat detection and high-capacity screening efficiency.

Key Features

• Dual-View Inspection Technology: Features independent Top View and Side View imaging to reduce blind spots and provide comprehensive threat analysis.

• Advanced Dual-Energy Windows Platform: Runs on a flexible Windows environment with an Intel i3 3.3GHz CPU, 1T hard disk, and 4G memory for seamless data management and processing.

• High-Definition Ultra-Wide Display: Includes a professional 29-inch LCD monitor with a high resolution of 2560×1080 pixels for clear, detailed image comparison.

• Extensive Image Storage & Management: Automatically stores up to 50,000 inspection images with support for file querying, opening, printing, and exporting across 6 formats (XF, PNG, BMP, JPEG, TIFF, GIF), plus 30-image pullback recall.

• Comprehensive Diagnostic & TIP Tools: Features automated fault self-checking, component diagnostics, Threat Image Projection (TIP) evaluation management, and multi-level operator security controls.

Technical Specifications

• Brand: Safeway System

• Model: AT5030D

• Scanner Type: Dual-View Dual-Energy X-Ray Baggage & Parcel Inspection System

• Inspection Technology: Dual-View X-Ray Imaging (Top View & Side View)

• X-Ray Generator Anode Voltage: 140 kV (Sealed oil cooling)

• Wire Resolution (Both Views): 40 AWG

• Penetration Resolution (Both Views): 34 AWG

• Spatial Resolution (Both Views): Vertical 0.8 mm, Horizontal 0.8 mm

• Steel Penetration (Both Views): 30 mm

• Conveyor Speed: Around 0.2 m/s

• Conveyor Max Load: 100 kg

• Single Inspection Dose: ≤ 5 µSv (µGy)

• Boundary Leakage Dose: < 1 µSv/h (µGy/h)

• Film Safety: Compliant with ASA/ISO 1600 Film Safety Standards

• Noise Level: No more than 60 dB

• Maximum Power Consumption: 0.8 kW

• Computer Configuration: Intel i3 3.3GHz CPU, 1T Hard Disk, 4G Memory

• Display Monitor: 29-inch ultra-wide LCD monitor with 2560×1080 resolution

• Console & Keyboard: Dedicated console table with specialized security keyboard

• Working Power: AC 220V (+10% to -15%), 50 Hz ±3 Hz

• Unit Weight: 500 kg

• Working Environment: 5°C to 40°C, 0% to 90% relative humidity

Applications

• Government Agencies and High-Security Public Checkpoints

• Transportation Terminals, Airports, and Railway Stations

• Logistics Hubs and Express Mail Sorting Facilities

• Courts, Procuratorates, Prisons, and Embassies

• Schools, Universities, and Hospitals

• Exhibition Halls, Shopping Malls, and Premium Venues

Conclusion

The Safeway AT5030D Dual-View X-Ray Baggage Scanner combines a robust dual-view scanning architecture, advanced dual-energy imaging, and an ultra-wide display configuration to deliver professional-grade security screening. Engineered for high-security checkpoints and demanding access control environments, it guarantees uncompromised threat identification and reliable operational compliance across facilities in Bangladesh.
