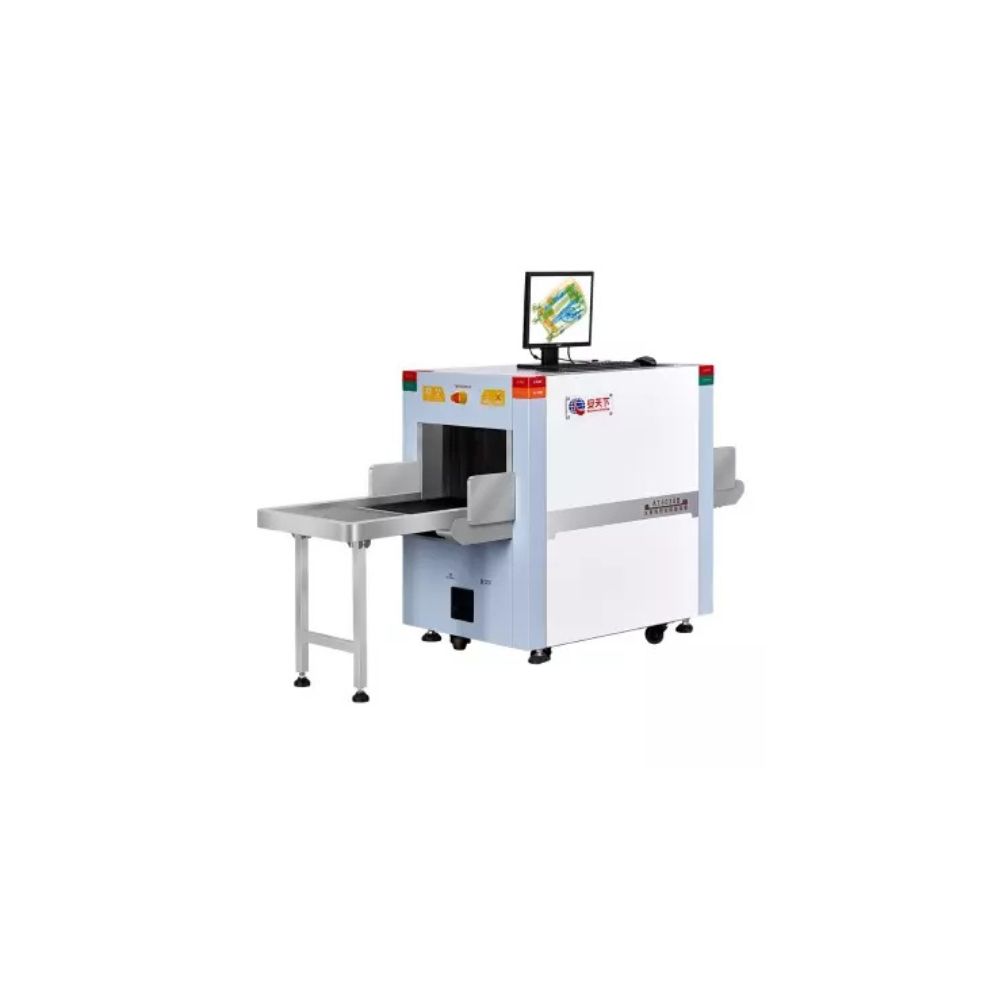

Safeway AT6040B X-Ray Baggage Scanner Supplier in Bangladesh | 60×40 cm Security Scanner

Description

Product Name: Safeway AT6040B X-Ray Baggage Scanner Supplier in Bangladesh | 60×40 cm Security Scanner

Manufacturer: Safeway System

Product Description

The Safeway AT6040B X-Ray Baggage Scanner is a high-performance security inspection system featuring a 60×40 cm tunnel size, designed specifically for non-destructive screening of small baggage, parcels, handbags, and briefcases. Powered by a flexible Windows processing environment (compatible with Windows XP, Win 7, and Win 10), an Intel Core i3 3.3GHz processor, 1T hard disk, and 4G memory, it delivers detailed dual-energy imaging on a 21.5-inch LCD monitor with 1920×1080 resolution. Widely utilized across retail malls, subways, schools, and corporate checkpoints, the AT6040B provides reliable 38 mm steel penetration and advanced threat detection capabilities in Bangladesh.

Key Features

• Compact Tunnel Design: Features a 60×40 cm tunnel opening optimized for scanning small parcels, hand luggage, and suitcases.

• Flexible Windows Platform: Runs on a versatile Windows environment backed by an Intel i3 CPU, 1T hard disk, and 4G memory for seamless data handling.

• High-Definition Display: Equipped with a professional 21.5-inch LCD monitor offering crisp 1920×1080 resolution for detailed threat identification.

• Extensive Image Management: Automatically stores up to 50,000 inspection images, supports 30-image pullback recall, and exports data across 6 common formats (XF, PNG, BMP, JPEG, TIFF, GIF).

• Advanced Diagnostic & TIP Tools: Includes automated self-diagnosis, component testing, Threat Image Projection (TIP) evaluation management, and operator training features.

Technical Specifications

• Brand: Safeway System

• Model: AT6040B

• Scanner Type: Dual-Energy X-Ray Baggage & Parcel Inspection System

• Tunnel Size: 60 cm (Width) × 40 cm (Height)

• X-Ray Generator Anode Voltage: 160 kV (Sealed oil cooling)

• Wire Resolution: 38 AWG

• Penetration Resolution: 34 AWG

• Spatial Resolution: Vertical 1.0 mm, Horizontal 1.0 mm

• Steel Penetration: 38 mm

• Conveyor Speed: Around 0.2 m/s

• Conveyor Max Load: 150 kg

• Single Inspection Dose: ≤ 4.5 µSv (µGy)

• Boundary Leakage Dose: < 1 µSv/h (µGy/h)

• Noise Level: No more than 60 dB

• Maximum Power Consumption: 0.8 kW

• Computer Configuration: Intel i3 3.3GHz CPU, 1T Hard Disk, 4G Memory

• Display Monitor: 21.5-inch LCD monitor with 1920×1080 resolution

• Console & Keyboard: Dedicated Keyboard (No Console Table)

• Working Power: AC 220V (+10% to -15%), 50 Hz ±3 Hz

• Unit Weight: 455 kg

• Working Environment: 5°C to 40°C, 0% to 90% relative humidity

• Film Safety: Compliant with ASA/ISO 1600 Film Safety Standards

Applications

• Shopping Malls and Commercial Centers

• Subway Stations and Public Transport Terminals

• Schools, Universities, and Educational Institutions

• Factories, Industrial Plants, and Warehouses

• Government Buildings and Public Checkpoints

• Hotels, Exhibition Halls, and Entertainment Venues

Conclusion

The Safeway AT6040B X-Ray Baggage Scanner delivers exceptional security screening performance through its reliable 160 kV X-ray generator, 38 mm steel penetration, and robust Windows computing core. Built for high-traffic access control points, it ensures precise threat detection and operational compliance across facilities in Bangladesh.
