Safeway AT8065A X-Ray Baggage Scanner Best Price in Bangladesh | 80 × 65 cm Linux Security Scanner

Description

Product Name: Safeway AT8065A X-Ray Baggage Scanner Best Price in Bangladesh | 80 × 65 cm Linux Security Scanner

Manufacturer: Safeway System

Product Description

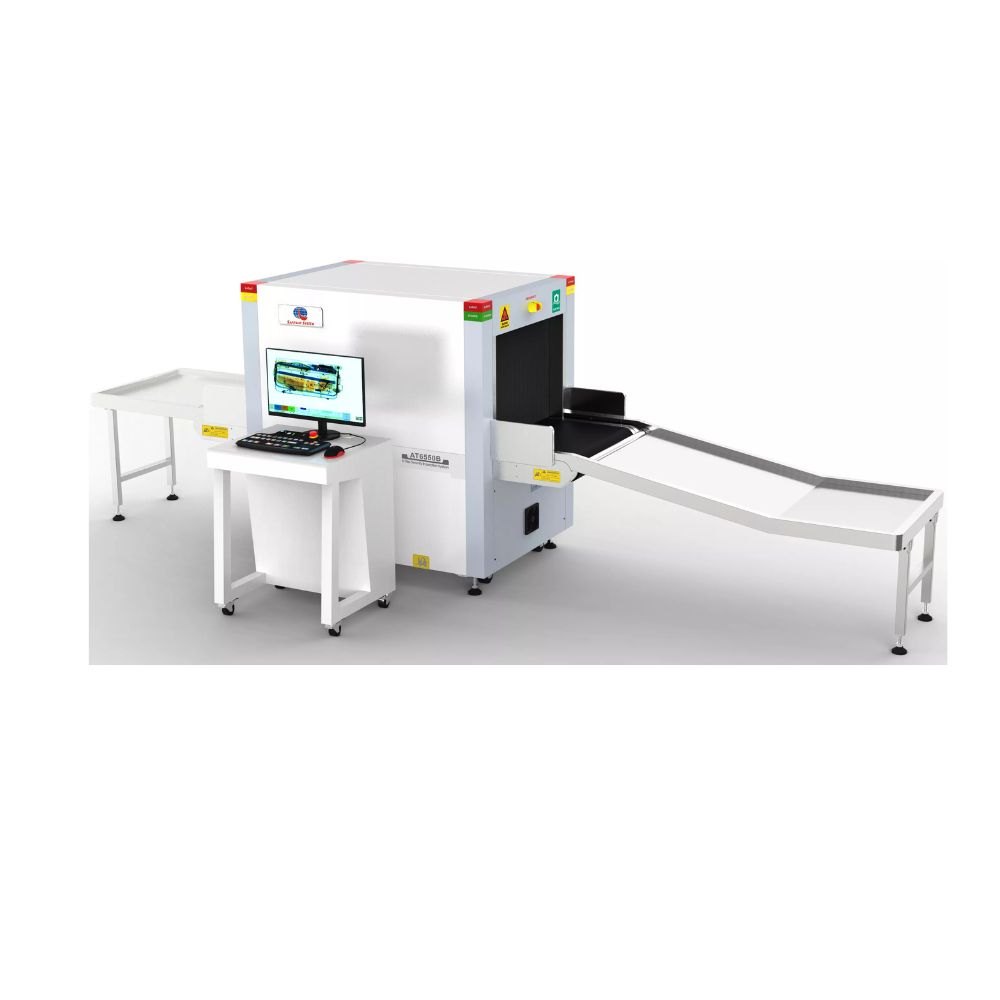

The Safeway AT8065A X-Ray Baggage Scanner is a specialized single-energy security inspection system featuring an 80×65 cm tunnel size, designed for non-destructive screening of larger baggage, parcels, and cargo. Running on an embedded Linux operating system with an ARM CPU, this model differs from Windows-based variants to deliver continuous, heavy-duty operation for up to 10,000 hours. It is widely deployed across government offices, transport hubs, logistics depots, and commercial facilities in Bangladesh for reliable threat detection and parcel screening.

Key Features

• Linux Operating Platform: Powered by a stable Linux system and ARM CPU with digital signal processing for dependable, continuous operation up to 10,000 hours.

• Robust Image & Processing Tools: Offers high-penetration imaging capabilities, multi-mode image enhancement, real-time diagnostic curves, and storage for up to 10,000 scanned images.

• Comprehensive Threat & TIP Management: Features customizable alarm systems, Threat Image Projection (TIP) reporting and management, and multi-level user authority controls.

• Operational Maintenance Utilities: Includes automated power-on self-test (POST) diagnostics, probe/ray source configurations, file management exports, and system upgrade support.

Technical Specifications

• Brand: Safeway System

• Model: AT8065A

• Scanner Type: X-Ray Baggage Inspection System (Single Energy)

• Tunnel Size: 80 cm (Width) × 65 cm (Height)

• X-Ray Generator Anode Voltage: 100 kV (Sealed Oil Cooling)

• Wire Resolution: Typical 36 AWG

• Penetration Resolution: Typical 24 AWG

• Spatial Resolution: Vertical 1.6 mm, Horizontal 1.6 mm

• Steel Penetration: Typical 12 mm

• Conveyor Speed: Around 0.2 m/s

• Conveyor Max Load: 200 kg

• Single Inspection Dose: ≤ 3.0 µSv (µGy)

• Boundary Leakage Dose: < 1.0 µSv/h (µGy/h)

• Noise Level: Less than 60 dB

• Maximum Power Consumption: 1.0 kW

• Hardware Configuration: ARM CPU (imx6 mainboard), 1G Running Memory, 8G Storage Memory

• Operating System: Linux

• Display Monitor: 21.5-inch LCD monitor with 1920 × 1080 resolution

• Console & Keyboard: Dedicated security keyboard with console table

• Working Power: AC 220V (+10% to -15%), 50 Hz ±3 Hz

• Unit Weight: 600 kg

• Working Environment: 5°C to 40°C, 0% to 90% relative humidity

• Film Safety: Compliant with ASA/ISO 1600 Film Safety Standard

Applications

• Government Agencies and Courts

• Railway Stations, Subways, and Transit Hubs

• Prisons, Procuratorates, and Embassies

• Schools, Universities, and Hospitals

• Factories, Industrial Plants, and Logistics Hubs

• Shopping Malls, Exhibition Halls, and Entertainment Venues

Conclusion

The Safeway AT8065A X-Ray Baggage Scanner delivers dependable, continuous security screening powered by a robust Linux architecture and a 100 kV X-ray generator. Built with an 80×65 cm tunnel and comprehensive diagnostic and management tools, it provides a stable and secure solution for screening larger parcels and baggage across facilities in Bangladesh.
