Product Name: Safeway HT5030A X-Ray Baggage Scanner Supplier in Bangladesh | Linux Security Scanner

Manufacturer: Safeway System

Product Description

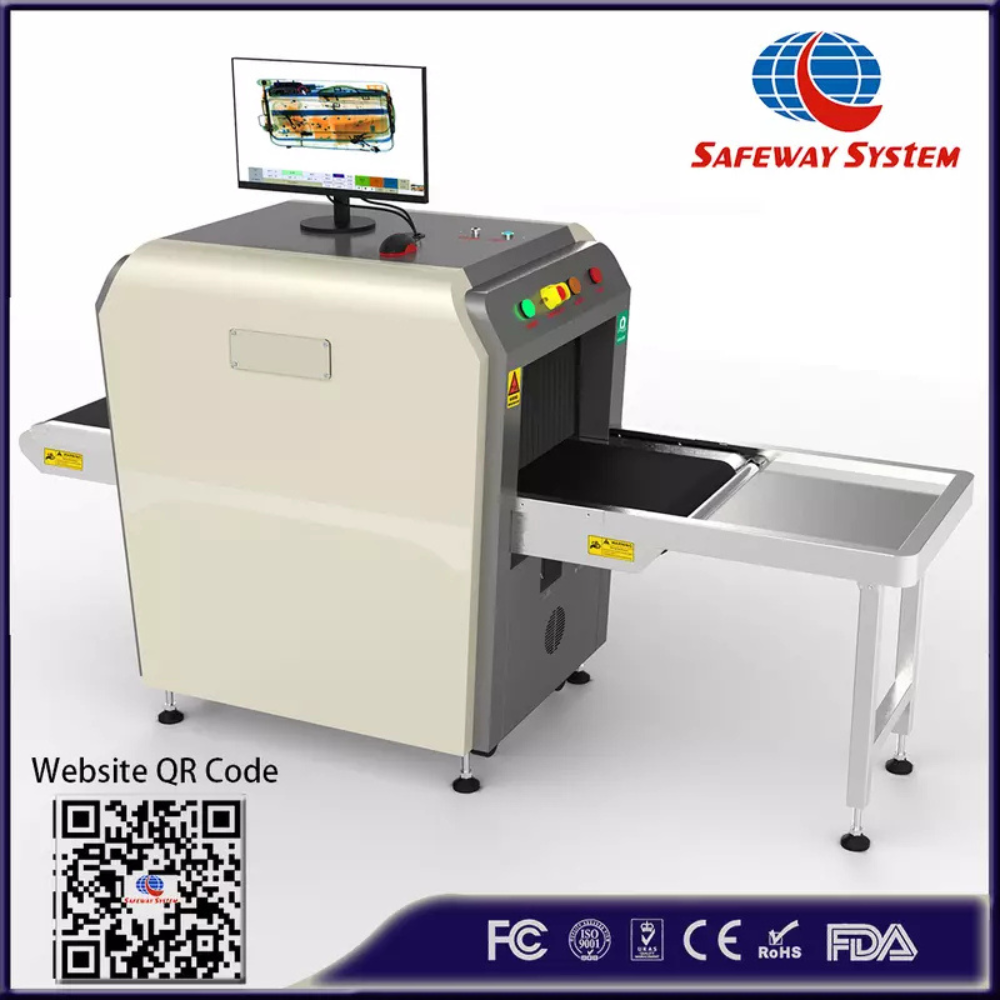

The Safeway HT5030A X-Ray Baggage Scanner is a security inspection system featuring a compact tunnel size, sharing identical technical specifications with the AT5030A model within a custom OEM housing shell. Engineered for non-destructive screening of briefcases, parcels, express mail, hand luggage, and small parcels across government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues, it belongs to the Linux product family. Safeway System develops and manufactures its own hardware and software technologies with proprietary designs, continuous research, and ongoing product innovation.

Product Highlights

• Linux operation system

• ARM CPU

• Digital signal and processor

• Continuous hard work for 10000 hours

• Energy saving design

• High penetration

• Good quality images

Advantages

• Comprehensive leadership: First all-digital security inspection machine of China: From signal detection to image display, all signals are transmitted and processed digitally, with strong anti-interference ability and offer high definition scanned image.

• Unique system: With embedded Linux operating system, multi-core ARM, the system features a simple architecture, low power consumption, energy saving and environmentally friendly, meanwhile it has a real-time status monitoring function to keep abreast of the device work process.

• Safety and environmentally friendly: The equipment meets safety and environmental standards.

• Stable and reliable: The production process is strictly controlled in accordance with the ISO9001 quality management system. Through rigorous high-low temperature experiments, wet heat experiments and vibration experiments, it is certified that the product runs continuously for more than 10,000 hours without failure.

Equipment Functions

• Imaging process functions: Color/BW, Local Enhancement, Super Enhancement of High Penetrating Power, Enhancement of low Penetrating Power, Super Enhancement, Negative, Brightening, Darkening, Gray-Level scan, Zoom in and out, Previous/Next.

• System functions: Power-on self-test, multi-level user management, image management, TIP management, curve diagnosis, keyboard diagnosis, device information query, multi-format image export, OSD operation function, image mirroring, 1-16 times continuous magnification, magnifying glass, Operator training, accurate positioning of package images, empty channel reminders, remote operation software, one-button shutdown, and intelligent roller engine (optional).

Technical Specifications

• Brand: Safeway System

• Model: HT5030A

• Wire Resolution: Typical AWG38

• Penetration Resolution: Typical AWG34

• Spatial Resolution: Vertical: 1.3 mm, Horizontal: 1.3 mm

• Penetration: Typical 6 mm

• X-Ray dosage each inspection: ≤ 3.0 µSv (uGy)

• Boundary Leakage: ≤ 2.0 µSv/h (uGy/h)

• Noise Level: < 60 dB

• Conveyor speed: 0.2 m/s

• Conveyor max load: 200 kg

• Power consumption: 0.5 kW

• Safety performance requirements: Meet the requirements of GB15208.1-2005

• EMC requirements: Meet the requirements of GB15208.1-2005

• Electrical safety: Meet the requirements of GB15208.1-2005

• Environmental applicability: Meet the requirements of GB15208.1-2005

• Leakage current: ≤ 5.0 mA

• Film Safety: Guarantee ASA/ISO 1600 Film

• Weight: 250 kg

• Operation temperature/Humidity: 5°C–40°C / 0%–90%

• Storage temperature/Humidity: -20°C–60°C / 10%–90%

• Atmospheric pressure: 86 kPa–106 kPa

• Operation Power: AC 220V (±10%-15%) 50±3 Hz

• Operation system: LINUX

• X-ray generator: 80 kV, oil cooling, from bottom to top

• Electric roller: DGBL-76-380L

• Computer: Hard drive: 500G, Storage: 1G

• Monitor: 21.5-inch LED screen, resolution: 1280×1024 pixels

• Operation console: Single screen console

Applications

• Government Agencies and Courts

• Transportation and Logistics Hubs

• Prisons and Embassies

• Factories, Schools, and Hospitals

• Gymnasiums, Exhibition Halls, and Entertainment Venues

Conclusion

The Safeway HT5030A X-Ray Baggage Scanner provides reliable dual-energy security screening with a compact tunnel size, embedded Linux operating system, multi-core ARM CPU, and dependable performance for baggage and parcel inspection across Bangladesh.
