Safeway HT6550 X-Ray Baggage Scanner Best Price in Bangladesh | 65 × 50 cm Linux Security Scanner

Description

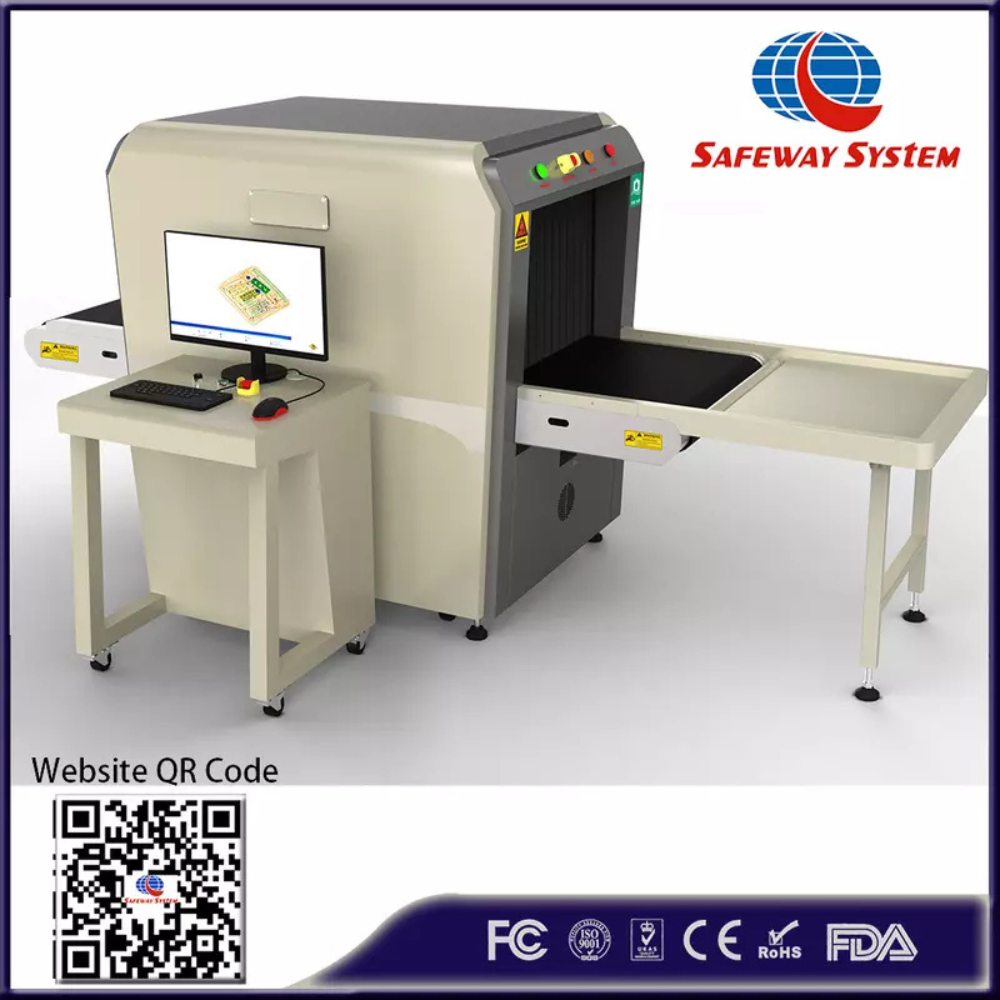

Product Name: Safeway HT6550 X-Ray Baggage Scanner Best Price in Bangladesh | 65 × 50 cm Linux Security Scanner

Manufacturer: Safeway System

Product Description

The Safeway HT6550 X-Ray Baggage Scanner is a middle-size security inspection system featuring a 65×50 cm tunnel size, custom-designed in an outer housing shell while sharing identical technical specifications with the TH6550 model. Running on an embedded Linux operating system with multi-core ARM architecture, this system offers high-penetration imaging and continuous operation for over 10,000 hours without failure. It is widely deployed across hotels, embassies, government offices, transport hubs, and commercial facilities in Bangladesh for reliable baggage, parcel, and luggage screening.

Key Features

• Linux Operating Platform: Powered by an embedded Linux system and multi-core ARM CPU, delivering low power consumption, eco-friendly performance, and continuous operation up to 10,000 hours.

• All-Digital Signal Processing: Features China’s advanced digital transmission from signal detection to image display, ensuring strong anti-interference capabilities and high-definition scanned outputs.

• Comprehensive Image Processing: Equipped with color/black-and-white modes, local enhancement, high and low penetration enhancements, inverse color, and digital zoom functions.

• Robust Management Utilities: Includes multi-level user management, Threat Image Projection (TIP) management, self-diagnostics, curve diagnosis, and multi-format image exporting.

Technical Specifications

• Brand: Safeway System

• Model: HT6550

• Scanner Type: X-Ray Baggage Inspection System (Linux Family)

• Tunnel Size: 65 cm (Width) × 50 cm (Height)

• X-Ray Generator: 140 kV, Sealed Oil Cooling (Bottom-to-Top)

• Wire Resolution: Typical AWG 40

• Penetration Resolution: Typical AWG 32

• Spatial Resolution: Vertical 1.0 mm, Horizontal 1.0 mm

• Steel Penetration: Typical 30 mm

• Organic Matter Resolution: 1–120 mm

• Grayscale and Mixture Resolution: 1–40 mm

• Inorganic Resolution: 0.2–14 mm

• Conveyor Speed: 0.2 m/s

• Conveyor Max Load: 180 kg

• X-Ray Dosage per Inspection: ≤ 2.5 µSv (uGy)

• Boundary Leakage: ≤ 0.5 µSv/h (uGy/h)

• Noise Level: < 60 dB

• Power Consumption: 0.5 kW

• Computer Configuration: 500 GB Hard Drive, 1 GB RAM

• Operating System: Linux

• Display Monitor: 21.5-inch LED screen with 1280 × 1024 pixel resolution

• Console & Keyboard: Single screen console with dedicated security keyboard

• Working Power: AC 220V (±10%-15%), 50±3 Hz

• Unit Weight: 450 kg

• Working Environment: 5°C to 40°C, 0% to 90% relative humidity

• Film Safety: Guarantee ASA/ISO 1600 Film

Applications

• Hotels and Embassies

• Government Agencies and Courts

• Railway Stations, Subways, and Transit Hubs

• Prisons and Procuratorates

• Schools, Universities, and Hospitals

• Shopping Malls, Gymnasiums, and Exhibition Halls

Conclusion

The Safeway HT6550 X-Ray Baggage Scanner delivers dependable, continuous security screening powered by an advanced Linux architecture and a 140 kV X-ray generator. Built with a 65 × 50 cm tunnel size and comprehensive diagnostic tools, it provides a stable and secure solution for screening parcels and baggage.

Contact Us

For technical documentation, official quotation, or project consultation, please contact our team:

• Phone: +8801737118246

• Email: [email protected]
