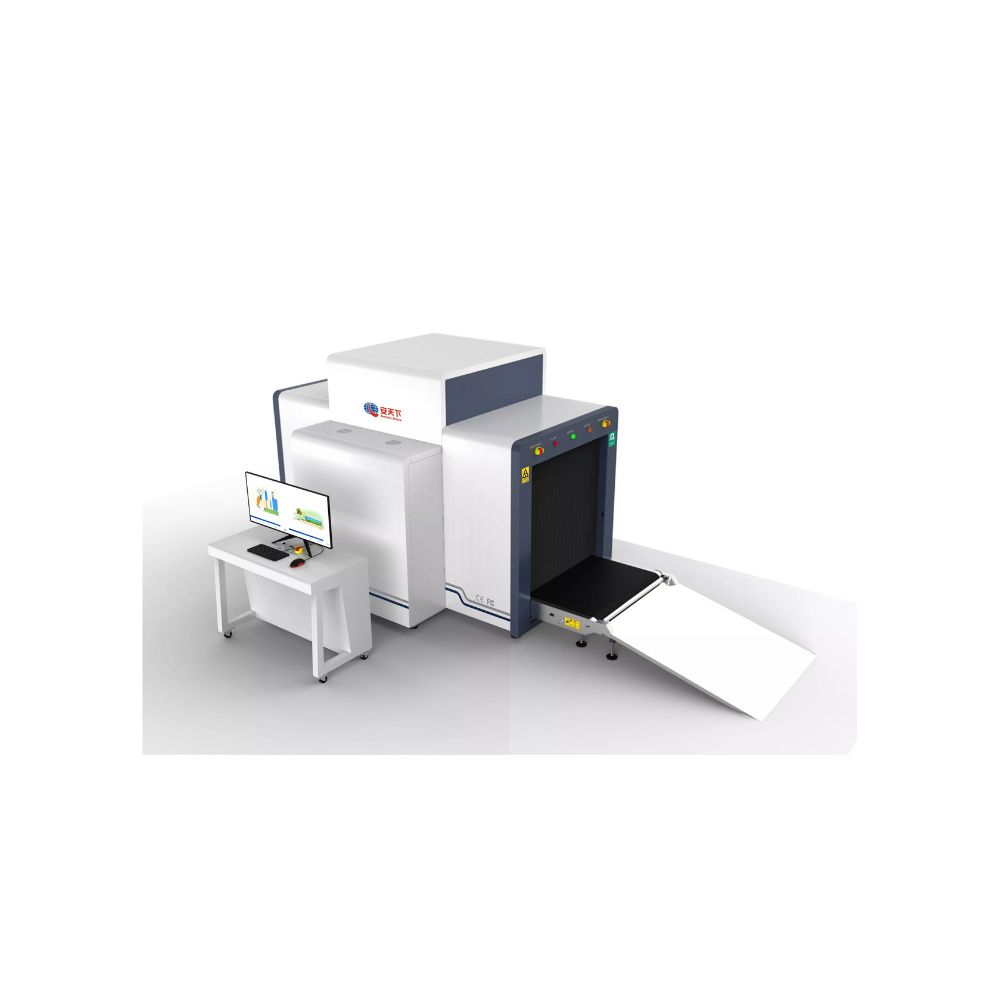

Safeway TH100100D Dual View X-Ray Baggage Scanner Price in Bangladesh | Cargo & Luggage Inspection Solutions

Description

Product Name: Safeway TH100100D Dual View X-Ray Baggage Scanner Price in Bangladesh | Cargo & Luggage Inspection Solutions

Manufacturer: Safeway System

Product Description

The Safeway TH100100D Dual View X-Ray Baggage Scanner is an advanced, high-capacity security inspection system engineered for screening large baggage, parcels, and cargo without unpacking. Featuring dual-view X-ray imaging technology driven by two independent generators, it provides comprehensive top-view and side-view perspectives to eliminate blind spots caused by item stacking. Designed for demanding environments such as airports, logistics hubs, customs, railway stations, and high-security government facilities across Bangladesh, the TH100100D ensures precise material classification, intelligent threat detection, and reliable heavy-duty operation.

Key Features

• Dual-View Imaging Technology: Utilizes two independent X-ray generators to capture simultaneous top and side perspectives, enhancing inspection capability for complex or overlapping cargo.

• High-Capacity Cargo Design: Features a spacious 100 cm x 100 cm tunnel size and a robust 200 kg conveyor maximum load capacity tailored for oversized luggage and industrial parcels.

• Advanced Threat Detection: Supports drugs and explosives inspection together with intelligent material classification.

• Massive Image Storage: Powered by a Linux operating system with 16GB running memory and a 256GB storage memory, capable of storing up to 300,000 scanned images.

• Comprehensive Image Processing: Offers advanced diagnostic tools including 1-64x stepless zoom, edge enhancement, high/low penetration modes, and suspicious object marking.

• Robust Self-Diagnosis & POST: Features automated power-on self-testing with fault detection displays for emergency stops, side panel status, and acquisition system performance.

• TIP (Threat Image Projection) Management: Supports customizable insertion of fictional threat items to monitor operator vigilance and generate performance evaluation reports.

• User Authority Management: Multi-level user login security with customizable operation permissions, detailed activity logs, and bilingual system support.

Technical Specifications

• Brand: Safeway System

• Model: TH100100D

• Scanner Type: Dual View X-Ray Baggage & Cargo Inspection System

• Tunnel Size: 1000 mm (W) x 1000 mm (H)

• Inspection Technology: Dual-Energy Dual-View X-Ray Imaging (2 Generators)

• X-Ray Generator Anode Voltage: 160 kV (Sealed oil cooling)

• Top View Performance: Wire resolution 40 AWG, Penetration resolution 30 AWG, Steel penetration 34 mm

• Side View Performance: Wire resolution 40 AWG, Penetration resolution 32 AWG, Steel penetration 36 mm

• Conveyor Speed: Around 0.2 m/s

• Conveyor Maximum Load: 200 kg

• Film Safety: Compliant with ASA/ISO 1600 Film Safety Standards

• Noise Level: No more than 60 dB

• Maximum Power Consumption: 1.0 kW

• Operating System: Linux (16GB RAM, 256GB Storage)

• Display Monitor: 34-inch LCD monitor with a resolution of 3440 x 1440

• Working Power: AC 220V (+10% to -15%), 50 Hz $\pm$ 3 Hz

• Unit Weight: 1300 kg

• Working Environment: 5°C to 40°C, 0% to 90% relative humidity

Applications

• Airports and Aviation Cargo Terminals

• Logistics and Express Delivery Hubs

• Railway and Bus Stations

• Customs and Port Authority Checkpoints

• Government Agencies and Courts

• Prisons and Detention Centers

• Embassies and Key Infrastructure

• Industrial Factories and Warehouses

Conclusion

The Safeway TH100100D Dual View X-Ray Baggage Scanner combines powerful dual-generator imaging, a spacious cargo tunnel, and advanced Linux-based software management to deliver exceptional security screening. Designed for high-volume inspection points, it supports efficient security inspection and reliable baggage screening across commercial and government facilities.
