Safeway TH6550 X-Ray Baggage Scanner Buy Online BD | 65 × 50 cm Security Scanner

Description

Product Name: Safeway TH6550 X-Ray Baggage Scanner Buy Online BD | 65 × 50 cm Security Scanner

Manufacturer: Safeway System

Product Description

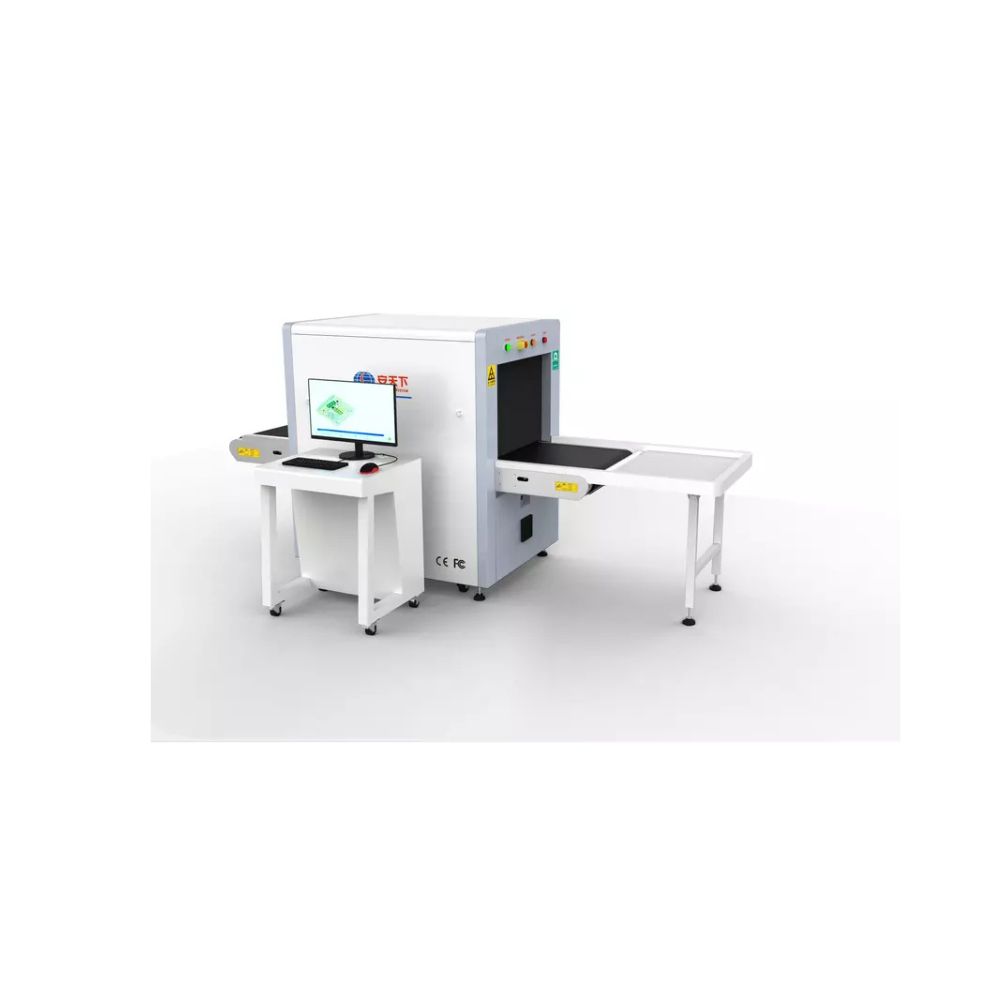

The Safeway TH6550 X-Ray Baggage Scanner is an advanced security inspection system designed for non-destructive screening of small baggage, parcels, suitcases, and handbags. Powered by an embedded Linux operating system and an ARM CPU (IMX6 mainboard) with digital signal processing, the TH6550 delivers superior performance with a 140 kV sealed oil-cooled X-ray generator and an impressive 30 mm steel penetration capability. Widely deployed across shopping malls, subways, schools, factories, and commercial infrastructures in Bangladesh, it combines continuous heavy-duty reliability (over 10,000 hours of operation) with high-definition imaging on a 21.5-inch LCD monitor.

Key Features

• Embedded Linux Architecture: Operates on a stable, low-power Linux system backed by an ARM CPU (IMX6 mainboard) and digital signal processors for robust anti-interference capability.

• High-Performance Penetration: Features a powerful 140 kV sealed oil-cooled X-ray generator delivering up to 30 mm steel penetration and 40 AWG wire resolution.

• Continuous High-Reliability Operation: Certified for heavy-duty, continuous hard work for over 10,000 hours without failure in demanding environments.

• Extensive Image Processing & Storage: Supports 10,000 image storage capacity, 30-image pullback review, continuous zoom, and multi-mode organic/inorganic color enhancements.

• Comprehensive Diagnostic & TIP Tools: Equipped with automated power-on self-tests (POST), real-time curve diagnostics, component troubleshooting, and Threat Image Projection (TIP) management.

Technical Specifications

• Brand: Safeway System

• Model: TH6550

• Scanner Type: Single-Energy X-Ray Baggage & Parcel Inspection System

• Tunnel Size: 65 cm (Width) × 50 cm (Height)

• X-Ray Generator Anode Voltage: 140 kV (Sealed Oil Cooling)

• Wire Resolution: 40 AWG

• Penetration Resolution: 32 AWG

• Spatial Resolution: Vertical 1.0 mm, Horizontal 1.0 mm

• Steel Penetration: 30 mm

• Conveyor Speed: Around 0.2 m/s

• Conveyor Max Load: 200 kg

• Single Inspection Dose: ≤ 2.5 µSv (µGy)

• Boundary Leakage Dose: < 1 µSv/h (µGy/h)

• Noise Level: No more than 60 dB

• Maximum Power Consumption: 0.8 kW

• Computer Configuration: IMX6 Mainboard, Linux OS, 1G RAM, 8G Storage Memory

• Display Monitor: 21.5-inch LCD monitor with 1920×1080 resolution

• Console & Keyboard: Console table with dedicated security keyboard

• Working Power: AC 220V (+10% to -15%), 50 Hz ±3 Hz

• Unit Weight: 740 kg

• Working Environment: 5°C to 40°C, 0% to 90% relative humidity

• Film Safety: Compliant with ASA/ISO 1600 Film Safety Standards

Applications

• Shopping Malls and Commercial Complexes

• Subway and Metro Stations

• Schools, Universities, and Educational Institutions

• Industrial Factories and Manufacturing Plants

• Government Agencies, Courts, and Public Offices

• Hotels, Convention Centers, and Entertainment Venues

Conclusion

The Safeway TH6550 X-Ray Baggage Scanner provides exceptional security screening efficiency through its robust Linux architecture, 140 kV sealed oil-cooled X-ray generator, and 30 mm steel penetration depth. Built for high-traffic checkpoints, it ensures precise threat detection and long-term durability across institutional and commercial facilities in Bangladesh.
