Description

Product Name: Safeway ZA10080A X-Ray Baggage Scanner Buy Online BD| Large Cargo Security Scanner

Manufacturer: Safeway System

Product Description

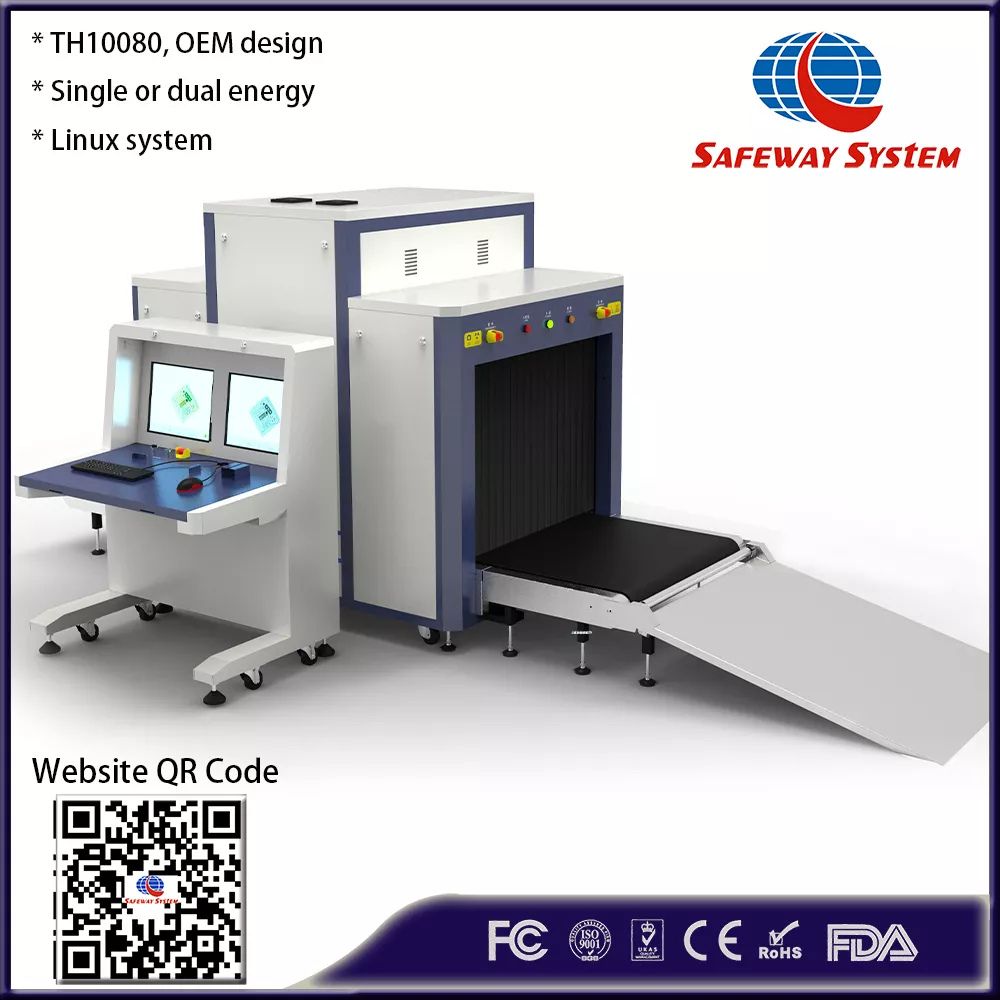

The Safeway ZA10080A OEM X-Ray Baggage Scanner is an advanced security inspection system featuring a 100×80 cm tunnel size, designed sharing identical technical specifications with the AT10080A model within a custom OEM housing shell. Engineered for non-destructive screening of big cargo, suitcases, and large parcels, it is powered by an embedded Linux operating system and a multi-core ARM CPU with digital signal processing. Suitable for transport terminals, customs facilities, logistics hubs, and high-security checkpoints, the ZA10080A ensures reliable 100 kV X-ray generation, high-definition imaging, and continuous operational durability across Bangladesh.

Key Features

• Large Tunnel Opening: Features a spacious 100×80 cm tunnel size optimized specifically for screening large suitcases, cargo parcels, and baggage.

• Embedded Linux Architecture: Operates on a stable multi-core ARM CPU platform with digital signal processing for low power consumption and robust anti-interference capability.

• Continuous High-Reliability Operation: Certified through rigorous environmental testing to run continuously for over 10,000 hours without failure.

• Comprehensive Image Processing: Provides multiple image enhancement modes including color/black-and-white, local enhancement, high/low penetration boost, and 1–16 times continuous zoom.

• Extensive Management & TIP Tools: Features automated power-on self-tests, multi-level user management, Threat Image Projection (TIP) management, and multi-format image export options.

Technical Specifications

• Brand: Safeway System

• Model: ZA10080A (OEM version of AT10080A)

• Scanner Type: X-Ray Cargo & Baggage Inspection System

• Tunnel Size: 100 cm (Width) × 80 cm (Height)

• X-Ray Generator Anode Voltage: 100 kV (Top-to-bottom, oil cooling)

• Wire Resolution: Typical 36 AWG

• Penetration Resolution: Typical 24 AWG

• Spatial Resolution: Vertical 2.0 mm, Horizontal 2.0 mm

• Steel Penetration: Typical 12 mm

• Conveyor Speed: 0.2 m/s

• Conveyor Max Load: 200 kg

• Single Inspection Dose: ≤ 2.5 µSv (µGy)

• Boundary Leakage Dose: ≤ 0.5 µSv/h (µGy/h)

• Noise Level: Less than 60 dB

• Maximum Power Consumption: 1.0 kW

• Computer Configuration: Embedded Linux Operating System, ARM CPU, 500G Hard Drive, 1G Memory

• Display Monitor: 17-inch LED screen with 1280 × 1024 resolution

• Console & Keyboard: Single screen console with specialized security keyboard

• Working Power: AC 220V (+10% to -15%), 50 Hz ±3 Hz

• Unit Weight: 760 kg

• Working Environment: 5°C to 40°C, 0% to 90% relative humidity

• Film Safety: Guarantee ASA/ISO 1600 standard film

Applications

• Transport Terminals and Railway Stations

• Customs Inspection Facilities and Checkpoints

• Logistics Hubs and Express Cargo Warehouses

• Government Agencies and Public Buildings

• Factories, Industrial Plants, and Secure Facilities

• Exhibition Halls and Large Public Venues

Conclusion

The Safeway ZA10080A X-Ray Baggage Scanner delivers reliable, large-tunnel security screening through its stable Linux-ARM architecture and durable 200 kg conveyor capacity. Built to handle heavy workloads in demanding checkpoints, it ensures precise threat identification and long-term operational compliance across facilities in Bangladesh.
