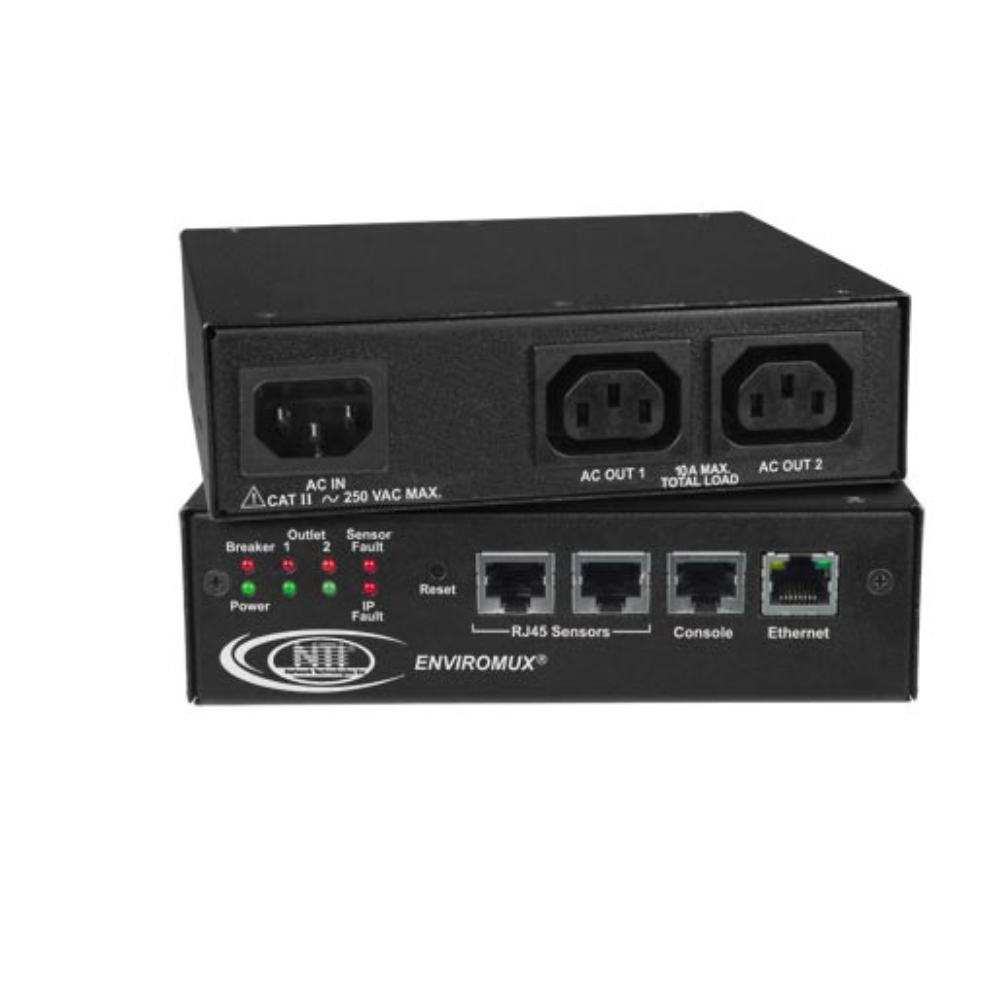

Secure Remote Power Control Unit – IPDU-S2

Description

Product Name: Secure Remote Power Control Unit – IPDU-S2

Manufacturer: NTI (Network Technologies Inc)

Product Overview

The ENVIROMUX® IPDU-S2 is a secure remote power control unit designed to allow users to remotely reboot and control power (on/off) to two servers or other powered devices from any location. Users can manage the unit via a secure web interface, RS232, SSH, or Telnet, ensuring flexible and reliable control of unresponsive equipment.

Key Features

• Flexible Power Management: Three operating modes for power control:

  • Manual: Select the outlet and turn power on/off.

  • Scheduled: Set specific date, time, and duration for a power cycle.

  • Associated: Automatically power a device on/off when a sensor goes out of range of a user-defined threshold.

• Comprehensive Security: Features HTTPS, SSHv2, SSLv3, TLS, LDAPv3, AES 256-bit encryption, 16-character username/password authentication, and user account restricted access rights.

• Advanced Network Configuration: Supports up to 3 additional IP aliases for remote control across different networks. Configure via Web interface or Command Line Interface (CLI) without the need for custom scripts.

• Integrated Environmental Monitoring: Supports two environmental sensors, such as temperature/humidity and liquid detection. Can be configured to shut down power automatically when environmental threats are detected.

• IP Device Monitoring: Monitors (pings) up to eight IP network devices. Unresponsive devices can trigger the unit to power on, off, or reboot connected equipment.

• Relay Support: Features Normally Open (NO) relay contacts for integrated control.

• Alerting & Integration: Sends alert notifications via email, syslog, LEDs, Web page, and SNMP. The unit integrates seamlessly with open-source monitoring packages like Nagios and MRTG.

Technical Specifications

• Power Input/Output: 90 to 250 VAC at 50 to 60 Hz; 10A current rating.

• Power Consumption: 2.7 W max.

• Connectors: IEC 320-C14 inlet; two IEC 320-C13 outlets.

• Sensor & Network Interfaces: Two RJ45 modular jacks for environmental sensors; one 10/100 Base-T Ethernet port; one female RJ45 console port.

• Dimensions: 6.12″ x 5.55″ x 1.4″.

• Operating Temperature: 32°F to 122°F (0°C to 50°C).

• Storage Temperature: -13°F to 149°F (-25°C to 65°C).

• Reliability: MTBF of 183,724 hours; meets IEC/EN 61000-4-2 ESD immunity requirements.

• Protocols: HTTPS, SSHv2, SSLv3, TLS, LDAPv3, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour, SNMPv2c, IP filtering, and IPv6.

• Regulatory Compliance: CE, RoHS, EN51055, EN50121-3-2, and TAA compliant.

• Warranty: Two years.

Conclusion

Dream Technologies BD is a trusted supplier of the NTI IPDU-S2 in Bangladesh. We offer expert consultation and technical support to help integrate the IPDU-S2 into your infrastructure. Whether you are managing remote server rooms, telecom sites, or critical network hardware, our team helps you implement effective remote power management solutions to minimize downtime and ensure operational continuity.
