SPECTRUM 180180 X-Ray Inspection System

Description

Product Name: SPECTRUM 180180 X-Ray Inspection System

Manufacturer: VMI Security

Country of Origin: Brazil

Product Description

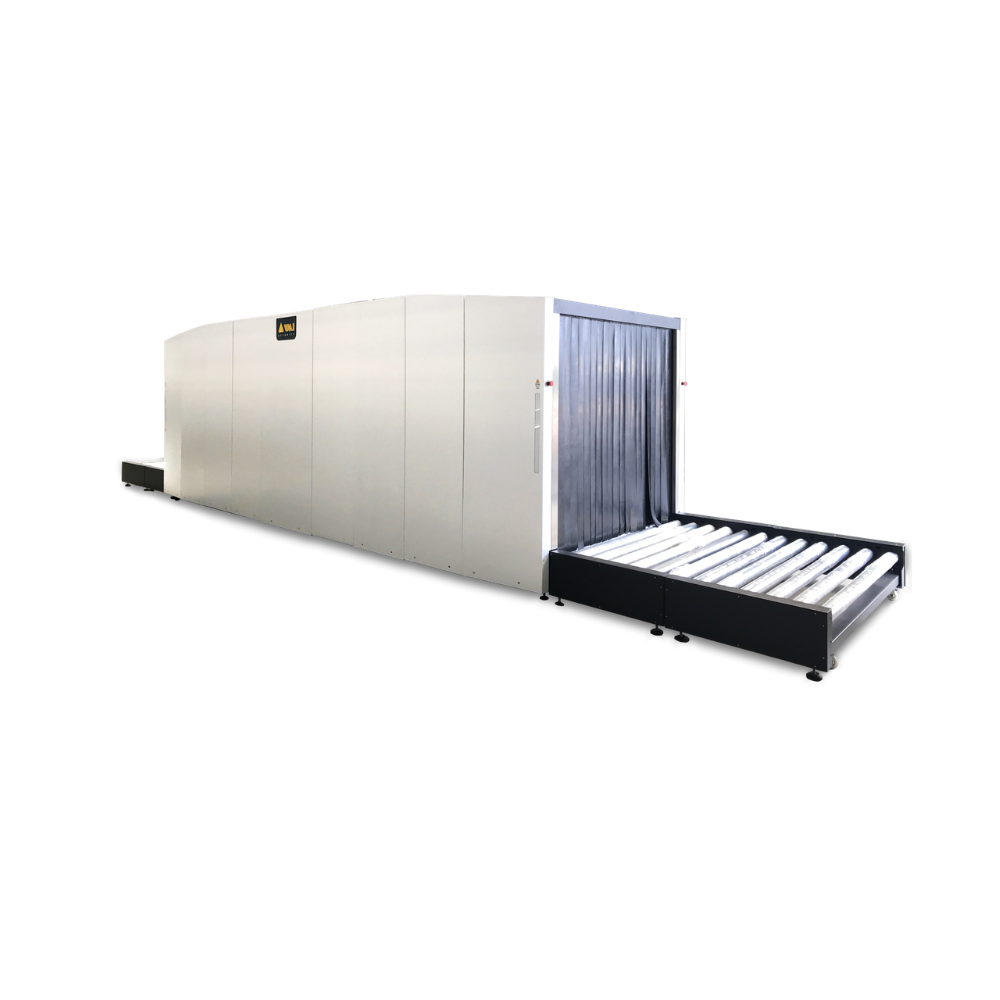

The SPECTRUM 180180 is a high-power and high-performance X-ray inspection system engineered for screening medium and large cargo volumes. It is available in 200 kV standard and 320 kV high-power configurations. These options provide reliable steel penetration for comprehensive object recognition with enhanced sharpness and image quality. Consequently, this system is optimally designed for environments that experience heavy cargo traffic and require rigorous, large-scale screening capabilities.

Operating on a reliable Linux-based architecture, the system integrates advanced technical differentials such as remote monitoring software alongside suspicious image reanalysis software. This advanced equipment allows real-time scanning and image manipulation. Furthermore, these integrated software features enable operators to use color inversion and automatic threat detection for maximum efficiency. Featuring a massive 1820 mm × 1802 mm inspection tunnel and customizable conveyor height settings, it smoothly accommodates oversized pallets, bulk freight, and large-scale cargo dimensions.

Key Features

• Flexible High-Power Configurations: Available in 200 kV standard and 320 kV high-power configurations to deliver superior penetration and image clarity for thick, dense cargo.

• Advanced Technical Differentials: Operates on a stable Linux-based OS and includes specialized remote monitoring software along with dedicated suspicious image reanalysis software.

• Automatic Material Differentiation: Features automatic discrimination of organic, inorganic, and mixed materials, identifying these distinct groups on-screen through precise colorization.

• TIP Software & Automated Detection: Includes TIP (Threat Image Projection) software and operates with a built-in automatic detection algorithm specifically designed for identifying drugs, explosives, and high-density materials.

• High-Performance Imaging & Penetration: Provides 36 AWG wire resolution and 49 mm steel penetration, enhanced through a high penetration function, sharpness tools, edge highlighting, and zoom capacities higher than 128×.

• Secure Storage Capacity: Features an automatic image saving utility with a secure storage capacity of over 60,000 images (depending on configuration), alongside tracking tools like a baggage counter.

Technical Specifications

• Product Name: SPECTRUM 180180

• Manufacturer & Origin: VMI Security | Brazil

• Tunnel Dimensions: 1820 mm (Width) × 1802 mm (Height)

• Equipment Dimensions: 8040 mm (L) × 3197 mm (W) × 2402 mm (H)

• Equipment Weight: Approximately 5000 kg (11023.11 lbs)

• Wire Resolution & Penetration: 36AWG | 49 mm (1.9”) steel penetration

• Generator Configurations: 200 kV standard / 320 kV high-power option

• Operating System: Linux-based architecture

• Cooling & Beam Orientation: Insulating oil with forced air cooling | Sideward beam

• Conveyor Speed & Height: 0.22 m/s (adjustable) | 389 mm height (with settings adjustment)

• Monitor & Power Supply: High resolution monitor | 220VAC; 50Hz/60Hz | 2200VA

• Environmental Limits: Operating: 0°C to 40°C | Storage: -40°C to 60°C | 5% to 95% humidity (non-condensing)

• Standard Functions: Automatic image saving, baggage counter, continuous scanning, color or black/white image, high density alert, self-diagnosis system, network connection, and real-time image manipulation.

• Application Areas: Airports, customs facilities, seaport logistics, railway cargo, and large transit environments.

Conclusion

For high-capacity cargo and security screening infrastructures in Bangladesh, handling oversized freight requires maximum generator power and tunnel clearance. The SPECTRUM 180180 meets these challenges by offering a massive 1800 x 1800 mm class tunnel footprint paired with versatile 200 kV or 320 kV generator options. For example, its automatic discrimination of materials by colorization allows security personnel at ports, cross-border custom stations, and air cargo complexes to isolate organic, inorganic, and mixed materials inside dense pallets accurately.

By utilizing built-in detection algorithms alongside advanced image reanalysis tools, the equipment supports operators in making swift, well-informed decisions during continuous high-volume screenings. Furthermore, the inclusion of remote monitoring software and TIP integration supports continuous security workflow efficiency. The SPECTRUM 180180 provides a reliable, heavy-duty screening solution for large cargo transit environments that demand efficient real-time X-ray inspection.

Get instant stock availability and the best price for the SPECTRUM 180180 X-Ray Inspection System in Bangladesh. Contact us today for official quotations, bulk pricing, and technical support.
