Description

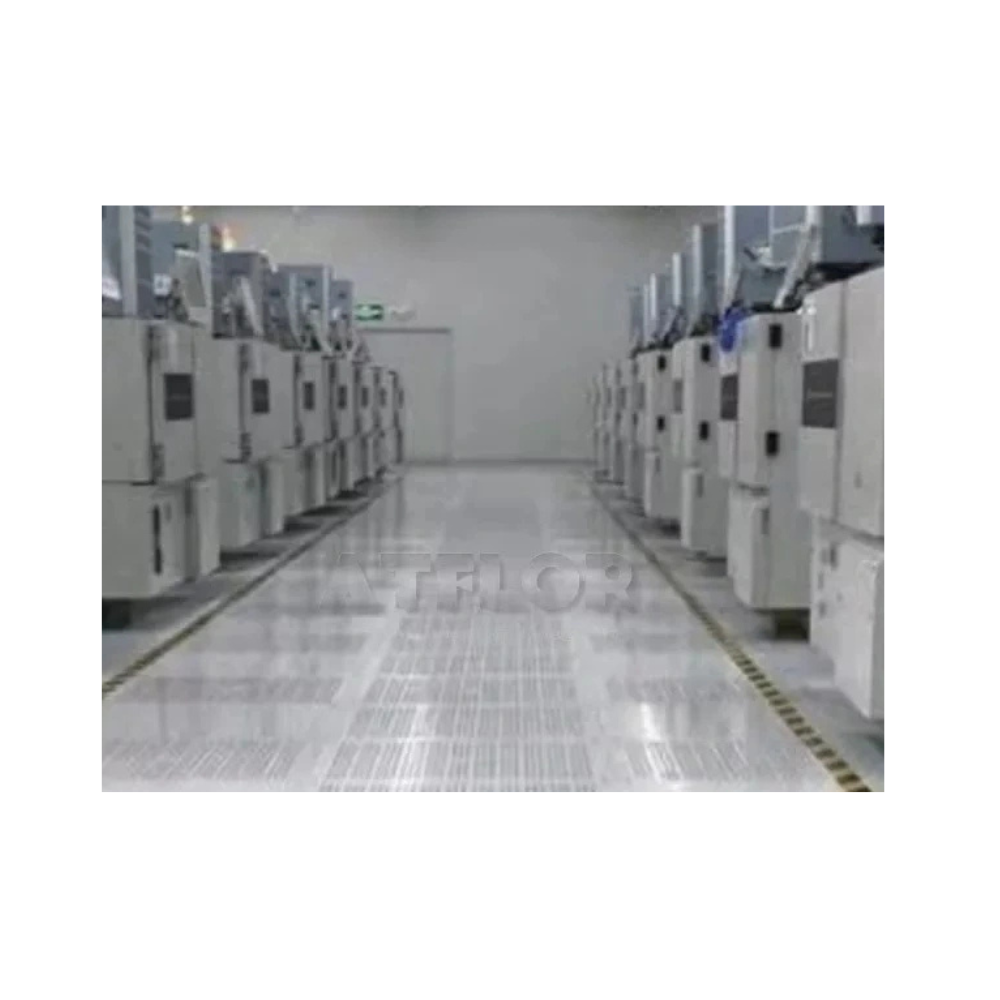

Product Name: Standard Aluminium Raised Access Floor Series in Bangladesh
Manufacturer: XL
Product Overview
The Standard Aluminium Raised Access Floor series (Model Nos. 300/Series, 500/Series, 700/Series, and 300 Series Grid type) is engineered for a range of technical environments. Built from high-grade die-casting aluminum (ADC12), it features precise dimensional tolerances, versatile open ratio choices, and specialized electrostatic discharge (ESD) surface performance for technical and server room infrastructure.
Key Features
-
Versatile Load Performance: Available in 300, 500, 700, and 300 Grid series configurations, delivering reliable concentrated, ultimate, and uniform load capacities.
-
Flexible Ventilation Options: Designed with open ratio choices ranging from 0% (solid), 17%, 25%, up to 50% for the grid type to support various airflow management and cooling requirements.
-
Surface Materials & Finishes: Available with HPL and PVC surface materials with fireproof performance, along with optional SUS304 stainless steel finishes and epoxy surface treatments.
-
Electrostatic Discharge (ESD) Performance: Features electrostatically conductive PVC and epoxy treatments meeting standard resistance thresholds ($10^4 – 10^6$ $\Omega$, $10^6 – 10^9$ $\Omega$, and $<1 \times 10^9$ $\Omega$) to protect sensitive equipment.
-
Precision Manufacturing: Manufactured using die-casting aluminum (ADC12) with strict length, width, thickness, planeness, and diagonal tolerances for seamless installation.
Characteristic Specifications
-
Series Options: Model 300/Series, 500/Series, 700/Series, and 300 Series Grid type configurations.
-
Material Composition: Die-casting aluminum base material (ADC12) ensuring lightweight yet robust structural integrity.
-
Tolerance Standards: High precision with strict manufacturing thresholds for length, width, thickness, planeness, and diagonal alignment.
-
Application Scope: Suited for standard technical environments, computer rooms, and telecommunication spaces requiring structural stability and static-control flooring infrastructure.
Technical Specification
| Component / Parameter | Specification Details |
| Product Series | Standard Aluminium Raised Access Floor (300, 500, 700 & 300 Grid Series) |
| Concentrated Load (kgf/6.45cm² with $\le 2.0mm$) | 300 (300 Series), 500 (500 Series), 700 (700 Series), 300 (300 Grid Series) |
| Ultimate Load (kgf/6.45cm² with $\le 2.0mm$) | 600 (300 Series), 1000 (500 Series), 1400 (700 Series), 600 (300 Grid Series) |
| Uniform Load (kgf/m² with $\le 1.0mm$) | 1000 (300 Series), 1500 (500 Series), 2100 (700 Series), 1000 (300 Grid Series) |
| Open Ratio | 0% (300 Series); 0%, 17%, 25% (500 & 700 Series); 50% (300 Grid Series) |
| Surface Material | HPL, PVC with fireproof performance; SUS304 optional; Epoxy surface treatment |
| ESD Standards | Electrostatic conductive PVC: $10^4 – 10^6$ $\Omega$ & $10^6 – 10^9$ $\Omega$; Electrostatic conductive: $<1 \times 10^9$ $\Omega$ |
| Base Material | Die casting Aluminium, ADC12 |
| Dimensional Tolerances | Length/width: $600^{+0.00}_{-0.20} mm$; Thickness: $\pm0.10 mm$; Planeness: $\pm0.20 mm$; Diagonal: Max. $0.50 mm$ |
Note: Specifications follow the manufacturer’s supplied information. Users should verify specific load ratings, dimensional configurations, and applicable standards with the original manufacturer datasheet.
Conclusion
The Standard Aluminium Raised Access Floor combines die-cast ADC12 aluminum construction with balanced load-bearing capacities across the 300, 500, 700, and 300 Grid series. Featuring multiple open-ratio configurations, precise manufacturing tolerances, and ESD-conductive surface options, it provides a dependable raised-floor solution for general technical and server room environments.
Contact Us
For pricing inquiries, system design, and stock availability in Bangladesh, get in touch with our team:
-
Phone: +8801737118246
-
Email: [email protected]
