Description

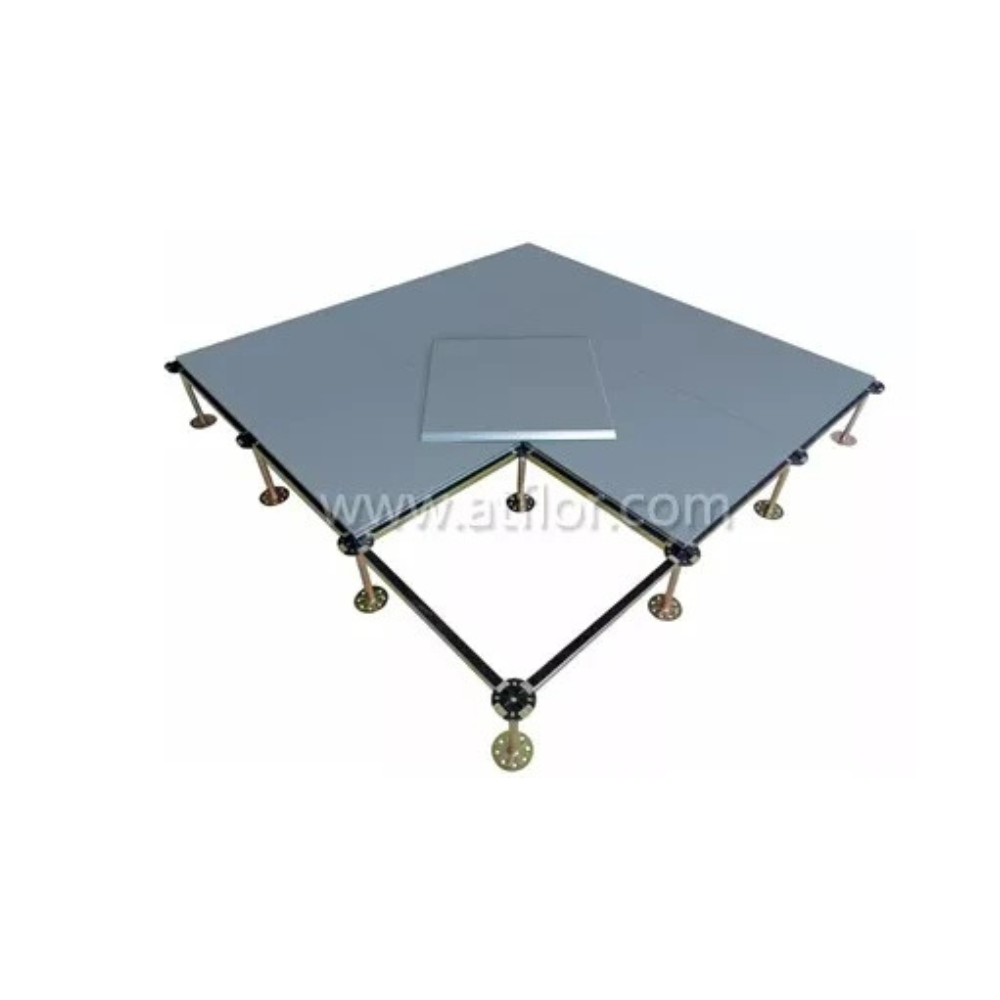

Product Name: Steel Encased Calcium Sulphate Raised Access Floor System in Bangladesh
Manufacturer: XL
Product Overview
The Steel Encased Calcium Sulphate Raised Access Floor System features a calcium sulphate core fully encapsulated in galvanized steel for enhanced sealing and water-resistant performance. Delivering anti-static properties, Class A fire resistance, antiskid, soundproof, dustproof, and electromagnetic shielding capabilities, this system maintains high dimensional precision, strong loading capability, and shockproof performance.
The product range spans from the FS800 to FS2000 product types, utilizing $600 \times 600 \times 31$ mm panels.
Key Features
-
Full Galvanized Steel Encapsulation: Fully encased in galvanized steel to provide enhanced sealing and water-resistant performance.
-
Protective & Environmental Properties: Prevents static effectively while offering Class A fire resistance, antiskid, soundproof, dustproof, and electromagnetic shielding benefits with environment-friendly composition.
-
Structural & Mechanical Integrity: Delivers strong wearability, non-bubble, non-deguming composition, high dimensional precision, and robust shockproof performance.
-
Robust Support Framework: Integrates die-casting steel structure pedestals with plastic top gaskets and square tube stringers for stable system connectivity.
-
Height Adjustability & Cabling: Accommodates finished floor heights (FFH) ranging from 70 mm to 1500 mm with flexible assembly, large wire capacity, and good exchangeability.
Characteristic Specifications
-
Panel Construction: Calcium sulphate board with PVC/ABS-covered edges and steel/aluminum bottom plate construction as specified by the product configuration. Panel thickness is 31 mm across the FS800 to FS2000 range.
-
Pedestal & Stringer Construction: Die-casting steel structure pedestal with plastic gasket on top, featuring adjustable heights from 70 mm to 1500 mm, utilizing standard square tube stringers ($535 \times 20 \times 30$ mm).
-
Application Scope: Ideal for computer rooms, network service engine rooms, control rooms, monitoring cabins, and top-grade offices.
Technical Specification
| Model | Size (mm) | Fire Performance | Manufacturer-Specified Load Values |
| FS800 | $600 \times 600 \times 31$ | A | $\ge 800$; $\ge 3,350$ N; $\ge 363$; $\ge 536$ N; $\ge 11,250$ N; $\ge 16,100$ N/m²; 3,560; 2,670 |
| FS1000 | $600 \times 600 \times 31$ | A | $\ge 1,000$; $\ge 4,550$ N; $\ge 450$; $\ge 670$ N; $\ge 13,350$ N; $\ge 23,000$ N/m²; 4,450; 3,560 |
| FS1250 | $600 \times 600 \times 31$ | A | $\ge 1,250$; $\ge 5,560$ N; $\ge 567$; $\ge 780$ N; $\ge 16,680$ N; $\ge 33,000$ N/m²; 5,560; 4,450 |
| FS1500 | $600 \times 600 \times 31$ | A | $\ge 1,500$; $\ge 6,675$ N; $\ge 670$; $\ge 1,005$ N; $\ge 19,892$ N; $\ge 34,500$ N/m²; 6,675; 5,340 |
| FS2000 | $600 \times 600 \times 31$ | A | $\ge 2,000$; $\ge 8,900$ N; $\ge 906$; $\ge 1,340$ N; $\ge 26,700$ N; $\ge 46,000$ N/m²; 8,900; 7,120 |
Note: Load values are presented according to the manufacturer’s supplied specification. Unit/column interpretation should be verified against the original manufacturer datasheet where required.
Standard Pedestal and Stringer Specifications
-
Finished Floor Height (FFH) $\le 600$ mm: Tube Diameter 25 mm, Adjustment +25 / -25 mm
-
FFH 700 ~ 900 mm: Tube Diameter 32 mm, Adjustment +25 / -25 mm
-
FFH 1000 ~ 1500 mm: Tube Diameter 42 mm, Adjustment +25 / -25 mm
-
Note: Other heights can be customized.
-
Standard Stringer Size: $535 \times 20 \times 30$ mm
Conclusion
The Steel Encased Calcium Sulphate Raised Access Floor System delivers high load-bearing performance from FS800 to FS2000, combined with galvanized steel encapsulation for enhanced sealing, Class A fire rating, and robust environmental stability for computer rooms, control rooms, and corporate office environments.
