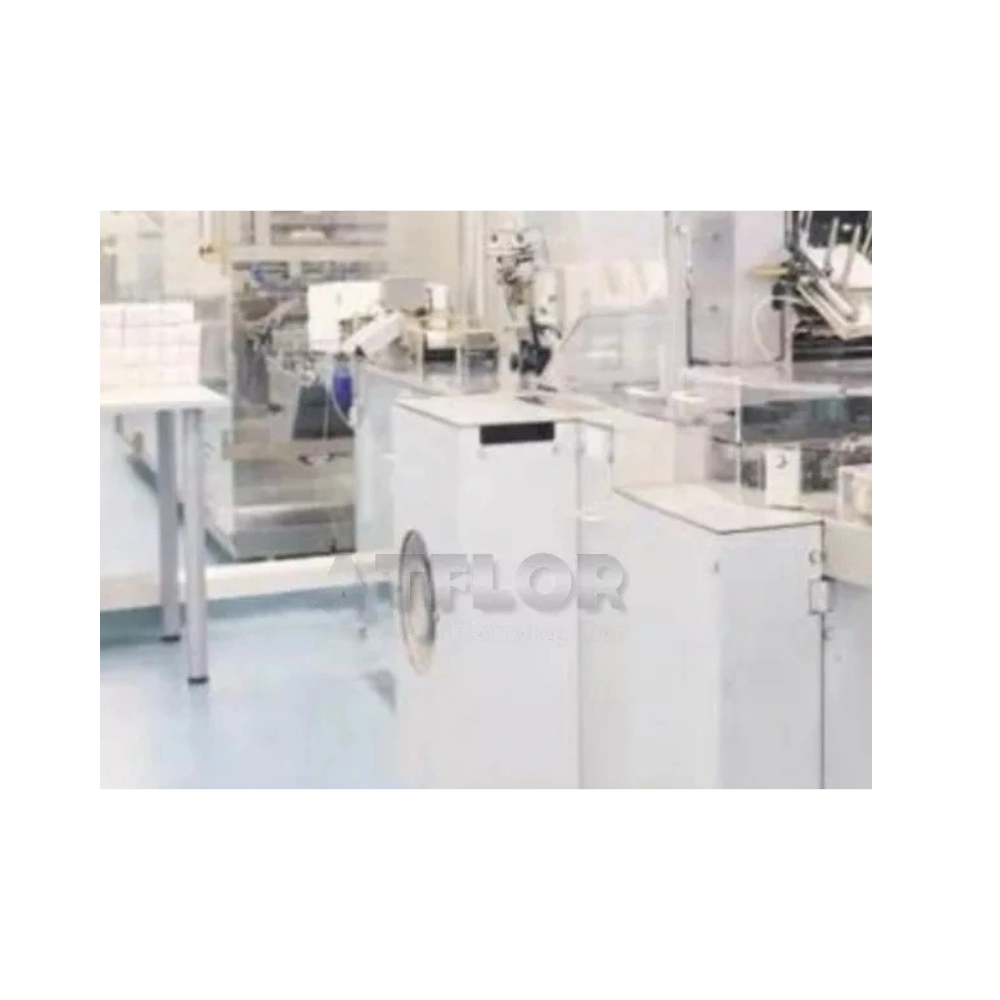

Product Name: Super-Heavy Duty Aluminium Raised Access Floor Series in Bangladesh
Manufacturer: XL
Product Overview
The Super-Heavy Duty Aluminium Raised Access Floor series (Model Nos. 2000/Series and 3000/Series) is engineered for environments requiring very high load-bearing capabilities and structural durability. Built from high-grade die-casting aluminum (ADC12), it features precise dimensional tolerances, versatile open ratio options, and specialized electrostatic discharge (ESD) surface compliance for high-demand technical and industrial facilities.
Key Features
-
Very High Load Capacity: Available in 2000/Series and 3000/Series variants, delivering exceptional concentrated, ultimate, and uniform load performance.
-
Flexible Ventilation Options: Designed with open ratio choices of 0% (solid), 17%, and 25% to support various airflow management and cooling requirements.
-
Surface Materials & Finishes: Equipped with fireproof HPL or PVC surface materials, with optional SUS304 stainless steel finishes available for specialized facility needs.
-
Electrostatic Discharge (ESD) Compliance: Features electrostatically conductive PVC meeting standard resistance thresholds ($10^4 – 10^6$ $\Omega$ and $10^6 – 10^9$ $\Omega$) to protect sensitive equipment.
-
Precision Manufacturing: Manufactured using die-casting aluminum (ADC12) with strict length, width, thickness, planeness, and diagonal tolerances for seamless installation.
Characteristic Specifications
-
Series Options: Model 2000/Series and Model 3000/Series configurations.
-
Material Composition: Die-casting aluminum base material (ADC12) ensuring lightweight yet robust structural integrity.
-
Tolerance Standards: High precision with strict manufacturing thresholds for length, width, thickness, planeness, and diagonal alignment.
-
Application Scope: Suited for high-demand technical and industrial environments requiring structural loads and anti-static flooring infrastructure.
Technical Specification
| Component / Parameter | Specification Details |
| Product Series | Super-Heavy Duty Aluminium Raised Access Floor (2000/Series & 3000/Series) |
| Concentrated Load (kgf/6.45cm² with $\le 2.0mm$) | 2000 (2000/Series), 3000 (3000/Series) |
| Ultimate Load (kgf/6.45cm² with $\le 2.0mm$) | 4000 (2000/Series), 6000 (3000/Series) |
| Uniform Load (kgf/m² with $\le 1.0mm$) | 6000 (2000/Series), 9000 (3000/Series) |
| Open Ratio | 0%, 17%, 25% |
| Surface Material | HPL, PVC with fireproof performance; SUS304 optional |
| ESD Standards | Electrostatic conductive PVC: $10^4 – 10^6$ $\Omega$ and $10^6 – 10^9$ $\Omega$ |
| Base Material | Die casting Aluminium, ADC12 |
| Dimensional Tolerances | Length/width: $600^{+0.00}_{-0.20} mm$; Thickness: $\pm0.10 mm$; Planeness: $\pm0.20 mm$; Diagonal: Max. $0.50 mm$ |
Note: Specifications follow the manufacturer’s supplied information. Users should verify specific load ratings, dimensional configurations, and applicable standards with the original manufacturer datasheet.
Conclusion
The Super-Heavy Duty Aluminium Raised Access Floor combines die-cast ADC12 aluminum construction with high load-bearing capacities across the 2000 and 3000 series. Featuring multiple open-ratio options, precise manufacturing tolerances, and ESD-conductive surface options, it provides a durable raised-floor solution for high-demand technical and industrial environments.
