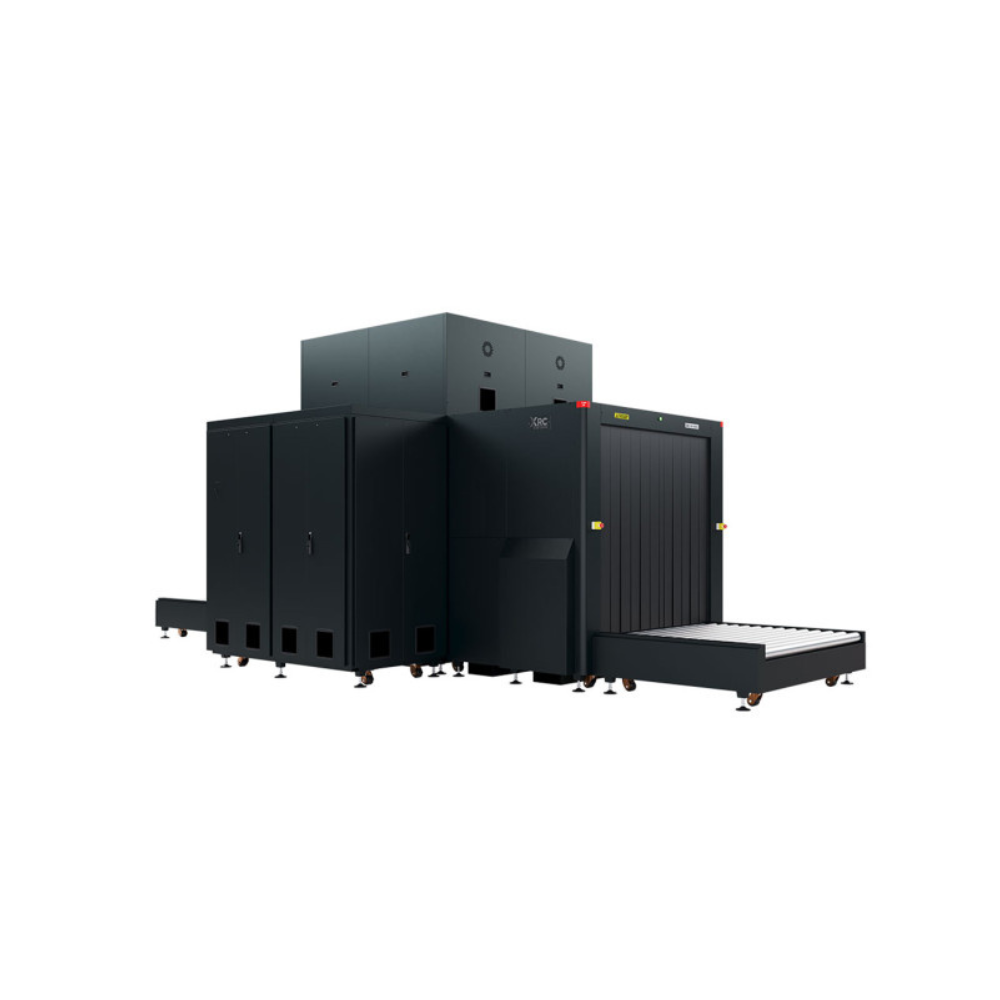

Unival XRC 180-180DV Dual-View Cargo X-Ray Scanner (320 kV)

Description

Product Name: Unival XRC 180-180DV Dual-View Cargo X-Ray Scanner (320 kV)

Manufacturer: Unival Group

Country of Origin: Germany

Product Description

The Unival XRC 180-180DV is a high-energy dual-view X-ray inspection system. Specifically, it is engineered for screening medium to large packages on pallets, outsized baggage, and bulky freight. Furthermore, this high-performance scanner is designed to meet strict international security requirements at global transit networks. Featuring a massive 1800 mm × 1810 mm tunnel, the machine seamlessly accommodates oversized shipments. Consequently, it serves as an ideal solution for high-security facilities requiring thorough screening without creating operational delays.

Additionally, the scanner integrates an exceptionally robust conveyor system. Indeed, this heavy-duty setup supports a maximum distributed load capacity of 3000 kg. Moving at a steady speed of 0.20 m/s in both forward and reverse directions, the reinforced belt ensures consistent throughput during continuous operations. At the same time, the dual-plane technology captures simultaneous horizontal and vertical images during a single pass. Therefore, this reliable configuration completely eliminates the need for manual cargo re-orientation.

Furthermore, the system features two independent high-energy X-ray generators operating up to 320 kV. These powerful, high-voltage sources deliver exceptional transmission imaging through dense or cluttered cargo. Security personnel can manage the entire inspection process by using a comprehensive suite of operator software tools. For instance, these tools enable precise material discrimination and contrast adjustment to reduce operator fatigue. As a result, the platform significantly assists operators in identifying concealed weapons, explosives, cutting tools, or narcotics.

Key Features

• High-Energy Dual-View Imaging: The system features two independent high-energy X-ray generators operating up to 320 kV. Therefore, it provides simultaneous top-down and side views from a single pass. Consequently, it reduces blind spots and eliminates the need to re-orient heavy cargo.

• Compliant System Architecture: Meeting strict security regulations is vital for international infrastructure checkpoints. Fortunately, this scanner is built to align with rigorous international testing standards. Thus, it fully complies with mandates required for airports, freight terminals, and defense sites.

• High-Precision Material Penetration: Driven by high-voltage anode sources, the system achieves up to 70 mm steel penetration and 36/38 AWG wire resolution. Thus, operators can easily see through high-density structures and heavily packed consignments with absolute technical clarity.

• Heavy-Duty Conveyor Architecture: Loading oversized freight causes significant mechanical wear. However, this machine offers a reinforced conveyor that supports up to a 3-ton distributed load. Thus, it minimizes handling times and ensures steady operational workflows.

• Advanced Image Evaluation: The platform features precise material discrimination down to 0.5 Z accuracy. Specifically, it highlights Low Z, Medium Z, and High Z substances to help operators isolate organic threats, metals, and inorganic materials.

• Optional Feature Set Integration: The control architecture supports modern networked security operations through modular expansion options. Additionally, it offers integration capabilities for network storage systems (NSS), remote viewing stations, recheck protocols, and barcode scanners.

Technical Specifications

• Product Name: XRC 180-180DV (320 kV)

• Manufacturer: unival group

• Country of Origin: Germany

• Tunnel Dimensions (W × H): 1800 mm × 1810 mm

• Anode Voltage: Up to 320 kV

• Beam Direction: Dual-View (Vertical top-down and Horizontal sideways)

• Steel Penetration: Up to 70 mm (depending on material density)

• Wire Resolution: 36 AWG guaranteed / 38 AWG typical

• Material Discrimination: Low Z, Medium Z, and High Z to 0.5 Z accuracy

• Conveyor Speed: 0.20 m/s (Forward / Reverse)

• Conveyor Height: 465 mm

• Maximum Conveyor Capacity: 3000 kg (Evenly Distributed Load)

• Cooling System: Oil and forced air cooling

• Standards & Safety Compliance: Compliant with CE and relevant international safety standards

• Overall Dimensions (L × W × H): 8580 mm × 3410 mm × 3465 mm

• System Weight (Unpacked): ~10,500 kg

• Power Requirements: 110/220V AC ±10% (50/60 Hz), 1-phase 16A max or 3-phase 7A max

Application Areas

Airports, air cargo terminals, border crossings, seaport customs stations, freight terminals, customs warehouses, distribution centers, logistics hubs, government logistics, and critical infrastructure sites.

Conclusion

For large logistics terminals, international trade entry points, and heavy transport networks in Bangladesh, managing heavy cargo and bulky package screening without creating logistical bottlenecks is a key operational challenge. Fortunately, the Unival XRC 180-180DV Dual-View X-Ray Scanner addresses these demanding requirements through its powerful high-voltage imaging and heavy-duty load capacity.

Thus, its precise generator configuration and advanced material discrimination software assist operators in identifying weapons, explosives, knives, and drugs efficiently. Therefore, it makes an ideal choice for Bangladeshi land ports, seaport customs stations, Dhaka air cargo complexes, and large-scale industrial warehouses.

In addition, its expansive tunnel dimensions and robust 3000 kg conveyor capacity facilitate reliable pallet and crate screening in demanding environments. These specialized imaging configurations successfully streamline cargo workflows and manage high-volume throughput effectively. Consequently, the Unival XRC 180-180DV stands out as a highly dependable, high-performance X-ray cargo screening asset for critical checkpoints in Bangladesh.

For pricing, availability, and technical consultation regarding the Unival XRC 180-180DV Dual-View Cargo Scanner (320 kV) in Bangladesh, please contact us.
