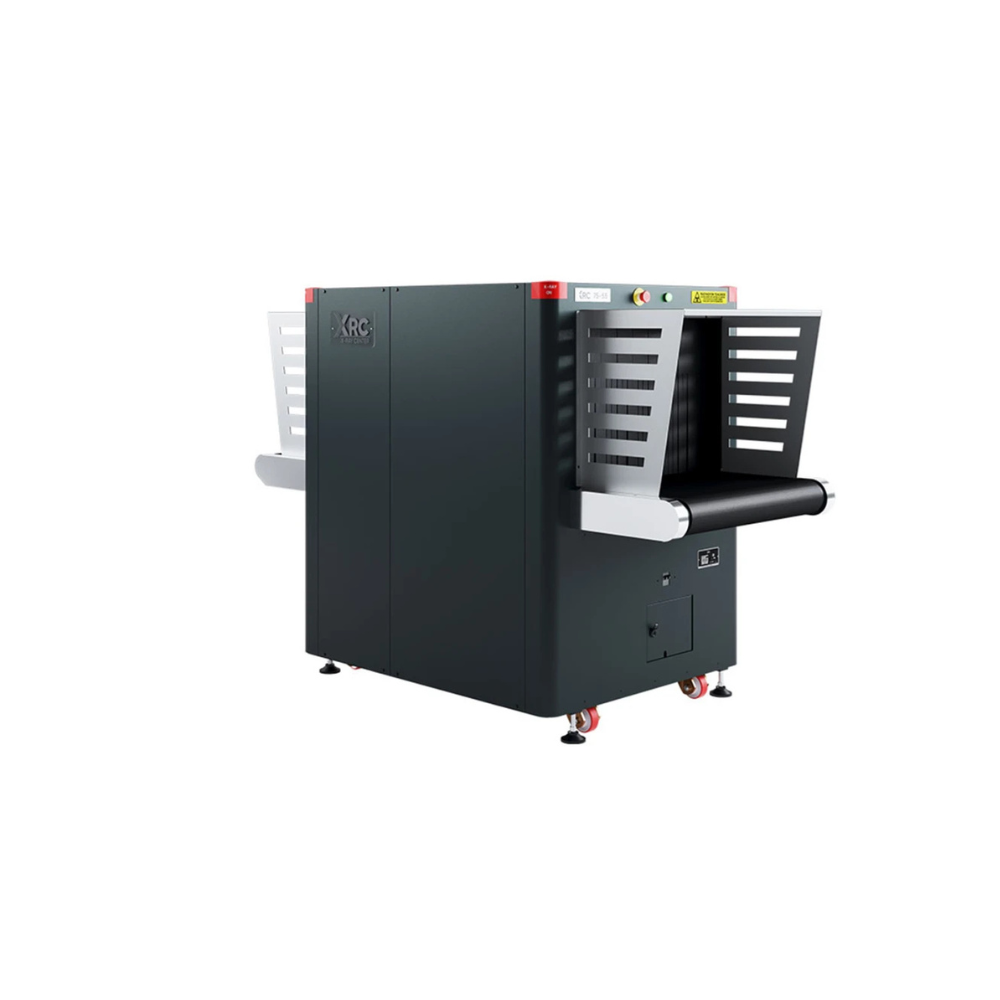

Unival XRC 75-55 Small Parcel and Baggage X-Ray Scanner

Description

Product Name: Unival XRC 75-55 Small Parcel and Baggage X-Ray Scanner

Manufacturer: Unival Group

Country of Origin: Germany

Product Description

The Unival XRC 75-55 is a high-performance transmission X-ray baggage inspection system. Specifically, it is engineered for screening medium-sized baggage, larger parcels, and diverse transit packages. Furthermore, this advanced security scanner belongs to the widely utilized small parcel and baggage screening category, serving international transit networks, commercial hubs, and corporate infrastructure. Featuring a practical 755 mm × 555 mm tunnel opening, the machine seamlessly manages larger baggage structures. Consequently, it serves as an ideal solution for facilities requiring thorough security workflows without creating baggage counters bottlenecks.

Additionally, the scanner integrates a reliable, high-capacity conveyor belt system. Indeed, this rugged mechanical setup supports an evenly distributed maximum load capacity of 165 kg. Moving at a steady operational speed of 0.20 m/s in both forward and reverse directions, the system maintains high-volume throughput across peak hours. At the same time, the vertical upwards beam geometry passes cleanly through moving items to record immediate internal layouts. Therefore, this efficient system speeds up checkpoint clearance times while significantly improving overall processing efficiency.

Furthermore, the system features a multi-diode imaging architecture backed by a robust generator. Operating up to 170 kV, this high-voltage source delivers strong penetration performance and exceptional density-based color imaging. Security operators can evaluate scans with maximum accuracy using automated material separation algorithms. For instance, the integrated platform accurately differentiates organic, inorganic, and mixed composite materials with approx. 0.5 Z separation. As a result, the platform significantly assists operators in identifying hidden cutting tools, weapons, explosives, or narcotics.

Key Features

• Small Parcel and Baggage Architecture: Handling large parcels can be highly challenging in restricted spaces. However, this scanner offers a balanced 755 mm × 555 mm tunnel opening. Thus, it seamlessly manages bulkier bags and commercial boxes than standard checkpoints.

• High-Voltage Penetration: Driven by a powerful anode source, the system provides up to 37 mm steel penetration and 36/38 AWG wire resolution. Thus, operators can easily see through high-density parcels and cluttered storage containers.

• Advanced Material Separation: The specialized multi-energy imaging structure enables clear material discrimination. Specifically, it assigns color codes to Low Z, Medium Z, and High Z elements to isolate hidden organic threats, contraband, and metallic items.

• Durable Mechanical Engineering: Loading large boxes causes significant impact wear over time. Fortunately, the reinforced conveyor belt handles up to 165 kg of distributed baggage weight while maintaining a standard 810 mm operational height.

• Secure Linux Control Interface: The core system runs on a highly stable Linux operating system environment. Additionally, it is powered by an Intel Core i5 processor and extensive local storage to guarantee lag-free image processing and secure logs.

• Integration Ready Operations: The control architecture is designed to support modern networked security frameworks. Additionally, it offers optional system compatibility with remote monitoring systems and supervisor control workstations.

Technical Specifications

• Product Name: XRC 75-55 (Small Parcel and Baggage)

• Manufacturer: unival group

• Country of Origin: Germany

• Tunnel Dimensions (W × H): 755 mm × 555 mm

• Anode Voltage: Up to 170 kV

• Beam Direction: Vertical upwards

• Steel Penetration: Up to 37 mm (depending on material density)

• Wire Resolution: 36 AWG guaranteed / 38 AWG typical

• Material Discrimination: Low Z, Medium Z, and High Z with approx. 0.5 Z separation

• Conveyor Speed: 0.20 m/s (Forward / Reverse functions)

• Conveyor Height: 810 mm

• Maximum Conveyor Capacity: 165 kg (Evenly Distributed Load)

• Cooling System: Closed oil and forced air cooling

• Operational Safety: Compliant with applicable radiation safety regulations

• Standards & Safety Compliance: Compliant with CE standards

• PC Specifications: Intel Core i5 Processor (or superior), 4 GB RAM, 1 TB HDD

• Operating System: Secure Linux Platform

• Overall Dimensions (L × W × H): 2180 mm × 1480 mm × 1030 mm

• System Weight (Approx.): ~635 kg

Application Areas

Airports, train stations, mass transit metro hubs, seaport customs lines, parcel delivery courier depots, government buildings, prisons, and corporate warehouses.

Conclusion

For large logistics terminals, international trade entry points, and heavy transport networks in Bangladesh, managing heavy cargo and bulky package screening without creating logistical bottlenecks is a key operational challenge. Fortunately, the Unival XRC 75-55 Small Parcel and Baggage X-Ray Scanner addresses these demanding requirements through its powerful high-voltage imaging and heavy-duty load capacity.

Thus, its precise generator configuration and advanced material discrimination software assist operators in identifying weapons, explosives, knives, and drugs efficiently. Therefore, it makes an ideal choice for Bangladeshi land ports, seaport customs stations, Dhaka air cargo complexes, and large-scale industrial warehouses.

In addition, its expansive tunnel dimensions and robust conveyor capacity facilitate reliable pallet and crate screening in demanding environments. These specialized imaging configurations successfully streamline cargo workflows and manage high-volume throughput effectively. Consequently, the Unival XRC 75-55 stands out as a highly dependable, high-performance X-ray cargo screening asset for critical checkpoints in Bangladesh.

For pricing, availability, and technical consultation regarding the Unival XRC 75-55 Small Parcel and Baggage X-Ray Scanner in Bangladesh, please contact us.
