Product Name: UPS Output DB Best Price in Bangladesh

Product Overview

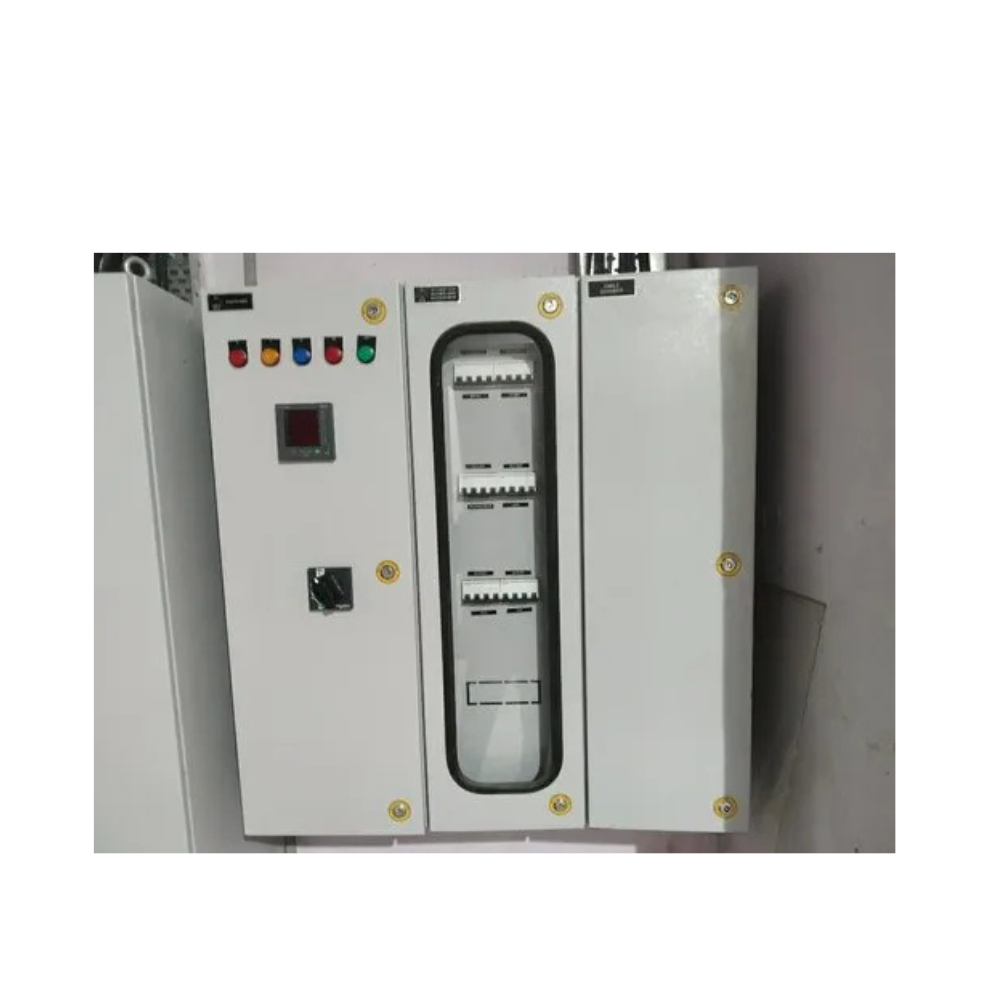

The UPS Output DB (Item Name: UPS Output DB) is designed for the design, supply, installation, testing, and commissioning of a fully equipped UPS Output Distribution Board (DB) panel with integrated digital monitoring and circuit protection, housed in a minimum 16 SWG sheet steel dust-proof and vermin-proof enclosure.

Key Features and Benefits

• Scope of Work: Involves the design, supply, installation, testing, and commissioning of a fully equipped UPS Output DB panel with integrated digital monitoring and circuit protection, suitable for industrial and mission-critical environments.

• Enclosure and Mounting: Constructed from minimum 16 SWG sheet steel or thicker, enclosed, dust-proof and vermin-proof, with free-standing, floor-mounted, or wall-mounted styles.

• Electrical Ratings: Indoor-rated for 415 VAC, 50 Hz operations.

• Busbar Specifications: Features a minimum 800 Amp hard-drawn electrolytic copper busbar, fully insulated, with a TPN & E (Three Phase + Neutral + Earth) configuration.

• Components & Safety: Equipped with a drawout-type input breaker, minimum 3 Nos. Current Transformers (CTs), 3 Nos. indication lamps, powder-coated locks, insulated supports, and an internal ebonite cover for the busbar section.

• Protection Devices: Includes minimum protection arrangements comprising 1 No. TP-100A MCCB, 1 No. TP-32A MCCB, and 3 Nos. SP-32A MCBs.

• Digital Monitoring & Compliance: Provides digital monitoring displaying currents (I1, I2, I3, ΣI, In) and voltages (Phase/Neutral and Phase/Phase), complying with the 15th Edition of IEE Wiring Regulations.

Technical Specifications

• Item Name: UPS Output DB

• Quantity: 1 Unit

• Scope of Work: Design, supply, installation, testing, and commissioning of a fully equipped UPS Output Distribution Board (DB) panel with integrated digital monitoring and circuit protection

• Enclosure: Minimum 16 SWG sheet steel or thicker, enclosed, dust-proof and vermin-proof construction

• Mounting Style: Free-standing, floor-mounted, or wall-mounted

• Paint Finish: Electrostatic powder-coated finish

• Operating Voltage & Frequency: 415 VAC, 50 Hz, indoor-rated

• Busbar Rating: Minimum 800 Amp hard-drawn electrolytic copper busbar, fully insulated, TPN & E

• Input Breaker: Drawout-type breaker installed inside the Distribution Board (DB)

• DB Size: Suitable to accommodate the actual site requirements

• Current Transformers: Minimum 3 Nos. Current Transformers (CTs)

• Indication Lamps: Minimum 3 Nos. indication lamps

• Lock & Insulators: Powder-coated lock and insulated supports

• Busbar Safety Cover: Internal ebonite cover for busbar section

• Digital Monitoring – Current: Displays I1, I2, I3, ΣI, and In (with 4th CT for neutral)

• Digital Monitoring – Voltage (Phase/Neutral): Displays V1, V2, and V3

• Digital Monitoring – Voltage (Phase/Phase): Displays U12, U23, and U31

• MCCB Installed: Minimum 1 No. TP-100A MCCB and Minimum 1 No. TP-32A MCCB

• MCB Installed: Minimum 3 Nos. SP-32A MCBs

• Regulatory Compliance: Complies with the 15th Edition of IEE Wiring Regulations

• Performance Features: Rugged dust-proof and vermin-resistant enclosure; modular and maintainable design for ease of operation and future expansion; real-time system monitoring through a digital multimeter

• Application: Suitable for industrial plants, data centers, server rooms, and other critical power distribution applications

• Warranty & Service Support: 3 Years Comprehensive Service Support with Warranty including Free Spare Parts and Installation Assistance

Conclusion

Ultimately, the UPS Output DB delivers the exact structural build, 800A busbar capacity, and circuit protection configurations outlined in the tender specification for critical power distribution setups across Bangladesh.
