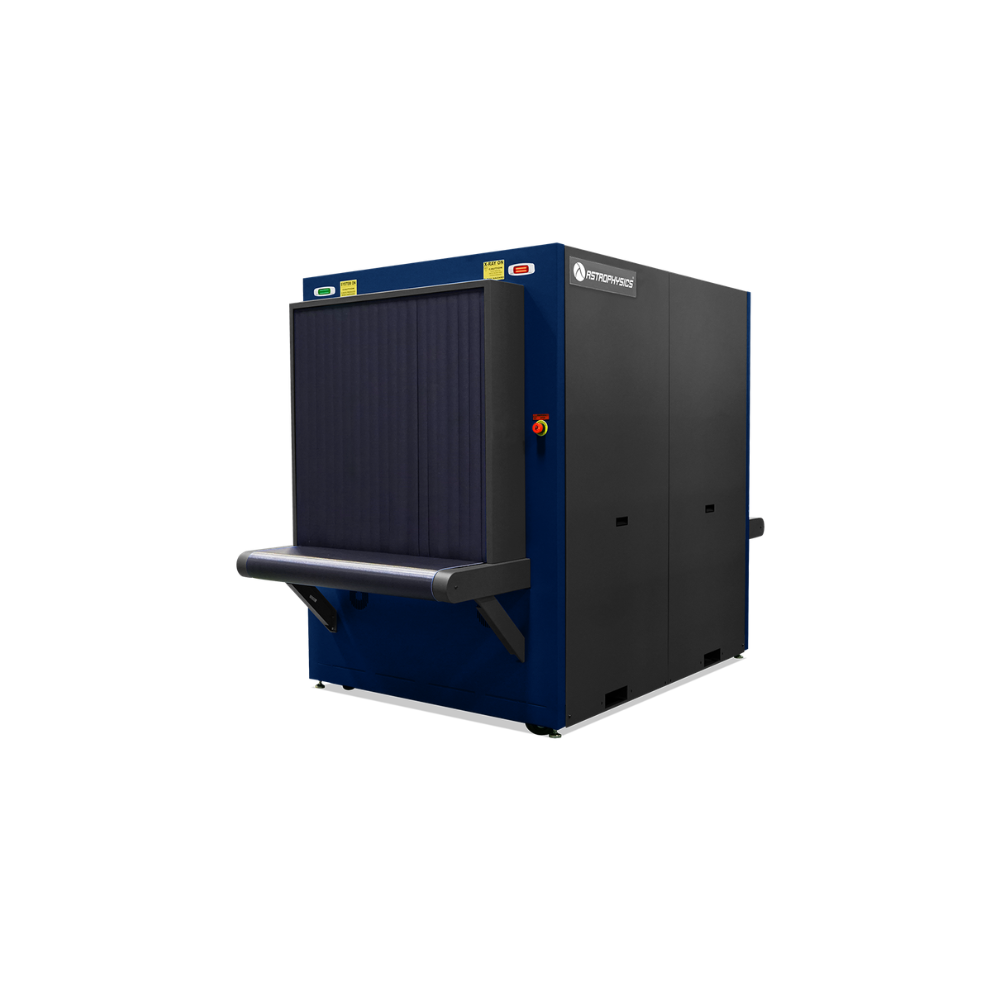

XIS-100X X-Ray Inspection System

Description

Product Name: XIS-100X X-Ray Inspection System

Manufacturer: Astrophysics Inc.

Country of Origin: USA

Product Description

The XIS-100X™ is an X-ray inspection system engineered for screening oversized luggage, large parcels, and small cargo at aviation checkpoints, customs facilities, and security checkpoints. The system features a tunnel opening of 100.3 cm x 100.0 cm (39.5” x 39.4”) to accommodate bulkier items.

The system integrates a 180kV generator designed to provide steel penetration and high-resolution imaging for the inspection of dense packages and complex baggage configurations. It operates on a standardized architecture that supports real-time image processing and data management at high-throughput security checkpoints.

key Features

• Material Discrimination: Configured with 3 & 6 Color Imaging and Atomic Z-Number Measurement for the identification and separation of organic, inorganic, and mixed metallic materials.

• Imaging Tools: Equipped with Enhanced Imaging, Picture Perfect, Pseudo Color, Inverse Color, and Reverse Monochrome functions to manipulate image clarity.

• Zoom Capabilities: Supports 9 Quadrant Zoom, Continuous Scanning, and Continuous Zoom up to 64x with Vertical Zoom Panning.

• System Diagnostics: Integrates Real-Time Self Diagnostics, Auto Image Archiving, Baggage Counter, and Image Annotation features.

• Operational Readiness: Designed with an instant-start configuration requiring no warm-up procedure prior to operational use.

Technical Specifications

• Tunnel Dimensions (WxH): 100.3 cm x 100.0 cm (39.5” x 39.4”)

• Equipment Dimensions (LxWxH): 280.3 cm x 137.2 cm x 188.9 cm (110.4” x 54.0” x 74.4”)

• Shipping Dimensions (LxWxH): 297.2 cm x 149.9 cm x 223.5 cm (117.0” x 59.0” x 88.0”)

• Net Weight: 857 kg (1890 lbs)

• Shipping Weight: 1009 kg (2225 lbs)

• Conveyor Capacity: 220 kg (485 lbs) Evenly Distributed Load

• Conveyor Speed: 23 cm/s (45 ft/min) Forward or Reverse

• Conveyor Height: 70.6 cm (27.8”) from Floor

 Imaging & Generator

• Generator Voltage: 180kV, Operating at 165kV

• Tube Current: 1.2 mA

• Steel Penetration: 39 mm Typical (37 mm Standard)

• Wire Resolution: 40 AWG Typical (38 AWG Standard)

• Beam Direction: Diagonally Upward

• Cooling System: Sealed Di-Electric Oil Bath with Forced Air

• Warm-Up Requirement: None (No Warm-Up Procedure Required)

System & Connectivity

• Software Platform: Windows® OS Support

• Standard Profiles: Geometric Image Distortion Correction, JPEG Conversion, Multi-Tier Accessibility, and Network Ready capability.

Environmental Specifications

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Humidity: Up to 95% Non-Condensing

Safety & Compliance

• USFDA Standards: Fully compliant with the USFDA Center for Devices and Radiation Health Standards for Cabinet X-Ray Systems (21-CFR 1020.40).

• Radiation Leakage: Typical radiation leakage is less than 0.1 mR/hr (leakage less than 0.5 mR/hr is permitted under U.S. Federal Standards).

Conclusion

The XIS-100X provides standardized threat detection and material analysis for checkpoint installations in Bangladesh. The integration of its tunnel clearance parameters along with immediate operational deployment capability supports continuous throughput requirements across security facilities in Bangladesh. Utilizing a 39 mm typical steel penetration capability and 40 AWG typical wire resolution, the system enables security personnel to execute high-contrast imaging analysis on complex cargo and dense parcels at checkpoints throughout Bangladesh.
