XIS-7555R  X-Ray Inspection System

Description

Product Name: XIS-7555R  X-Ray Inspection System

Manufacturer: Astrophysics Inc.

Country of Origin: USA

Product Description

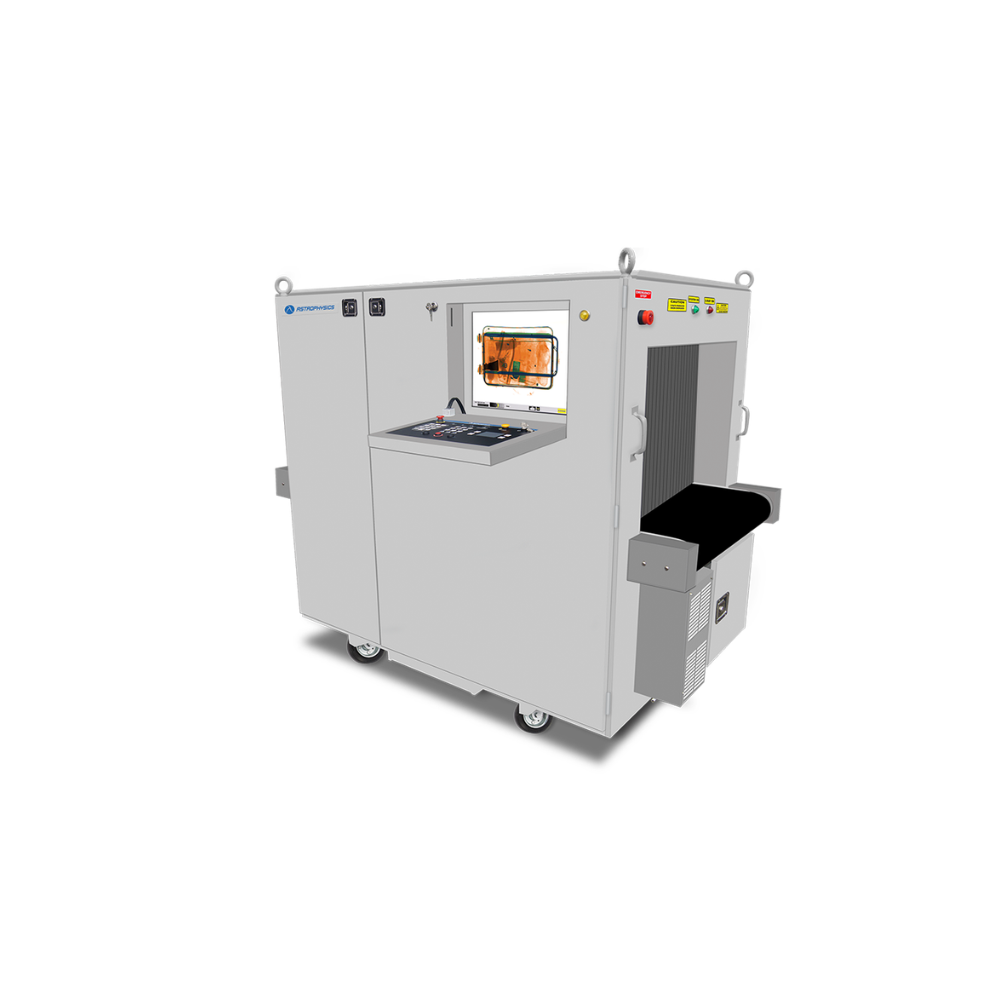

The XIS-7555R™ is a ruggedized X-ray inspection system featuring a tunnel opening of 75.7 cm x 55.2 cm (29.8” x 21.7”). Engineered for military operations and outdoor environments, it is designed to maintain operational integrity under severe weather conditions, including sandstorms and torrential rains.

Built with a high-strength stainless steel frame and an anti-corrosive powder-coating, the system is fully sealed to ensure superior weather resistance. Operating on a Windows® OS platform with 8 GB RAM and a 256 GB SSD, the XIS-7555R delivers rapid image processing and proven field reliability for safeguarding critical infrastructure, aviation, ports, and borders worldwide.

Key Features

• Advanced Material Discrimination: Features 3 & 6 Color Imaging and Atomic Z-Number Measurement for precise identification of organic, inorganic, and mixed metallic materials.

• Ruggedized Weatherproof Design: Constructed with a stainless steel frame and specialized environmental sealing, making it ideal for harsh outdoor checkpoints.

• High Penetration & Clarity: Delivers a typical steel penetration of 39 mm and a typical wire resolution of 40 AWG, ensuring detailed imaging of dense objects.

• Comprehensive Zoom & Manipulation: Equipped with 9 Quadrant Zoom, Continuous Scanning, and Zoom capabilities up to 64x with Vertical Zoom Pan for thorough threat analysis.

• Operational Efficiency: Built-in Real-Time Self Diagnostics, Auto Image Archiving, Baggage Counter, and an instant-start system requiring no warm-up procedure.

 Technical Specifications

• Tunnel Dimensions: 75.7 cm x 55.2 cm (29.8” x 21.7”)

• Equipment Dimensions: 188.2 cm x 106.3 cm x 158.0 cm (74.1” x 36.1” x 62.2”)

• Equipment Weight: Net: 810 kg (1780 lbs) | Shipping: 995 kg (2190 lbs)

• Conveyor Capacity: 165 kg (364 lbs) Evenly Distributed Load

• Conveyor Speed: 23 cm/s (45 ft/min) Forward or Reverse

• Conveyor Height: 83.1 cm (32.7”) from Floor

Imaging & Generator

• Generator: 180kV (Operating at 165kV) | 1.2 mA Tube Current

• Steel Penetration: 39 mm Typical (37 mm Standard)

• Wire Resolution: 40 AWG Typical (38 AWG Standard)

• Beam Direction: Diagonally Upward

• Cooling System: Sealed Di-Electric Oil Bath with Forced Air

• Warm-Up: No Warm-Up Procedure Required

 System & Power

• OS & Hardware: Windows® OS | 8 GB RAM | 256 GB SSD

• Display: 19” Flat Panel Monitor (1280 x 1024 Resolution)

• Power Requirements:

  • 110 VAC +/- 10% 50/60Hz, 20 Amp Max

  • 220 VAC +/- 10% 50/60Hz, 15 Amp Max

Environmental Specifications

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Humidity: Up to 95% Non-Condensing

Safety & Compliance

• USFDA Compliant: Compliant with the USFDA Center for Devices and Radiation Health Standards for Cabinet X-Ray Systems (21-CFR 1020.40).

• Radiation Leakage: Typical radiation leakage is less than 0.1 mR/hr (leakage less than 0.5 mR/hr permitted by U.S. Federal Standards).

Conclusion

For military bases, border control, and high-security zones in Bangladesh, the XIS-7555R™ offers professional protection and durability under demanding field conditions. With its weather-resistant stainless steel body, anti-corrosive coating, and immediate operational readiness requiring no warm-up delay, this system provides efficient screening for critical environments across Bangladesh. Security personnel can depend on its 39 mm typical steel penetration and 40 AWG wire resolution to identify fine wires and prohibited materials hidden within dense cargo, making it a highly reliable and advanced imaging solution for high-security checkpoints throughout Bangladesh.

Get instant stock availability and the best price for the Astrophysics XIS-7555R X-Ray Inspection System in Bangladesh. Contact us today for official quotations, bulk pricing, and technical support.
