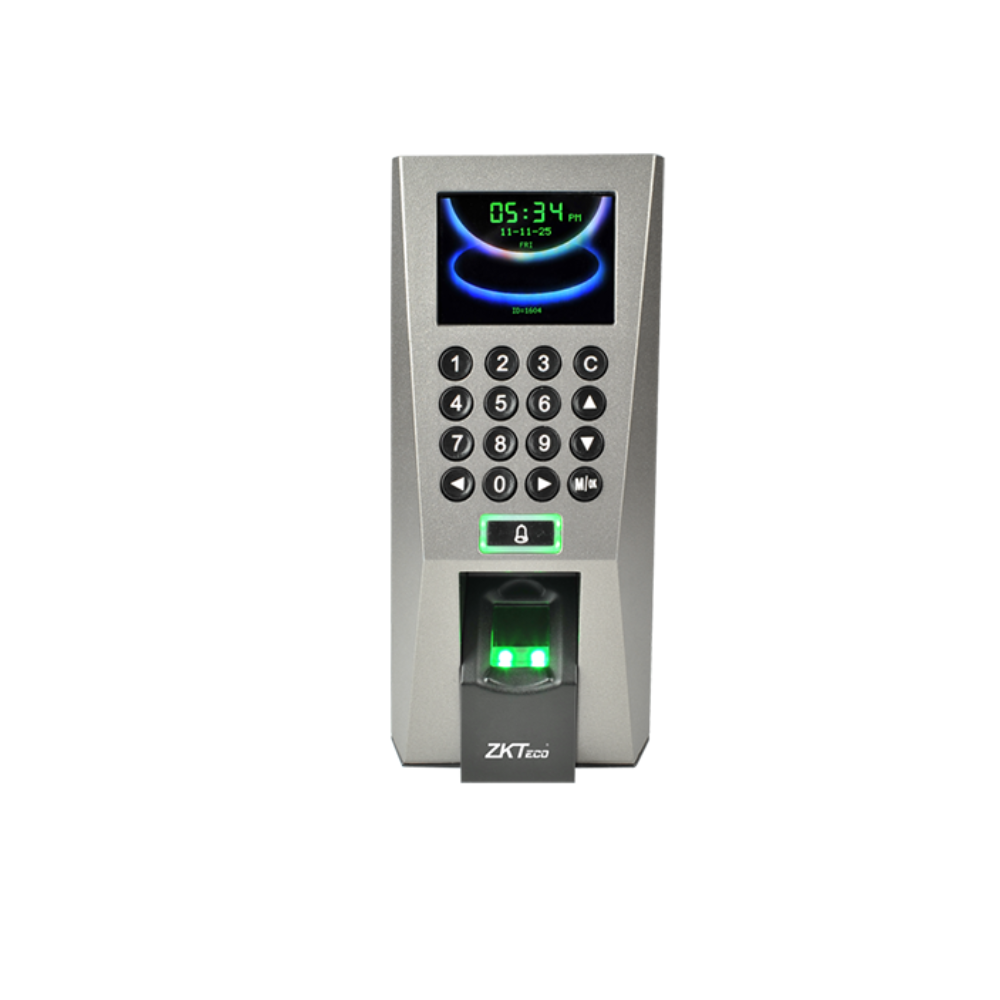

ZKTeco F18 Fingerprint & RFID Access Control Terminal

Description

Product Name: ZKTeco F18 Fingerprint & RFID Access Control Terminal

Manufacturer: ZKTeco

Product Overview

The ZKTeco F18 is an innovative biometric fingerprint reader designed for high-performance access control applications. Built on the advanced ZMM210 hardware platform with a 1.2GHz CPU, it offers enhanced verification efficiency and reliability. The device features a user-friendly interface with flexible privilege settings for multi-level management, making it one of ZKTeco’s most popular security solutions. It provides the flexibility of both standalone installation and integration with third-party access control panels via standard Wiegand signals, with TCP/IP support for seamless network connectivity.

Key Features

• High-Performance Hardware: Powered by the ZMM210 core-board and a 1.2GHz CPU for rapid and efficient fingerprint verification.

• Flexible Deployment: Supports standalone installation or integration with third-party access control panels using Wiegand input/output.

• Intuitive Interface: Features a 2.4-inch TFT LCD color screen with a modern, user-friendly UI for easy operation and management.

• Advanced Access Control: Includes robust security features such as anti-passback, doorbell support, and interfaces for electric locks, door sensors, and exit buttons.

• Versatile Firmware Support: Compatible with AC push (ZKBio CVAccess), TA push (ZKBioTime 8.0), and standalone firmware (ZKAccess 3.5) to suit different organizational needs.

• Slim & Compact: Designed with an elegant, space-saving profile suitable for diverse professional environments.

Technical Specifications

• Display: 2.4-inch TFT LCD Color Screen

• Processor: 1.2GHz CPU (ZMM210 core-board)

• Fingerprint Capacity: 3,000

• Card Capacity: 5,000 (Optional ID/IC/HID Prox/HID iClass)

• Transaction Capacity: 100,000

• Sensor: ZK Optical Sensor

• Biometric Algorithm: ZKFinger V10.0

• Communication: TCP/IP, RS232/485, USB Host

• Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell

• Wiegand Signal: Input, Output, SRB

• Standard Functions: DST, Record Query, Anti-passback, External RS485 Fingerprint Reader

• Optional Functions: Printer, Wi-Fi, HTTPS

• Power Supply: 12V DC, 3A

• Dimensions (W×D×H): 80 mm × 183 mm × 42 mm

• Operating Temperature: 0°C to 45°C

• Operating Humidity: 20% to 80%

• Software Compatibility: ZKBio CVAccess, ZKBioTime 8.0, ZKAccess 3.5, Standalone SDK

Primary Applications

• Corporate Offices: Enhances office security with reliable entry management and employee attendance tracking.

• Manufacturing Facilities: Provides durable and efficient access control for factory floors and staff zones.

• Retail & Warehousing: Secures inventory by controlling access to stock rooms and restricted areas.

• Educational Institutions: Enables secure, multi-level access management for faculty and administrative areas.

• SMEs: A versatile and cost-effective biometric solution for small to medium-sized businesses.

Conclusion

Dream Technologies BD is a trusted supplier of the ZKTeco F18 Fingerprint & RFID Access Control Terminal in Bangladesh. We provide consultation, system design, professional installation, configuration, and reliable after-sales support to help your organization deploy a secure and efficient biometric access control system.
