ZKTeco F22 Fingerprint Time Attendance & Access Control Terminal

Description

Product Name: ZKTeco F22 Fingerprint Time Attendance & Access Control Terminal

Manufacturer: ZKTeco

Product Overview

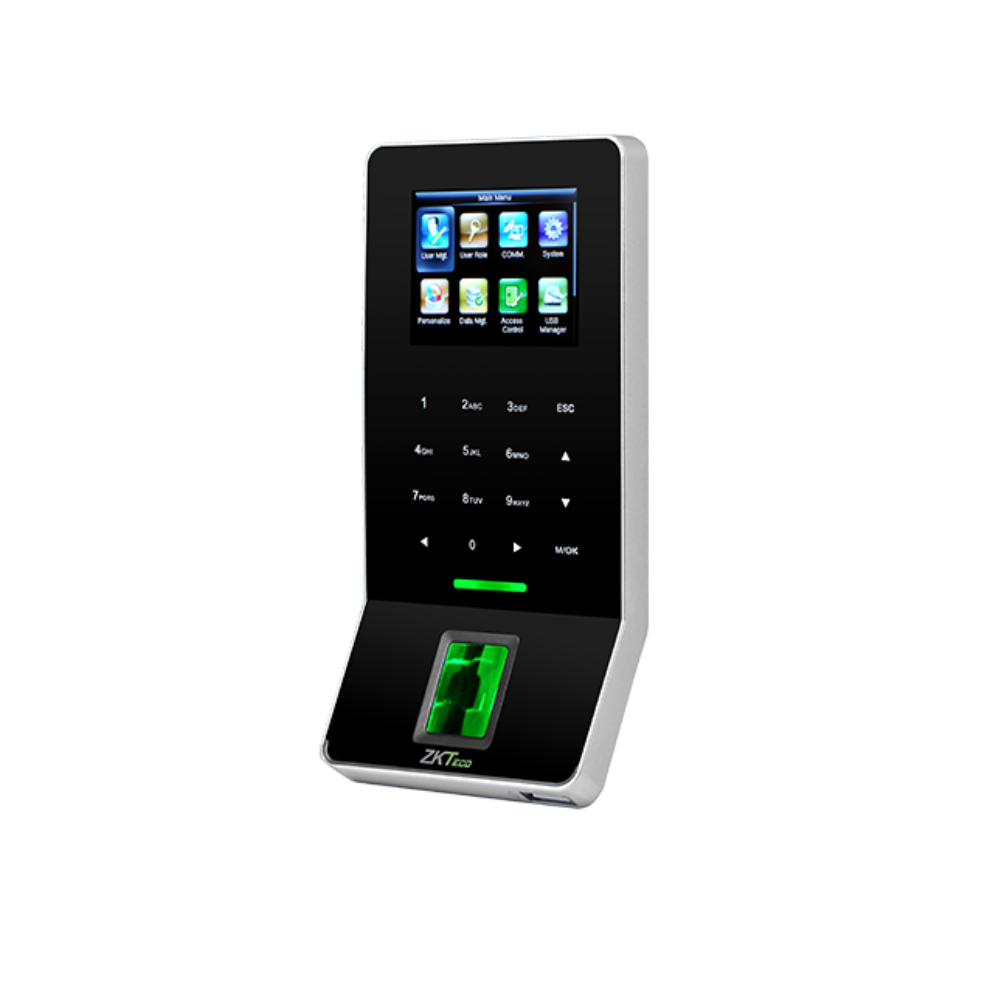

The ZKTeco F22 is an ultra-thin, elegant biometric terminal designed for professional time attendance and access control. Featuring ZKTeco’s high-performance Z-ID fingerprint sensor and the industry’s fastest commercial-based matching algorithm, the F22 ensures exceptional reliability, precision, and verification speed. Its sleek, compact design—measuring just 19.4 mm in depth—makes it a perfect fit for modern office environments. With built-in Wi-Fi and multiple communication interfaces, it offers flexible installation options for both standalone use and integration with existing third-party security systems.

Key Features

• Advanced Z-ID Fingerprint Sensor: Utilizes high-quality infrared detection for accurate fingerprint scanning, even with less-defined prints.

• Ultra-Thin Design: Features an elegant, slim profile with a vibrant 2.4-inch TFT color display and responsive touch keys.

• Flexible Connectivity: Supports Wi-Fi, TCP/IP, and various serial interfaces for easy network deployment, minimizing the need for complex cabling.

• Professional Access Control: Includes full access control features such as anti-passback, third-party electric lock integration, door sensor support, and an exit button interface.

• High Performance: Powered by the ZKFinger V10.0 algorithm for fast and reliable biometric matching.

• Easy Data Management: Compatible with ZKBio Access IVS for centralized attendance reporting and secure biometric management.

Technical Specifications

• Display: 2.4-inch TFT LCD Color Screen

• Fingerprint Capacity: 3,000

• Card Capacity: 5,000 (Optional ID or Mifare card)

• Transaction Capacity: 30,000

• Sensor: Z-ID Fingerprint Sensor

• Biometric Algorithm: ZKFinger V10.0

• Communication: TCP/IP, Wi-Fi, USB Host, RS232, RS485

• Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm

• Wiegand Signal: Input & Output

• Auxiliary Input: 1ea for linkage function

• Standard Functions: DST, Automatic Status Switch (Optional), Record Query, T9 Input, 14-digit User ID (Optional), Anti-passback, Scheduled-Bell, Printer (Optional), ADMS

• Power Supply: 12V DC, 3A

• Dimensions (L×W×H): 158.5 mm × 78.0 mm × 19.4 mm

• Operating Temperature: 0°C to 45°C

• Operating Humidity: 20% to 80%

Primary Applications

• Corporate Offices: Ideal for streamlining employee attendance tracking and securing executive or administrative zones.

• Retail & Showrooms: Provides secure access to stock rooms while monitoring staff working hours.

• Educational Institutions: Efficiently manages faculty and staff attendance and controls access to sensitive areas like labs.

• Manufacturing Facilities: Offers a robust, compact solution for shift management and factory-floor security.

• Small & Medium Enterprises (SMEs): A cost-effective, space-saving choice for businesses requiring high-security biometric management.

Conclusion

Dream Technologies BD is a trusted supplier of the ZKTeco F22 Fingerprint Terminal in Bangladesh. We provide consultation, system design, professional installation, configuration, and reliable after-sales support to help your organization deploy a secure and efficient biometric attendance system.
