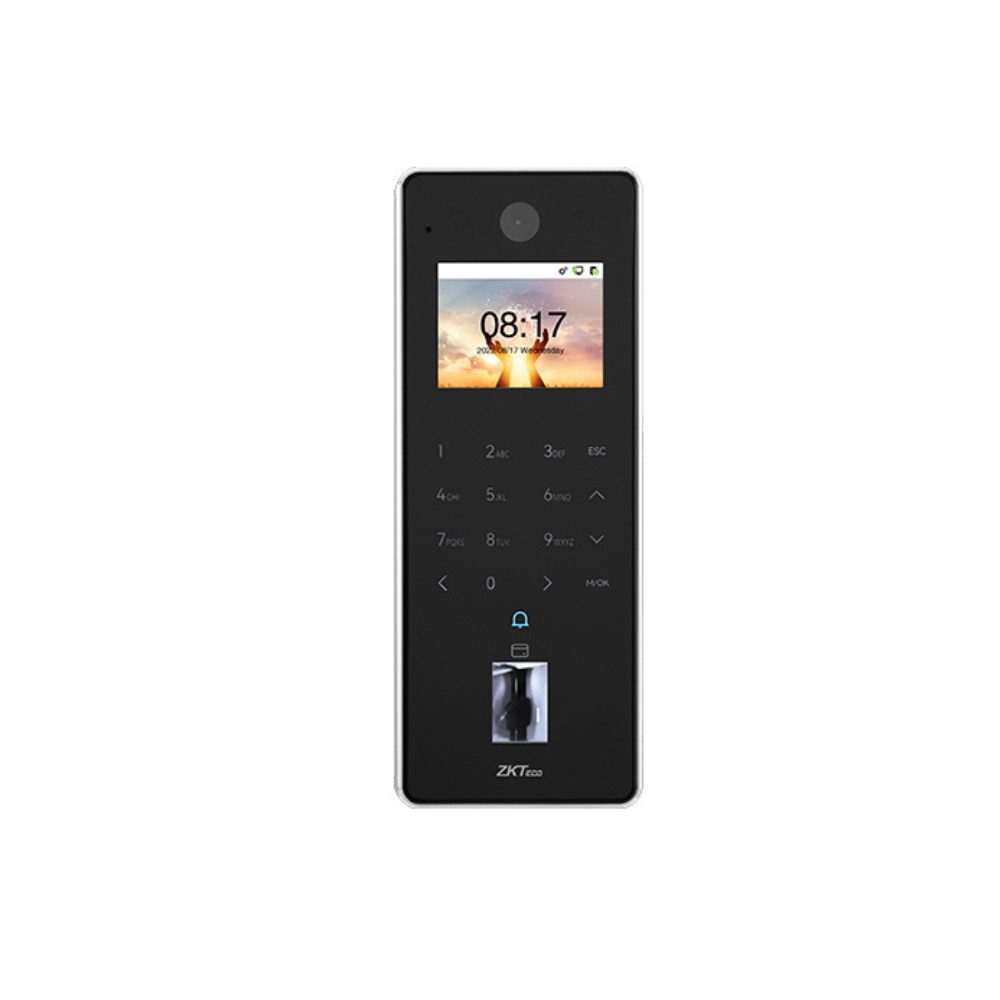

ZKTeco F35 Fingerprint Access Control (Wi-Fi)

Description

Product Name: ZKTeco F35 Fingerprint Access Control (Wi-Fi)

Manufacturer: ZKTeco

Product Overview

The ZKTeco F35 is a standalone access control terminal featuring a video intercom function. It adopts in-glass fingerprint verification, offering secure biometric authentication without a dedicated button. The F35 also supports multiple tech card modules for verification and can function as a time and attendance terminal when integrated with ZKBioTime software. Notable features include a 2.4-inch color monitor, a 2MP camera, a built-in microphone, and speakers for one-way video intercom via an indoor monitor with SIP protocol. Supporting the ONVIF protocol, its firmware features AC push and can convert to TA push. Its aluminium alloy frame offers robust protection, and it has attained an IP65 protection rating, ensuring operation in adverse weather.

Key Features

• Secure Authentication: Features in-glass fingerprint verification (Z-ID) with a verification speed of less than 0.3 seconds.

• Video Intercom & Surveillance: Equipped with a 2MP camera, 2.4-inch color monitor, built-in microphone, and speakers for one-way video intercom via SIP protocol; supports ONVIF.

• Robust Build: Aluminium alloy frame with an IP65 (waterproof/dustproof) and IK04 (vandal-resistant) rating for outdoor use.

• Large Capacity: Supports 10,000 users, 10,000 cards, 10,000 fingerprint templates, and 500,000 transaction logs.

• Flexible Connectivity: Supports TCP/IP, Wi-Fi (2.4 GHz), Wiegand (Input & Output), and RS485.

• Advanced Features: Supports ADMS, Webserver, Anti-passback, Tamper Switch Alarm, and multiple verification methods.

Technical Specifications

• Display: 2.4-inch TFT Color LCD Screen (720×1280)

• Camera: 2MP (Diagonal 145°, Horizontal 118°, Vertical 62°)

• Hardware: 1.2GHz Dual Core CPU, 256MB RAM, 512MB ROM

• User/Card/Fingerprint Capacity: 10,000 each

• Transaction Capacity: 500,000

• Communication: TCP/IP, Wi-Fi (IEEE802.11a/g/n), Wiegand, RS485

• Access Control Interfaces: Aux Inputs, Aux Outputs, Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell

• Protection: IP65, IK04

• Power Supply: DC 12V 3A

• Operating Temperature: -5°C to 55°C

• Operating Humidity: 10% to 90% RH

• Dimensions: 195 mm × 75 mm × 25.35 mm

• Net Weight: 0.52 Kg

Conclusion

Dream Technologies BD is a trusted supplier of the ZKTeco F35 terminal in Bangladesh. We provide professional installation, software configuration, and dedicated after-sales support to ensure your business in Bangladesh enjoys a seamless and secure attendance management experience.
