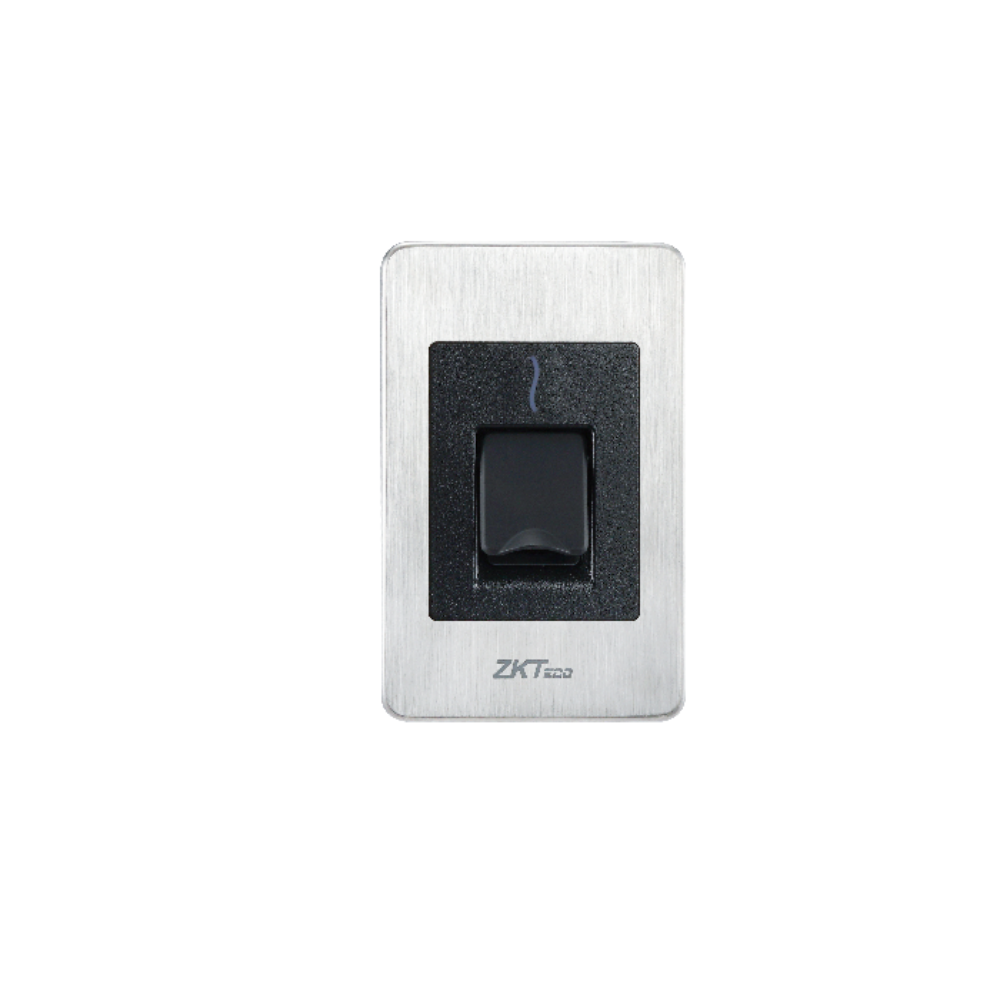

ZKTeco FR1500S Fingerprint & RFID Biometric Reader

Description

Product Name: ZKTeco FR1500S Fingerprint & RFID Biometric Reader

Manufacturer: ZKTeco

Product Overview

The ZKTeco FR1500S is a robust, high-security biometric slave reader designed for demanding access control environments. Featuring the advanced Z-ID fingerprint sensor, it delivers exceptional performance and accuracy in image capture. With a premium SUS304 stainless steel finish combined with durable ABS plastic, this reader offers an elegant, professional look while maintaining an IP65 ingress protection rating for reliable outdoor or indoor operation. It supports multiple card technologies, including standard ID and optional IC/HID cards, ensuring high flexibility for diverse security requirements.

Key Features

• Advanced Z-ID Sensor: Utilizes an industry-leading sensor (500 DPI) for superior, high-speed fingerprint recognition.

• High-Security Build: Constructed with premium SUS304 stainless steel, providing enhanced durability and a sleek aesthetic.

• Multi-Card Support: Extremely versatile, supporting 125 kHz ID, 13.56 MHz IC, and various optional HID and encrypted DESFire card technologies.

• Weather-Resistant: IP65-rated housing protects the device against dust and water, making it suitable for outdoor use.

• High-Speed Authentication: Rapid fingerprint verification in less than 0.3 seconds.

• Easy Installation: Designed for wall-mounting and is fully compatible with standard single-gang junction boxes.

Technical Specifications

• Fingerprint Sensor: Z-ID Optical Sensor (500 DPI)

• Authentication Method: Fingerprint / Card

• Card Type: 125 kHz ID (Standard), 13.56 MHz IC (Optional), HID Proxy/iCLASS (Optional)

• Biometric Verification Speed: < 0.3s

• Biometric Algorithm: ZKFingerprint V10.0 (Default) / V13.0

• FAR / FRR: ≦ 0.0001% / ≦ 0.01%

• Communication: ZKTeco RS485 / OSDP (Ver 2.1.7)

• Visual/Audio Indicator: LED (Blue/Green/Red) and Beeper

• Power Supply: 9V DC to 24V DC

• Ingress Protection: IP65

• Operating Temperature: -10°C to +45°C

• Operating Humidity: 10% to 90% RH (Non-condensing)

• Dimensions (L×W×H): 121 mm × 77.3 mm × 38 mm

• Weight: 0.20 kg (Net) / 0.26 kg (Gross)

• Housing Material: SUS304 Stainless Steel & ABS Plastic

• Certifications: ISO14001, ISO9001, CE, FCC, RoHS

Primary Applications

• High-Security Corporate Zones: Ideal for main entrance security and executive cabins where stainless steel finish is preferred.

• Government & Financial Institutions: Provides a reliable and secure biometric verification point for sensitive areas.

• Industrial Access Control: Perfect for facility gates and secure zones that require weather-proof and durable hardware.

• Smart Building Management: Seamlessly integrates into modern access control networks for centralized management.

Conclusion
