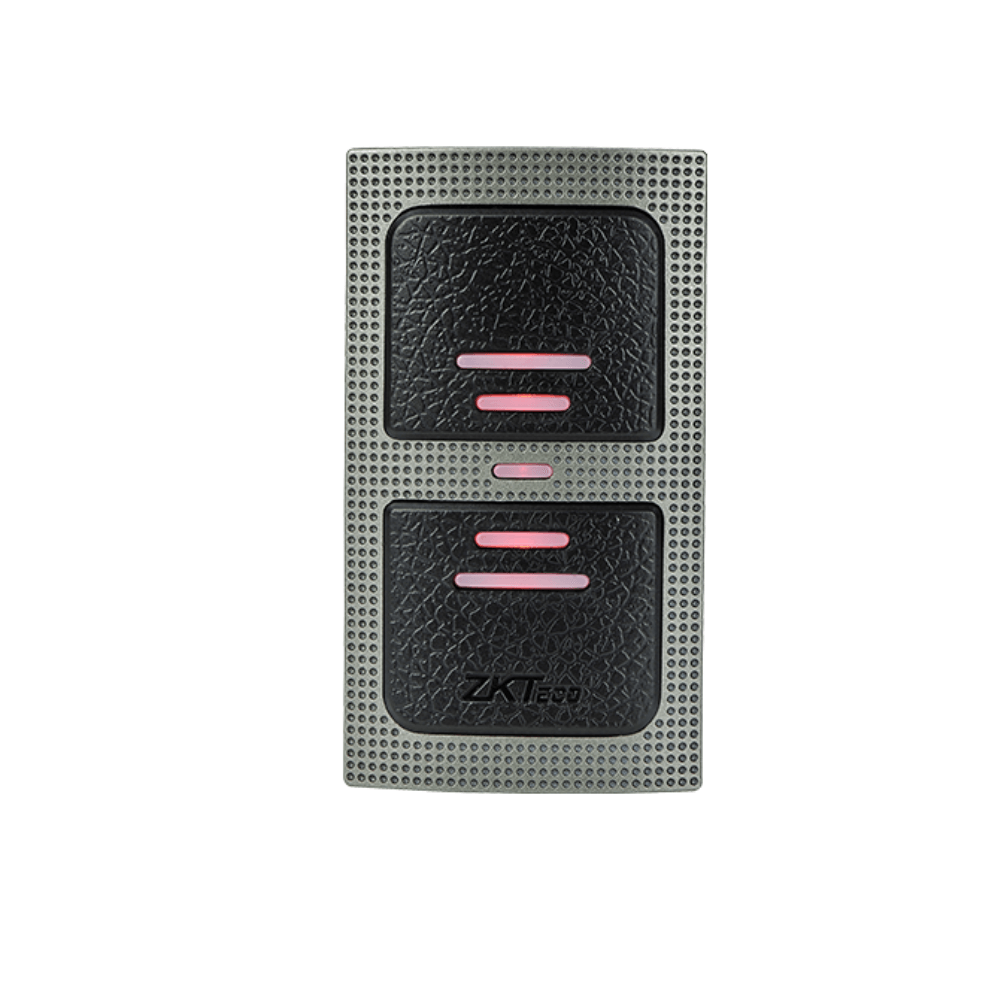

ZKTeco KR500 Wiegand Card Reader

Description

Product Name: ZKTeco KR500 Wiegand Card Reader

Manufacturer: ZKTeco

Product Overview

The ZKTeco KR500 is a reliable and compact Wiegand card reader designed for secure access control applications. Built with durable ABS+PC texture material and rated with IP65 ingress protection, this reader is suitable for both indoor and outdoor installations. It offers rapid card reading capabilities and is compatible with standard Wiegand protocols, making it an efficient solution for various security systems.

Key Features

• Fast Authentication: Provides a quick reading time of ≤ 200ms.

• Durable Design: IP65-rated weather-resistant housing (for KR500-E/M) ensures performance in challenging environments.

• Visual & Audio Feedback: Equipped with red and green LEDs, as well as an integrated beeper for status indication.

• Flexible Integration: Features external LED and buzzer control ports for customized system integration.

Technical Specifications

• Read Range: Up to 10cm (KRxxx-E) / Up to 5cm (KRxxx-M)

• Reading Time: ≤ 200ms

• Output Format: 26bit Wiegand (KRxxx-E Default) / 34bit Wiegand (KRxxx-M Default)

• Power Supply: DC 6-14V / Max. 70mA

• LED Indicators: Red and Green LEDs

• Beeper: Yes

• Material: ABS + PC with texture

• Operating Temperature: -20°C to 65°C

• Operating Humidity: 10% to 90% (non-condensing)

• Ingress Protection: IP65 (KR500-E/M)

Primary Applications

• Corporate Offices: Enhances building security by managing employee entry points.

• Residential Complexes: Provides secure and convenient access control for apartment buildings.

• Industrial Facilities: Ensures restricted access to sensitive areas and server rooms.

• Commercial Buildings: Ideal for time-attendance and access control management in retail or business spaces.

Conclusion

Dream Technologies BD supplies the ZKTeco KR500 Wiegand Card Reader throughout Bangladesh. We provide product consultation, quotation assistance, installation guidance, and after-sales support for educational institutions, corporate offices, industrial facilities, and government organizations across Bangladesh.

Contact our team for product information, quotation assistance, and after-sales support:

• Phone: +8801737118246

• Email: [email protected]
