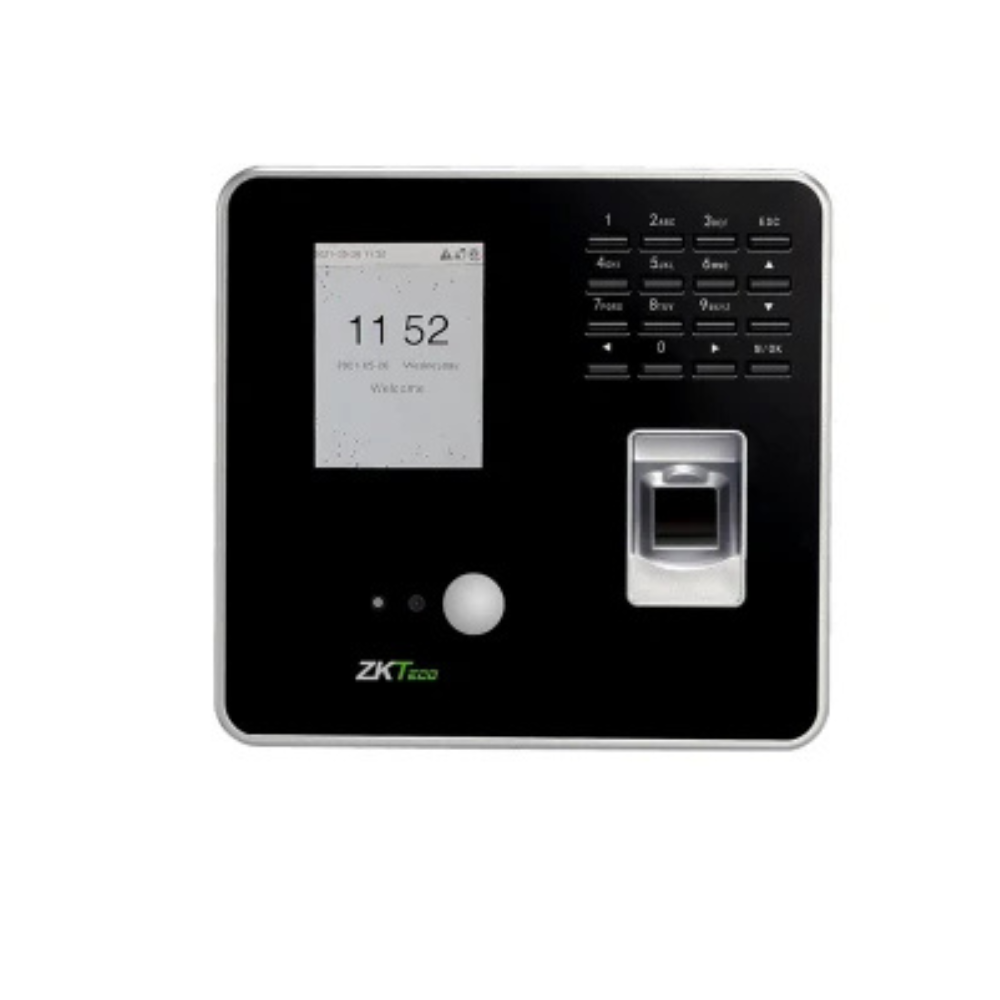

ZKTeco M2-LR Fingerprint Terminal (Wi-Fi)

Description

Product Name: ZKTeco M2-LR Fingerprint Terminal (Wi-Fi)

Manufacturer: ZKTeco

Product Overview

The ZKTeco M2-LR is a dedicated time and attendance terminal that also supports professional access control functions. Designed specifically for small and medium-sized businesses (SMEs), it provides a reliable and cost-effective solution for workforce management. With a sleek 2.8-inch TFT color display, a powerful Dual-Core 1GHz processor, and a stable Linux-based operating system, the M2-LR ensures high-performance and seamless daily operations for any professional environment.

Key Features

• Multiple Authentication Methods: Supports Fingerprint verification, RFID Card entry, and Password authentication for maximum flexibility.

• Fast & Secure Verification: Utilizes the high-performance ZK Optical Fingerprint Sensor with ZKFingerprint V13.0 algorithm for rapid identification (less than 1 second).

• Flexible Connectivity: Equipped with TCP/IP for wired networks and optional Wi-Fi support for seamless wireless data transmission.

• Professional Access Control: Supports interfaces for Electric Lock, Door Sensor, and Exit Button, enabling standalone access control deployment.

• Robust Data Capacity: Supports up to 3,000 users, 3,000 fingerprint templates, 3,000 cards, and 150,000 transaction logs.

• Backup Power: Features an optional 2,000mAh lithium backup battery, providing up to 4 hours of continuous operation during power outages.

Technical Specifications

• Display: 2.8-inch TFT Color LCD Screen (320×240)

• Operating System: Linux

• Processor: Dual Core @ 1GHz

• Memory: 512MB RAM / 8GB ROM

• Authentication Methods: Fingerprint / RFID Card / Password

• User Capacity: 3,000 (1:N)

• Fingerprint Capacity: 3,000 (1:N)

• Card Capacity: 3,000 (1:N)

• Transaction Capacity: 150,000

• Fingerprint Sensor: ZK Optical Sensor

• Biometric Algorithm: ZKFingerprint V13.0 (Standard)

• False Acceptance Rate (FAR): ≤ 0.0001% (Fingerprint)

• False Rejection Rate (FRR): ≤ 0.1% (Fingerprint)

• Card Type: 125kHz ID Card (Standard) / 13.56MHz IC Card (Optional)

• Communication: TCP/IP, USB Host (Type A), Optional Wi-Fi (IEEE 802.11 b/g/n/ax)

• Access Control Interface: Electric Lock, Door Sensor, Exit Button

• Standard Functions: ADMS, DST, Photo Capture, Event Photo Capture, 14-digit User ID, Record Query, Scheduled Bell, Tamper Switch Alarm, Auto Status Switch, T9 Input, HTTPs/SSH

• Power Supply: DC 12V 3A

• Backup Battery (Optional): 2,000mAh Lithium Battery (Up to 4 Hours Operating, 7 Hours Standby, ~3 Hours Charging)

• Installation: Wall Mount (Compatible with Asian Gang Box / Single Gang Box)

• Certifications: ISO 9001, ISO 14001, CE, FCC, RoHS

• Operating Temperature: -5°C to 45°C

• Operating Humidity: 10% to 90% RH (Non-condensing)

• Dimensions (L×W×H): 154 mm × 138 mm × 34 mm

Software Compatibility

• On-Premise: ZKBio Time

• Cloud/Mobile: ZKBio Zlink

Conclusion

Dream Technologies BD is a trusted supplier of the ZKTeco M2-LR terminal in Bangladesh. We provide professional installation, software configuration, and dedicated after-sales support to ensure your business enjoys a seamless and secure attendance management experience.
