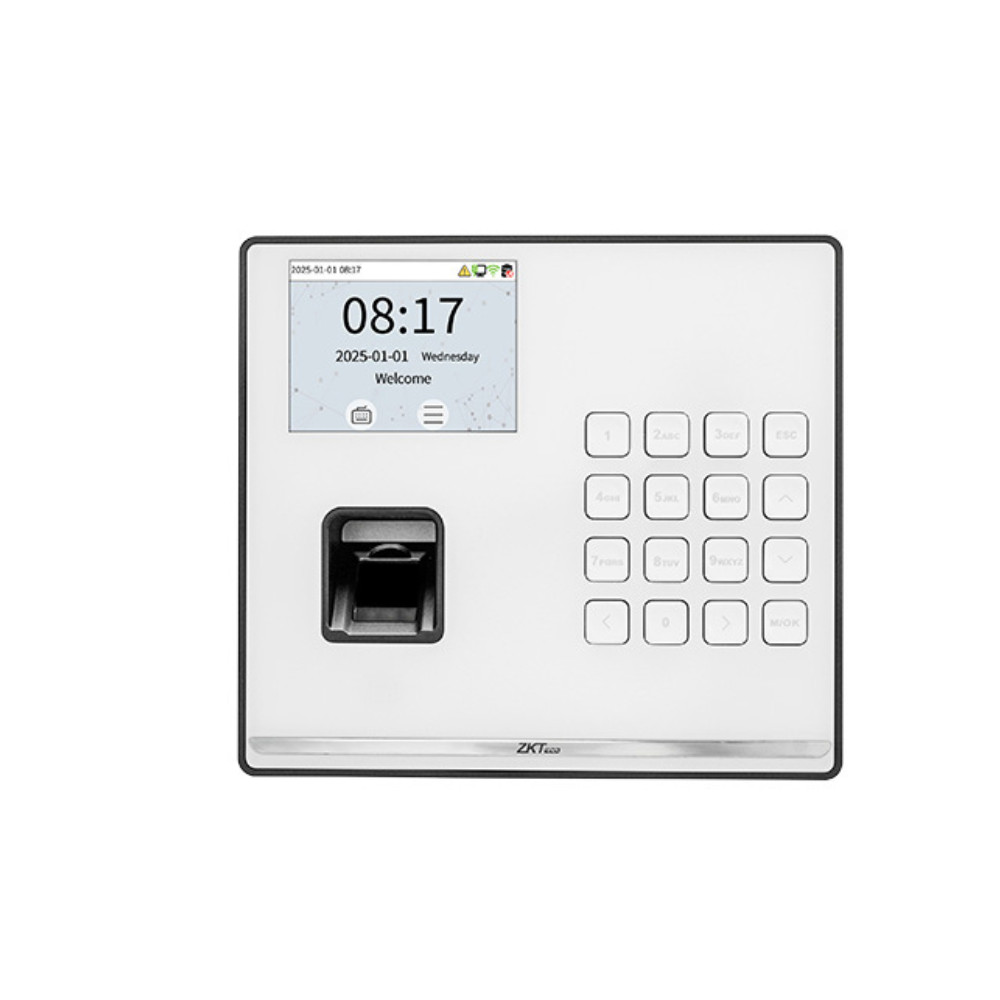

ZKTeco SenseFP M2 Access Control Terminal

Description

Product Name: ZKTeco SenseFP M2 Access Control Terminal

Manufacturer: ZKTeco

Product Overview

The ZKTeco SenseFP M2 is a robust time, attendance, and access control terminal specifically designed to help small and medium-sized businesses (SMEs) manage their workforce reliably and cost-effectively. Featuring a high-performance Dual-Core 1GHz processor and a 2.8-inch TFT display, this device ensures efficient operation. With integrated TCP/IP communication and optional Wi-Fi connectivity, it allows for seamless network integration and rapid data transmission in both wired and wireless environments.

Key Features

• Flexible Authentication: Offers versatile verification options, including fingerprint, RFID card, and password entry via the 16-key physical keypad.

• High-Speed Processing: Equipped with a Dual-Core 1GHz CPU and 512MB RAM for swift, responsive biometric authentication in under 1 second.

• Smart Connectivity: Features TCP/IP interface and optional Wi-Fi support for secure communication and efficient data synchronization.

• Access Control Readiness: Includes comprehensive interfaces for electric locks, door sensors, and exit buttons, making it a complete security solution.

• Reliable Backup Power: Supports an optional 2,000mAh lithium backup battery, providing a minimum of 4 hours of continuous operation during power outages.

• Advanced Management: Compatible with ZKBio Zlink (Mobile App & Cloud) and ZKBio Time (On-Premise) software for professional attendance management.

Technical Specifications

• Display: 2.8-inch TFT Color LCD Screen (320 × 240)

• Operating System: Linux

• Processor: Dual-Core 1GHz

• Memory: 512MB RAM / 8GB ROM

• Authentication Methods: Fingerprint / RFID Card / Password

• Fingerprint Sensor: ZK Optical Sensor

• Biometric Algorithm: ZKFingerprint V13.0 (Standard) / V10.0 (Optional)

• Fingerprint Authentication Speed: <1 second

• False Acceptance Rate (FAR): ≤ 0.0001% (Fingerprint)

• False Rejection Rate (FRR): ≤ 0.1% (Fingerprint)

• User/Fingerprint/Card Capacity: 3,000 (1:N)

• Transaction Capacity: 150,000

• Communication: TCP/IP, USB (Type A), Optional Wi-Fi (IEEE802.11b/g/n/ax)

• Access Control Interface: Electric Lock, Door Sensor, Exit Button

• Standard Functions: ADMS, DST, Photo Capture, Event Photo Capture, 14-digit User ID, Record Query, Schedule Bell, Tamper Switch Alarm, Auto Status Switch, Multiple Auth Methods, HTTPs/SSH Backend, T9 Input

• Power Supply: DC 12V 1.5A

• Backup Battery (Optional): 2,000 mAh (Min. 4 hours continuous operation)

• Installation: Wall Mount (Compatible with Asian Gang Box / Single Gang Box)

• Gross Weight: 0.99 kg

• Certifications: ISO 9001, ISO 14001, CE, FCC, RoHS

• Operating Environment: -5°C to 45°C; 10%–90% RH

• Dimensions (L×W×H): 154 mm × 138 mm × 34 mm

Primary Applications

• Small & Medium Enterprises (SMEs): Provides an affordable, high-capacity solution for workforce management.

• Corporate Offices: Ideal for securing administrative entry points while tracking employee attendance.

• Retail Stores: Simplifies staff time tracking and entry security in high-traffic retail outlets.

• Educational Institutions: Efficiently manages staff and faculty attendance with secure access control.

• Manufacturing Facilities: Offers a durable and reliable system for factory-floor attendance and zone security.

Conclusion

Dream Technologies BD is a trusted supplier of the ZKTeco SenseFP M2 Access Control Terminal in Bangladesh. We provide consultation, system design, installation, configuration, and reliable after-sales support to help organizations deploy secure biometric attendance and access control solutions.
