ABB 1600A 20kA VD4 VCB Best price in Bangladesh

Description

Product Name: ABB 1600A 20kA VD4 VCB Best price in Bangladesh

Manufacturer: ABB

Product Overview

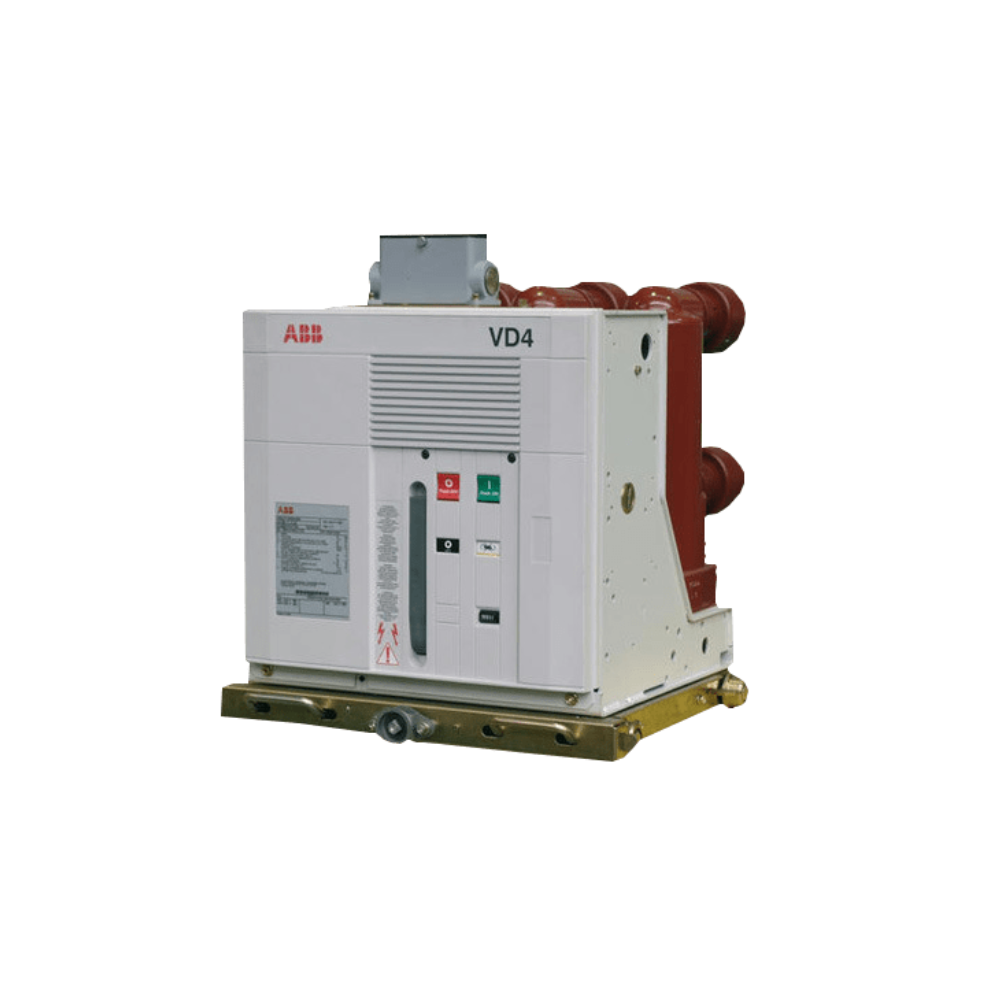

The ABB VD4/P Medium Voltage Vacuum Circuit-Breaker (VCB) series (Model: VD4/P 12.16.20 p210) utilizes advanced vacuum interruption technology. Engineered as an indoor medium-voltage circuit breaker designed in accordance with IEC 62271-100, this withdrawable version delivers robust and reliable switching performance for medium-voltage switchgear installations.

Key Features

• Vacuum Interruption Technology: Employs vacuum interrupters for safe, efficient, and reliable current interruption.

• Withdrawable Design: Specifically engineered for withdrawable configurations to match switchgear requirements.

• Pole-Centre Distance: Fixed at 210 mm (p210) as precisely specified for this exact model configuration.

• Standard Compliance: Designed in accordance with IEC 62271-100.

Technical Specifications

• Manufacturer: ABB

• Product Series: VD4/P

• Exact Model: VD4/P 12.16.20 p210

• Rated Voltage ($U_r$): 12 kV

• Rated Current ($I_r$): 1600 A at 40°C

• Rated Short-Circuit Breaking Current ($I_{sc}$): 20 kA

• Rated Short-Time Withstand Current ($I_k$): 20 kA / 3 s

• Rated Making Capacity ($I_p$): 50 kA peak

• Power-Frequency Withstand Voltage ($U_d$): 28 kV / 1 min

• Lightning Impulse Withstand Voltage ($U_p$): 75 kV

• Pole Centre Distance ($P$): 210 mm (p210)

• Technology: Vacuum circuit breaker

• Installation: Withdrawable

• Frequency ($f_r$): 50/60 Hz

• Standard Service Temperature: −5°C to +40°C

• Standard: IEC 62271-100

Conclusion

The ABB VD4/P 12.16.20 p210 VCB provides a standardized medium-voltage switching solution for withdrawable switchgear applications, with a 210 mm pole-centre distance specified for this exact model configuration.
