ABB 2000A 20kA VD4 VCB Best price in Bangladesh

Description

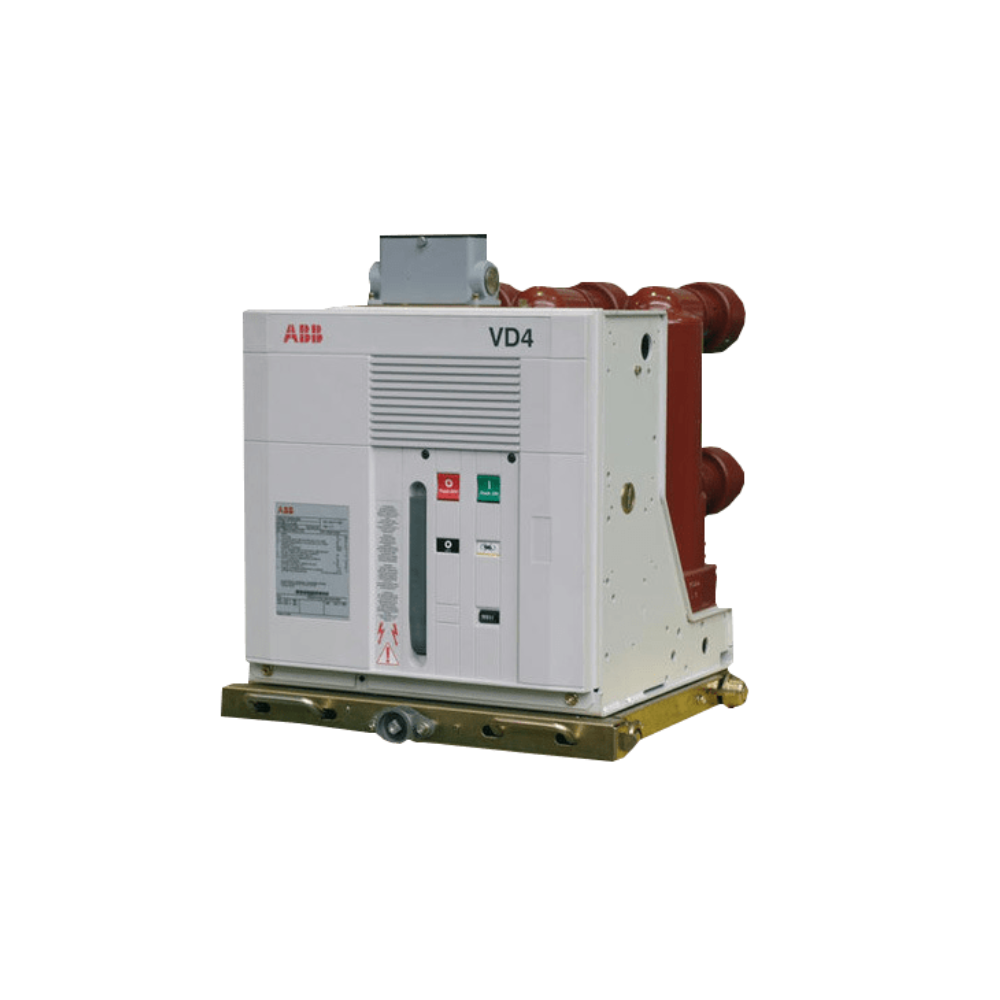

Product Name: ABB 2000A 20kA VD4 VCB Best price in Bangladesh

Manufacturer: ABB

Product Overview

The ABB VD4/P Medium Voltage Vacuum Circuit-Breaker (VCB) series (Model: VD4/P 12.20.20 p210) utilizes advanced vacuum interruption technology. Engineered as an indoor vacuum circuit breaker conforming to IEC 62271-100 standards, this withdrawable version delivers robust and reliable switching performance for medium-voltage switchgear installations.

Key Features

• Vacuum Interruption Technology: Employs vacuum interrupters for safe, efficient, and reliable arc extinguishing.

• Withdrawable Design: Specifically engineered for withdrawable configurations to match switchgear requirements.

• Pole-Centre Distance: Fixed at 210 mm (p210) as precisely specified for this exact model configuration.

• Standard Compliance: Conforms strictly to IEC 62271-100 international standards.

Technical Specifications

• Manufacturer: ABB

• Series: VD4/P

• Exact Type: VD4/P 12.20.20 p210

• Technology: Vacuum circuit breaker

• Installation: Withdrawable

• Rated Voltage ($U_r$): 12 kV

• Rated Frequency ($f_r$): 50–60 Hz

• Rated Normal Current ($I_r$): 2000 A at 40°C

• Rated Short-Circuit Breaking Current ($I_{sc}$): 20 kA

• Rated Short-Time Withstand Current ($I_k$): 20 kA / 3 s

• Making Capacity ($I_p$): 50 kA peak

• Power-Frequency Withstand Voltage ($U_d$): 28 kV / 1 min

• Lightning Impulse Withstand Voltage ($U_p$): 75 kV

• Pole Centre Distance ($P$): 210 mm

• Operating Sequence: O–0.3 s–CO–15 s–CO

• Opening Time: 33–60 ms

• Arcing Time: 10–15 ms

• Total Breaking Time: 43–75 ms

• Closing Time: 60–80 ms

• Standard: IEC 62271-100

• Standard Service Temperature: −5°C to +40°C

Conclusion

The ABB VD4/P 12.20.20 p210 VCB provides a standardized, high-performance medium-voltage switching solution. Verifying the exact pole-centre configuration (p210) ensures seamless physical integration and compliance with your specific switchboard design.
