Description
Product Name: ABB 2000A 25kA VD4 VCB Best price in Bangladesh
Manufacturer: ABB
Product Overview

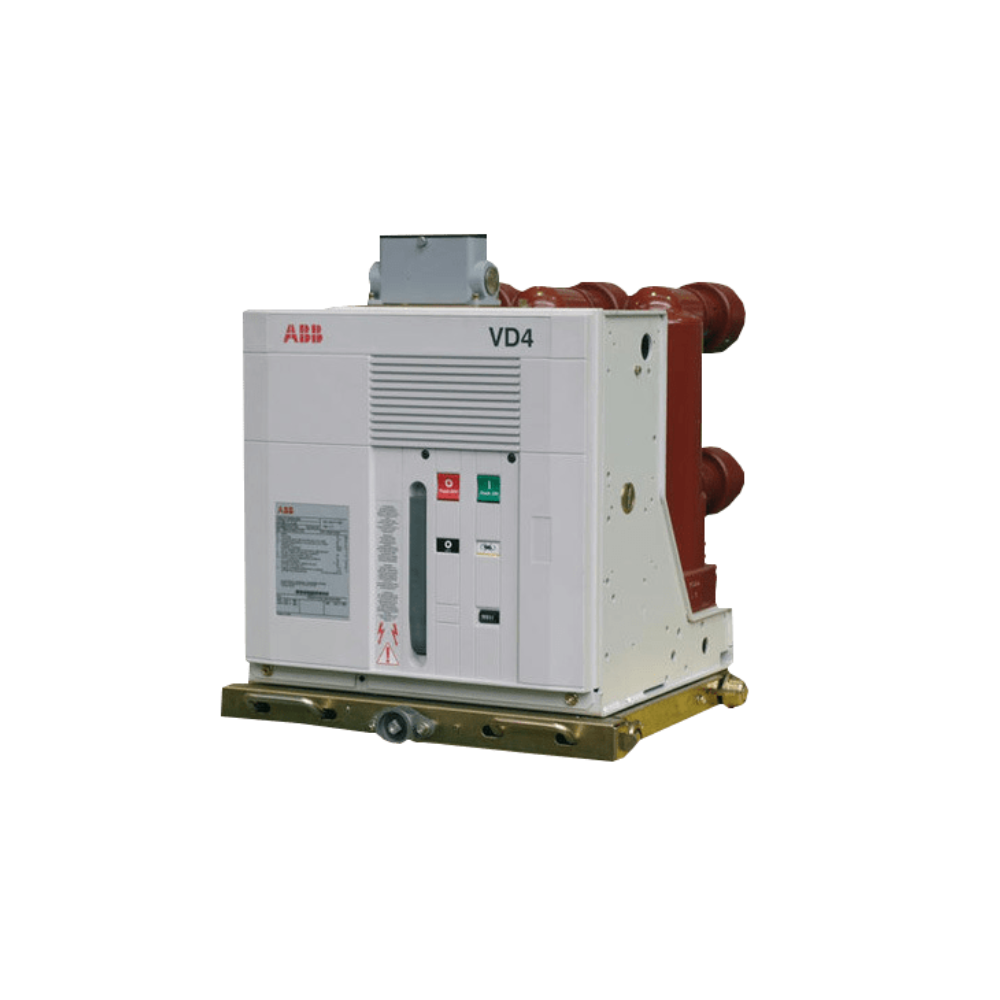

The ABB VD4/P Medium Voltage Vacuum Circuit-Breaker (VCB) series (Model: VD4/P 12.20.25 p210) utilizes advanced vacuum interruption technology. Engineered for high reliability and safety in medium-voltage power distribution systems, this withdrawable version provides robust performance for switchgear installations.
Key Features
-
Vacuum Interruption Technology: Employs vacuum interrupters for safe and efficient current interruption.
-
Withdrawable Design: Specifically built for withdrawable configurations to match switchgear requirements.
-
Pole-Centre Distance:Features a 210 mm pole-centre distance (
p210) as specified for the exact ABB model. -
Circuit-Breaker Family: Belongs to the trusted ABB VD4 Medium Voltage Vacuum Circuit Breaker series.
Technical Specifications
-
Manufacturer: ABB
-
Product Series: VD4
-
Circuit Breaker: VD4/P
-
Exact Type: VD4/P 12.20.25 p210
-
Rated Voltage ($U_r$): 12 kV
-
Rated Frequency: 50–60 Hz
-
Rated Current ($I_r$): 2000 A at 40°C
-
Rated Short-Circuit Breaking Current ($I_{sc}$): 25 kA
-
Making Capacity ($I_p$): 63 kA peak
-
Rated Short-Time Withstand Current ($I_k$): 25 kA / 3 s
-
Power-Frequency Withstand Voltage ($U_d$): 28 kV / 1 min
-
Lightning Impulse Withstand Voltage ($U_p$): 75 kV
-
Pole Centre Distance: 210 mm
-
Version: Withdrawable
-
Technology: Vacuum interruption
-
Operating Sequence: O–0.3 s–CO–15 s–CO
-
Opening Time: 33–60 ms
-
Arcing Time: 10–15 ms
-
Total Breaking Time: 43–75 ms
-
Closing Time: 60–80 ms
-
Standard Service Temperature: −5°C to +40°C
Conclusion
The ABB VD4/P 12.20.25 p210 VCB provides a reliable, standardized medium-voltage switching solution designed for robust switchgear integration and enhanced grid safety.
Contact Us
For pricing inquiries, system design, and stock availability in Bangladesh, get in touch with our team:
-
Phone: +8801737118246
-
Email: [email protected]
