ABB 20A 6kA TP MCB Best Price in Bangladesh

Description

Product Name: ABB 20A 6kA TP MCB Best Price in Bangladesh

Manufacturer: ABB

Product Overview

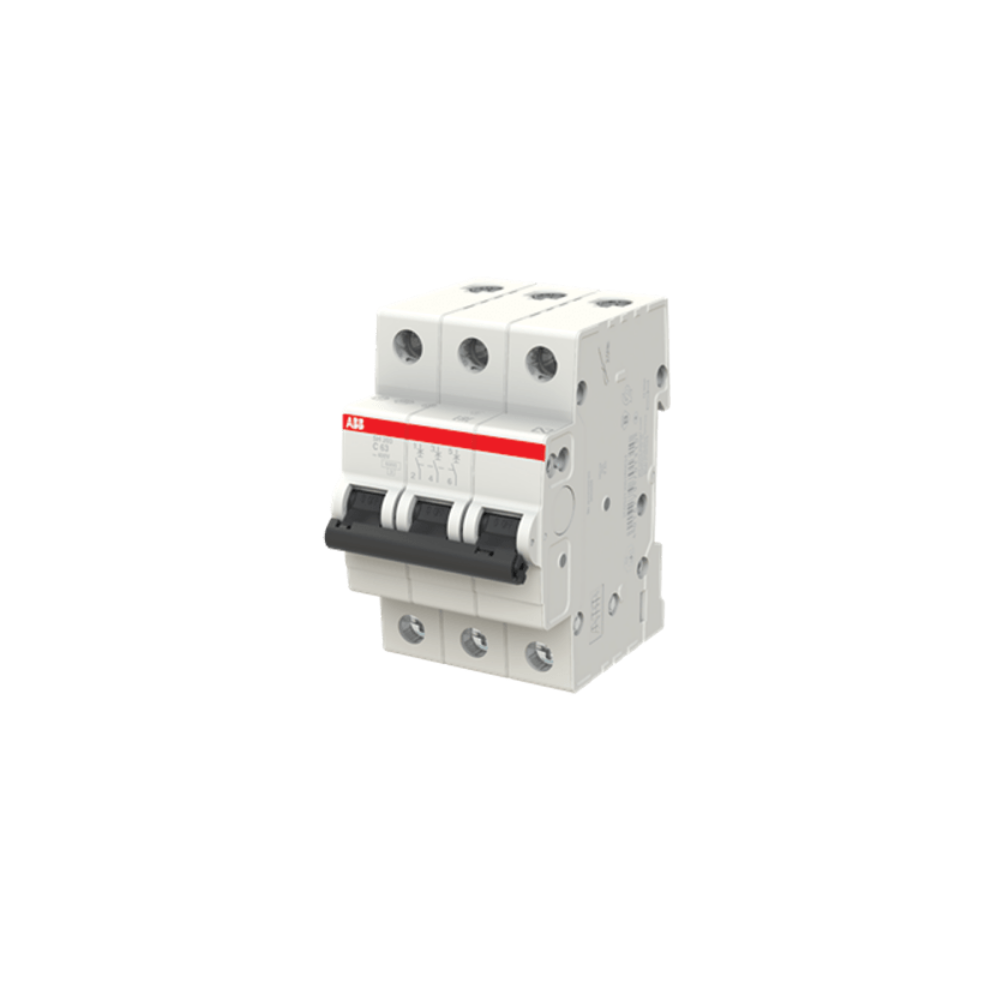

The ABB SH203-C20 (Extended Product Type: SH203-C20, Product ID: 2CDS213001R0204) is a 3-pole miniature circuit breaker engineered for dependable circuit protection in low-voltage electrical distribution networks. Built to international standards, this 20 A device offers reliable thermal-magnetic tripping mechanisms for overload and short-circuit protection (6 kA breaking capacity) with a C-curve tripping characteristic, making it suitable for low-voltage electrical distribution applications across Bangladesh.

Key Features and Benefits

• Rated Current: Configured with a 20 A rated current capacity tailored for sub-distribution and load panels.

• Tripping Characteristic C: Optimized with a C-curve tripping characteristic, handling circuits with moderate inrush current surges effectively.

• Short-Circuit Capacity: Features a robust 6 kA interruption rating (at 400 V AC) conforming to IEC 60898-1 standards.

• Compact 3-Pole Design: Integrated 3P configuration occupying 3 modular spacings (52.5 mm width) for efficient switchboard layouts.

• EcoSolutions Profile: Features an EcoSolutions profile with a 92.1% recyclability rate according to EN45555 standards.

Technical Specifications

• Product Line: ABB Miniature Circuit Breakers (SH200 Series)

• Extended Product Type: SH203-C20

• Product ID / Catalog No.: 2CDS213001R0204

• EAN / UPC: 4016779631358

• Number of Poles: 3-Pole (3P)

• Rated Current ($I_n$): 20 A

• Tripping Characteristic: C

• Rated Short-Circuit Capacity: 6 kA (400 V AC)

• Rated Operational Voltage: 400 V AC (acc. to IEC 60898-1)

• Energy Limiting Class: 3

• Rated Frequency: 50 / 60 Hz

• Electrical Endurance: 20,000 AC cycles

• Mechanical Endurance: 20,000 cycles

• Resistance to Vibrations: 20 Cycles with Load 0.8 In: 5g 5 … 150 … 5 Hz

• Resistance to Shock: 25g 2 shocks 13 ms (acc. to IEC 60068-2-27)

• Terminal Type & Capacity: Screw Terminals (Cage Terminal), Conductor up to 25 mm²

• Tightening Torque: 2 N·m

• Degree of Protection: IP20 (Enclosure with Cover IP40)

• Ambient Air Temperature: Operation: -25 … +55 °C | Storage: -40 … +70 °C

• Dimensions (W x H x D): 52.5 mm x 85 mm x 69 mm

• Product Net Weight: 0.315 kg

• Standards / Compliance: IEC 60898-1, RoHS, REACH, WEEE Category: 5 (Business to Business)

Ideal Applications

• Low-Voltage Electrical Distribution Systems

• Commercial Building Sub-Distribution Boards

• Residential Electrical Panels and Switchboards

• General Circuit Protection and Sub-Main Switchgear

Conclusion

Ultimately, the ABB 20A 6kA TP MCB (SH203-C20) delivers dependable circuit protection and reliable performance for low-voltage electrical installations across Bangladesh, helping protect circuits against overloads and short circuits.
