ABB 3P MC AF190-30-11-13  Price in Bangladesh

Description

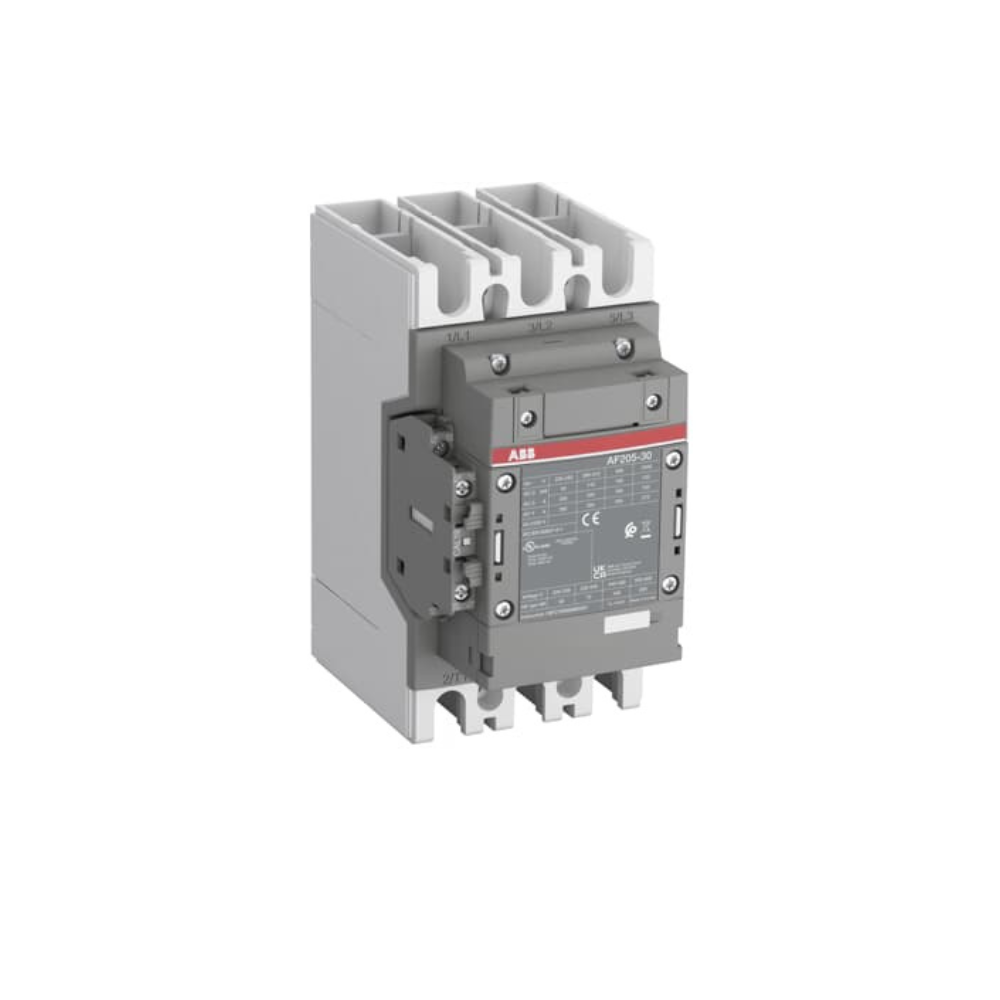

Product Name: ABB 3P MC AF190-30-11-13  Price in Bangladesh

Manufacturer: ABB

Product Overview

The ABB AF190-30-11-13 is a high-performance 3-pole block contactor designed for reliable motor control and power switching applications. Equipped with advanced ABB AF technology, it features an electronic coil interface that accepts a wide control voltage range (100–250 V AC/DC), supporting reliable operation across control-voltage variations. It is ideal for controlling motors up to 90 kW / 400 V AC (AC-3) and switching power circuits up to 275 A (AC-1 at 690 V, 40 °C).

Key Features and Benefits

• Wide Control Voltage Range: Operates smoothly on 100–250 V AC/DC control voltages and accommodates control-voltage variations.

• High Switching Capacity: Efficiently handles heavy-duty industrial loads, rated for up to 90 kW at 400 V for AC-3 motor applications and 275 A at 690 V, 40 °C for AC-1 operation.

• Pre-Mounted Auxiliary Contacts: Comes equipped with built-in auxiliary contacts (1 NO and 1 NC) for seamless feedback integration and control circuit configuration.

• Robust Industrial Durability: Designed with a mechanical durability of up to 5 million cycles to ensure long-term reliability in demanding environments.

Technical Specifications

• Product Line: ABB AF Series 3-Pole Contactors

• Model / Part Number: AF190-30-11-13 (1SFL487002R1311)

• Number of Poles: 3-Pole (3P)

• Main Contacts (NO / NC): 3 / 0

• Auxiliary Contacts (NO / NC): 1 / 1

• Rated Operational Voltage: Main Circuit 1000 V

• Conventional Free-air Thermal Current (Ith): 275 A at 40 °C

• Rated Operational Current AC-1 (Ie): 275 A at 690 V, 40 °C

• Rated Operational Current AC-3 (Ie): 190 A at 380/400 V, 60 °C

• Rated Operational Power AC-3 (Pe): 90 kW at 380/400 V

• Rated Control Circuit Voltage (Uc): 100 … 250 V (50/60 Hz and DC)

• Dimensions (H x W x D): 196 mm x 105 mm x 152 mm

• Product Net Weight: 2.4 kg

Ideal Applications

Suitable for applications such as:

• Industrial Motor Control Centers (MCC) in Bangladesh

• Automatic Transfer Switches (ATS) and Generator Panels

• Heavy Machinery and Factory Automation Switchgear

• Commercial and Heavy-Duty Power Distribution Networks

Conclusion

Ultimately, the ABB 3P MC AF190-30-11-13 Magnetic Contactor offers reliable performance, efficient electronic coil operation, and robust current-handling capability for industrial electrical systems in Bangladesh. With its electronic coil technology and robust current-handling capability, it supports safe and reliable operation across demanding industrial applications.
