ABB 630A 20kA VD4 Fixed VCB Best Price in Bangladesh

Description

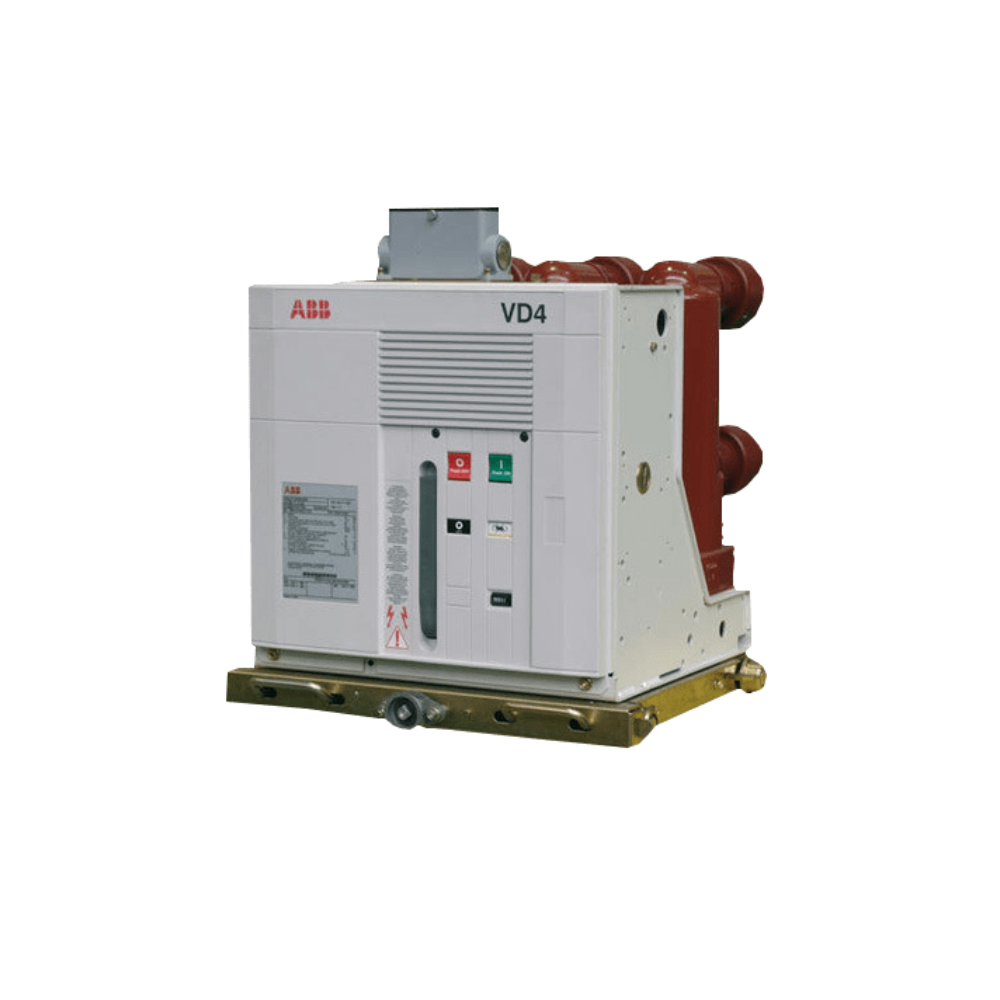

Product Name: ABB 630A 20kA VD4 Fixed VCB Best Price in Bangladesh

Manufacturer: ABB

Product Overview

The ABB VD4 Medium Voltage Fixed Vacuum Circuit-Breaker series utilizes advanced vacuum interruption technology. Engineered as an indoor fixed vacuum circuit breaker designed in accordance with IEC 62271-100 standards, this unit provides switching performance for medium-voltage distribution systems, ensuring operational reliability.

Key Features

• Vacuum Interruption Technology: Employs vacuum interrupters for safe, efficient, and reliable current interruption.

• Fixed Design: Specifically engineered for stationary/fixed mounting configurations to suit various panel board designs.

• Proven Performance: Engineered for medium-voltage applications with consistent performance across diverse environments.

• Design Standard: Designed in accordance with IEC 62271-100 for safety and technical compliance.

Technical Specifications

• Manufacturer: ABB

• Series: VD4 (Fixed Type)

• Rated Voltage ($U_r$): 12 kV

• Rated Insulation Voltage ($U_s$): 12 kV

• Rated Normal Current ($I_r$): 630 A

• Rated Breaking Capacity ($I_{sc}$): 20 kA

• Short-Time Withstand Current ($I_k$, 3s): 20 kA

• Making Capacity ($I_p$): 50 kA

• Frequency: 50–60 Hz

• Power-Frequency Withstand Voltage: 28 kV / 1 min

• Impulse Withstand Voltage: 75 kV

• Opening Time: 33–60 ms

• Arcing Time: 10–15 ms

• Total Breaking Time: 43–75 ms

• Closing Time: 30–60 ms

• Operating Temperature: -5°C to +40°C

Dimensions & Pole Distances

For the 630A configuration, different pole distances correspond to specific unit widths, while the height remains 461 mm and depth 424 mm:

• 135 mm Pole Distance: Width is 410 mm

• 150 mm Pole Distance: Width is 450 mm

• 210 mm Pole Distance: Width is 570 mm

• 275 mm Pole Distance: Width is 700 mm

Conclusion

The ABB VD4 630A 20kA Fixed VCB provides a reliable switching solution for medium-voltage distribution systems, offering multiple pole-distance configurations to meet specific installation requirements.
