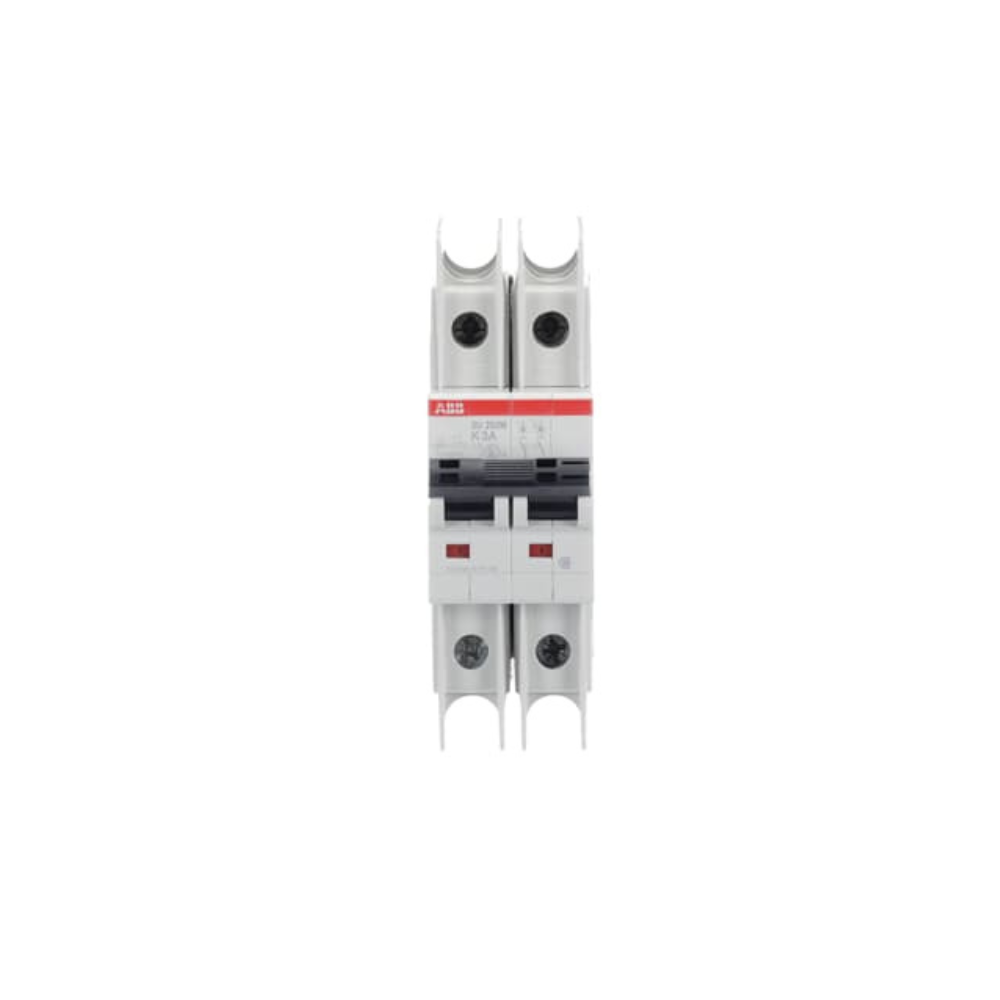

ABB SU202M-K3 3A 2 Pole Miniature Circuit Breaker Supplier in Bangladesh

Description

Product Name: ABB SU202M-K3 3A 2 Pole Miniature Circuit Breaker Supplier in Bangladesh

Manufacturer: ABB

Product Description

The ABB SU202M-K3 3A 2 Pole Miniature Circuit Breaker (MCB) is engineered for branch circuit protection in commercial and industrial electrical systems under dual UL 489 and IEC standards. Part of the SU200M compact series, this two-pole automatic circuit breaker features a K-curve tripping characteristic, a 3A rated current, and a high breaking capacity of up to 15 kA. It provides reliable overload and short-circuit protection for electrical distribution networks across Bangladesh.

Key Features

• K-Curve Tripping Characteristic: Designed to handle high inrush currents while offering precise protection against overloads and short circuits.

• 2-Pole Configuration: Designed for two-pole AC/DC electrical distribution and protection applications.

• High Breaking Capacity: Delivers ultimate short-circuit breaking capacities up to 15 kA under IEC/EN 60947-2 and 10 kA under UL 489 standards.

• Exceptional Durability: Offers up to 20,000 electrical AC cycles and 20,000 mechanical operating cycles.

• SU200M Series: Part of ABB’s trusted modular miniature circuit breaker line designed for demanding industrial environments.

Technical Specifications

• Brand: ABB

• Series: SU200M

• Model: SU202M-K3

• Product ID: 2CDS272337R0317

• EAN: 4016779932653

• Product Type: Miniature Circuit Breaker (MCB)

• Rated Current (In): 3 A

• Number of Poles: 2P (2 Protected Poles)

• Tripping Characteristic: K

• Input Voltage Type: AC/DC

• Rated Operational Voltage: 440 V AC (IEC 60898-1), 400 V AC (IEC 60947-2), 480Y / 277 V AC, 96 V DC (UL/CSA)

• Rated Insulation Voltage (Ui): 400 V

• Rated Impulse Withstand Voltage (Uimp): 4 kV

• Rated Ultimate Short-Circuit Breaking Capacity (Icu): (400 V AC) 15 kA

• Rated Service Short-Circuit Breaking Capacity (Ics): (400 V AC) 11.2 kA

• Interrupting Rating (UL 489): (240 V AC) 10 kA, (480Y / 277 V AC) 10 kA, (96 V DC) 10 kA

• Electrical Durability: 20,000 AC cycles

• Mechanical Durability: 20,000 cycles

• Terminal Type: Double Clamp with Failsafe Bi-directional Cylinder-lift Terminal

• Standards: UL 489, CSA 22.2 No. 5, IEC/EN 60947-2, IEC/EN 60898-1

• Dimensions (W x H x D): 35 mm x 111 mm x 69 mm (2 Modular Spacings)

• Weight: 0.244 kg (Product Net Weight)

Conclusion

The ABB SU202M-K3 3A 2 Pole Miniature Circuit Breaker is designed for advanced branch circuit protection requiring compliance with international standards. Its two-pole layout, K-curve sensitivity, and dual AC/DC compatibility make it ideal for protecting specialized control circuits and industrial equipment in Bangladesh.
