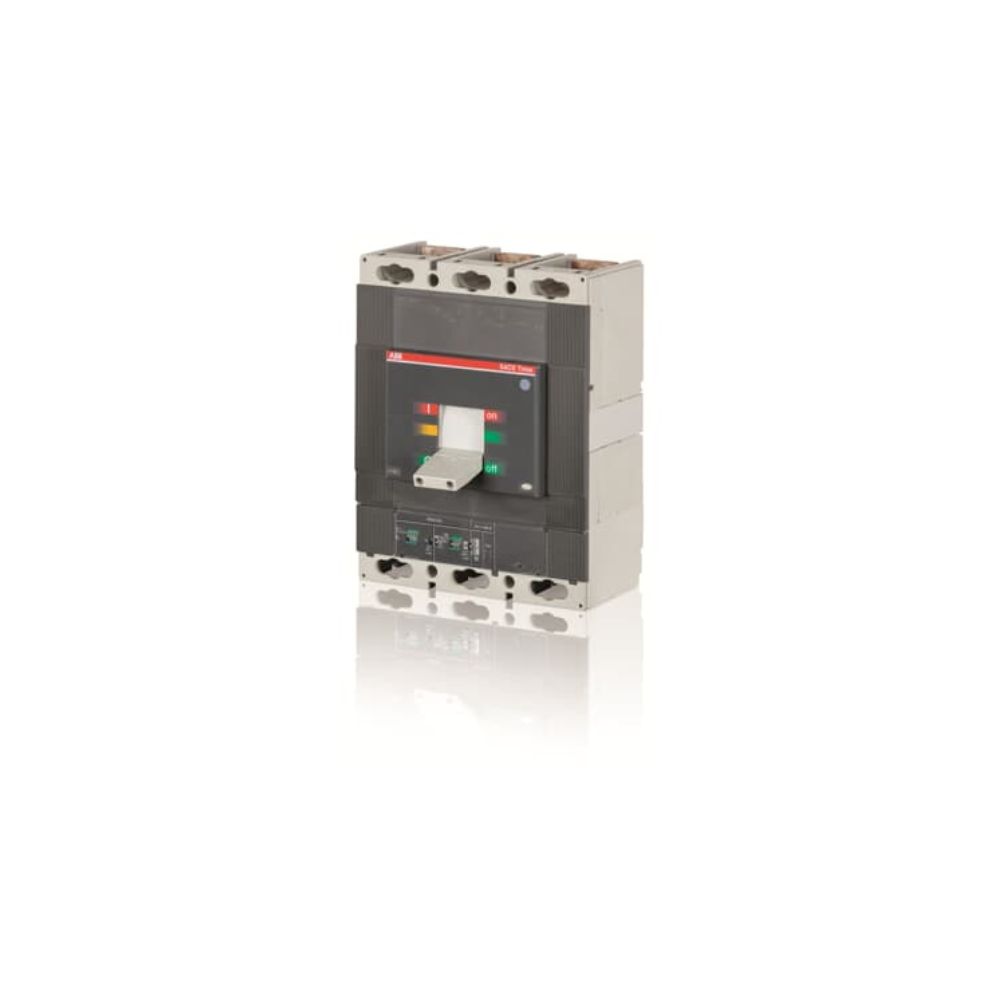

ABB T6N1000 1000A 3 Pole Moulded Case Circuit Breaker Distributor in Bangladesh

Description

Product Name: ABB T6N1000 1000A 3 Pole Moulded Case Circuit Breaker Distributor in Bangladesh

Manufacturer: ABB

Product Description

The ABB T6N1000 1000A 3 Pole Moulded Case Circuit Breaker (MCCB) is engineered for high-capacity power distribution and circuit protection applications. Part of the SACE Tmax T series, this fixed three-pole automatic circuit breaker features front terminals, a 1000A rated current, and an electronic PR221DS-LS/I solid-state release unit. It provides reliable overload and short-circuit protection for heavy-duty electrical installations across Bangladesh.

Key Features

• Solid-State Electronic Release (PR221DS-LS/I): Equipped with an electronic PR221DS-LS/I release unit delivering precise protection parameters for electrical networks.

• 3-Pole Configuration: Designed for three-phase power distribution circuits.

• High Breaking Capacity: Delivers ultimate short-circuit breaking capacities up to 36 kA at 400/415 V AC and 70 kA at 220/230 V AC under IEC standards.

• Exceptional Durability: Built to withstand up to 20,000 mechanical cycles and 4,000 electrical cycles.

• SACE Tmax T Series: Part of ABB’s trusted moulded case circuit breaker family.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax T

• Model: T6N 1000 PR221DS-LS/I In=1000 3p F F

• Product ID: 1SDA060537R1

• EAN: 8015644630522

• Product Type: Automatic Circuit Breaker (Moulded Case Circuit Breaker)

• Rated Current (In): 1000 A

• Rated Uninterrupted Current (Iu): 1000 A

• Number of Poles: 3P

• Release: PR221DS-LS/I

• Release Type: Electronic (EL)

• Rated Operational Voltage: 690 V AC

• Rated Insulation Voltage (Ui): 1000 V

• Rated Impulse Withstand Voltage (Uimp): 8 kV

• Short-Circuit Performance Level: N

• Rated Ultimate Short-Circuit Breaking Capacity (Icu): (220/230 V AC) 70 kA, (380/400/415 V AC) 36 kA, (440 V AC) 30 kA, (500 V AC) 25 kA, (690 V AC) 20 kA

• Electrical Durability: 4,000 cycles

• Mechanical Durability: 20,000 cycles

• Terminal Connection Type: Front Terminals (Fixed Version)

• Standards: IEC

• Dimensions (W x H x D): 210 mm x 268 mm x 103.5 mm

• Weight: 12.863 kg (Product Net Weight)

Conclusion

The ABB T6N1000 1000A 3 Pole Moulded Case Circuit Breaker is designed for high-capacity power distribution systems requiring electronic protection under IEC standards. Its three-pole layout, PR221DS-LS/I release, and breaking capacity make it suitable for industrial electrical installations in Bangladesh.
