ABB XT2V 160A 3 Pole Ekip LSI IEC MCCB Best Price in Bangladesh

Description

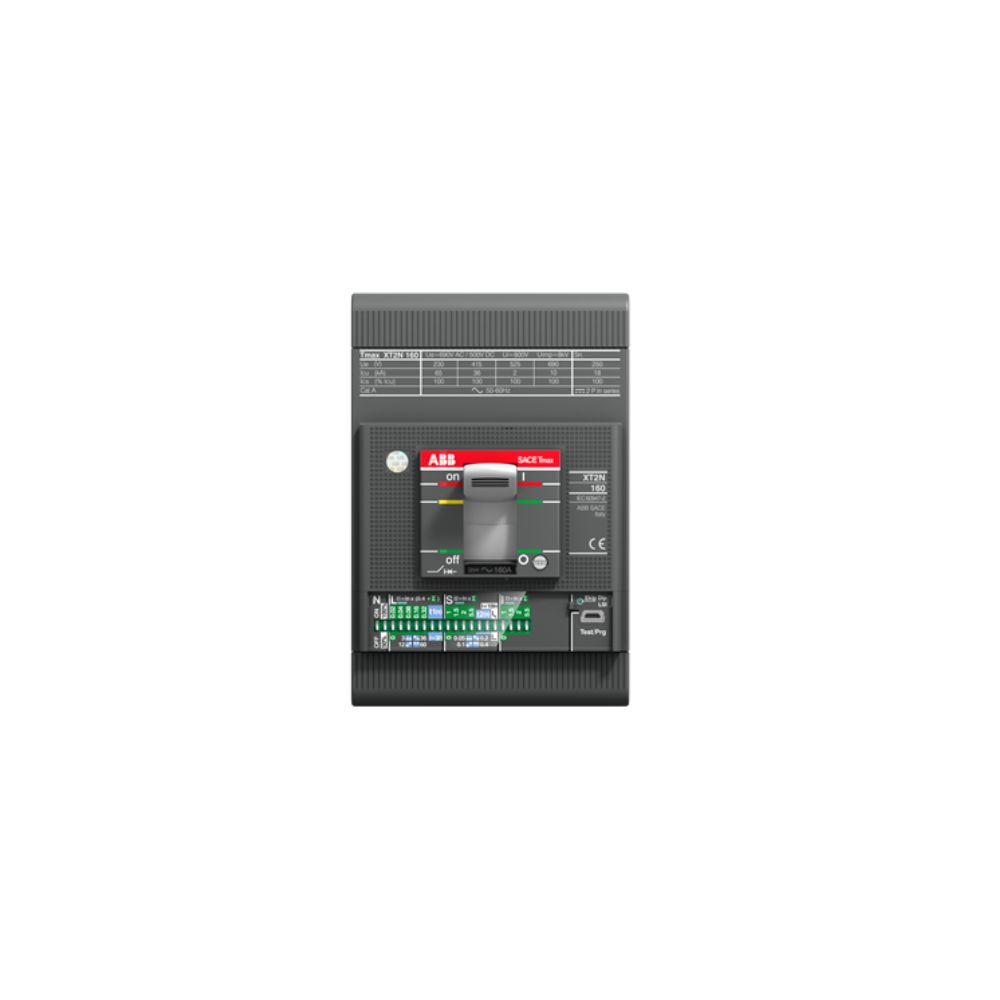

Product Name: ABB XT2V 160A 3 Pole Ekip LSI IEC MCCB Best Price in Bangladesh

Manufacturer: ABB

Product Description

The ABB XT2V 160A 3 Pole Ekip LSI IEC MCCB is engineered for high-performance power distribution and advanced circuit protection under IEC 60947-2 standards. Part of the compact SACE Tmax XT series, this fixed three-pole automatic circuit breaker features front terminals, a 160A rated current, and an advanced electronic Ekip LSI solid-state release unit. It provides high-precision protection for demanding industrial and commercial electrical systems across Bangladesh at the best competitive market rate.

Key Features

• Ekip LSI Electronic Release: Equipped with an advanced electronic trip unit providing electronic Long-time (L), Short-time (S), and Instantaneous (I) protection.

• 3-Pole Configuration: Engineered specifically for standard three-phase power distribution networks.

• High Breaking Capacity: Delivers ultimate short-circuit breaking capacities up to 200 kA at 220/230/240 V AC and 150 kA at 380/415/440 V AC for exceptional fault interruption.

• Exceptional Durability: Built to withstand up to 25,000 mechanical operating cycles and 8,000 electrical operating cycles.

• ABB EcoSolutions: Designed with sustainable manufacturing principles, featuring a 55.7% recyclability rate according to EN45555 and UL 2799 Zero Waste to Landfill validation.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax XT

• Model: XT2V 160 Ekip LSI 3P

• Extended Product Type: XT2V 160 Ekip LSI In=160A 3p F F

• Product ID: 1SDA067985R1

• Order Code / US & Canada Code: XT2VE3160FFF000XXX

• EAN: 8015644018818

• Product Type: Automatic Circuit Breaker (Moulded Case Circuit Breaker)

• Rated Current (In): 160 A

• Rated Uninterrupted Current (Iu): 160 A

• Number of Poles: 3P

• Release: Ekip LSI

• Release Type: Electronic (EL)

• Current Type: AC

• Rated Operational Voltage: 690 V AC

• Rated Insulation Voltage (Ui): 1000 V

• Rated Impulse Withstand Voltage (Uimp): 8 kV

• Short-Circuit Performance Level: V

• Rated Ultimate Short-Circuit Breaking Capacity (Icu): (220/230/240 V AC) 200 kA, (380/415/440 V AC) 150 kA, (500 V AC) 70 kA, (525 V AC) 50 kA, (690 V AC) 20 kA

• Rated Service Short-Circuit Breaking Capacity (Ics): (220/230/240 V AC) 200 kA, (380/415/440 V AC) 150 kA, (500 V AC) 70 kA, (525 V AC) 50 kA, (690 V AC) 15 kA

• Mechanical Durability: 25,000 cycles

• Electrical Durability: 8,000 cycles

• Terminal Connection Type: Front Terminals (Fixed Version)

• Standards: IEC 60947-2

• Dimensions (W x H x D): 90 mm x 130 mm x 82.5 mm

• Weight: 1.12 kg (Product Net Weight)

Conclusion

The ABB XT2V 160A 3 Pole Ekip LSI IEC MCCB offers reliable power distribution and circuit protection for industrial and commercial electrical systems. Featuring an advanced Ekip LSI electronic release unit, exceptional breaking capacities, and a compact three-pole structure, it ensures maximum safety, accuracy, and operational uptime at the best price in Bangladesh.
