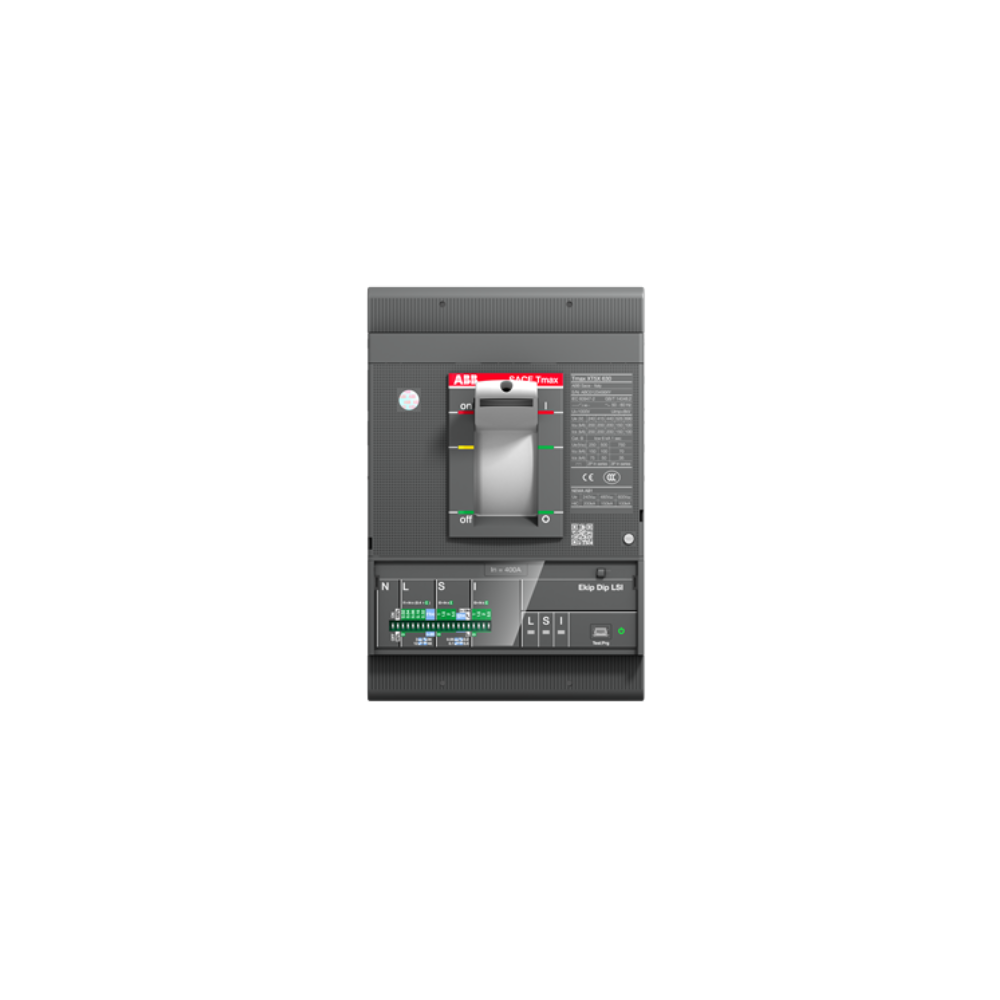

ABB XT5H400 400A 3 Pole Moulded Case Circuit Breaker Best Price in Bangladesh

Description

Product Name: ABB XT5H400 400A 3 Pole Moulded Case Circuit Breaker Best Price in Bangladesh

Manufacturer: ABB

Product Description

The ABB XT5H400 400A 3 Pole Moulded Case Circuit Breaker (MCCB) is engineered for high-capacity power distribution and motor protection applications under IEC standards. Part of the SACE Tmax XT series, this fixed three-pole automatic circuit breaker features front terminals, a 400A rated current, and an electronic Ekip M Dip I solid-state release unit. It provides reliable short-circuit protection for heavy-duty motor and industrial electrical installations across Bangladesh.

Key Features

• Solid-State Electronic Release (Ekip M Dip I): Features an Ekip M Dip I electronic trip unit for accurate overload and short-circuit protection in motor protection applications.

• 3-Pole Configuration: Designed for three-phase power distribution circuits.

• High Breaking Capacity: Delivers ultimate short-circuit breaking capacities up to 70 kA at 380/415 V AC and 100 kA at 220/240 V AC under IEC 60947-2 standards.

• Exceptional Durability: Built to withstand up to 20,000 mechanical cycles and 7,000 electrical cycles.

• SACE Tmax XT Series: Part of ABB’s trusted moulded case circuit breaker family designed for high-performance industrial applications.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax XT

• Model: XT5H 400 Ekip M Dip I In=400A 3p F F

• Product ID: 1SDA100504R1

• EAN: 8056221005814

• Product Type: Automatic Circuit Breaker (Moulded Case Circuit Breaker)

• Rated Current (In): 400 A

• Rated Uninterrupted Current (Iu): 400 A

• Number of Poles: 3P

• Release: Ekip M Dip I

• Release Type: Electronic (EL)

• Rated Operational Voltage: 690 V AC

• Rated Insulation Voltage (Ui): 1000 V

• Rated Impulse Withstand Voltage (Uimp): 8 kV

• Short-Circuit Performance Level: H

• Rated Ultimate Short-Circuit Breaking Capacity (Icu): (220/230/240 V AC) 100 kA, (380/415 V AC) 70 kA, (440 V AC) 65 kA, (500/525 V AC) 50 kA, (690 V AC) 40 kA

• Electrical Durability: 7,000 cycles

• Mechanical Durability: 20,000 cycles

• Terminal Connection Type: Front Terminals (Fixed Version)

• Standards: IEC 60947-2

• Dimensions (W x H x D): 140 mm x 205 mm x 103.5 mm

• Weight: 4.82 kg (Product Net Weight)

Conclusion

The ABB XT5H400 400A 3 Pole Moulded Case Circuit Breaker is designed for high-capacity motor protection systems requiring robust electronic trip units under IEC standards. Its three-pole layout, high breaking capacity, and Ekip M Dip I release make it ideal for demanding industrial electrical setups in Bangladesh.
