ABB XT7H 1200A 3 Pole Ekip Dip LSIG UL MCCB Buy Online in Bangladesh

Description

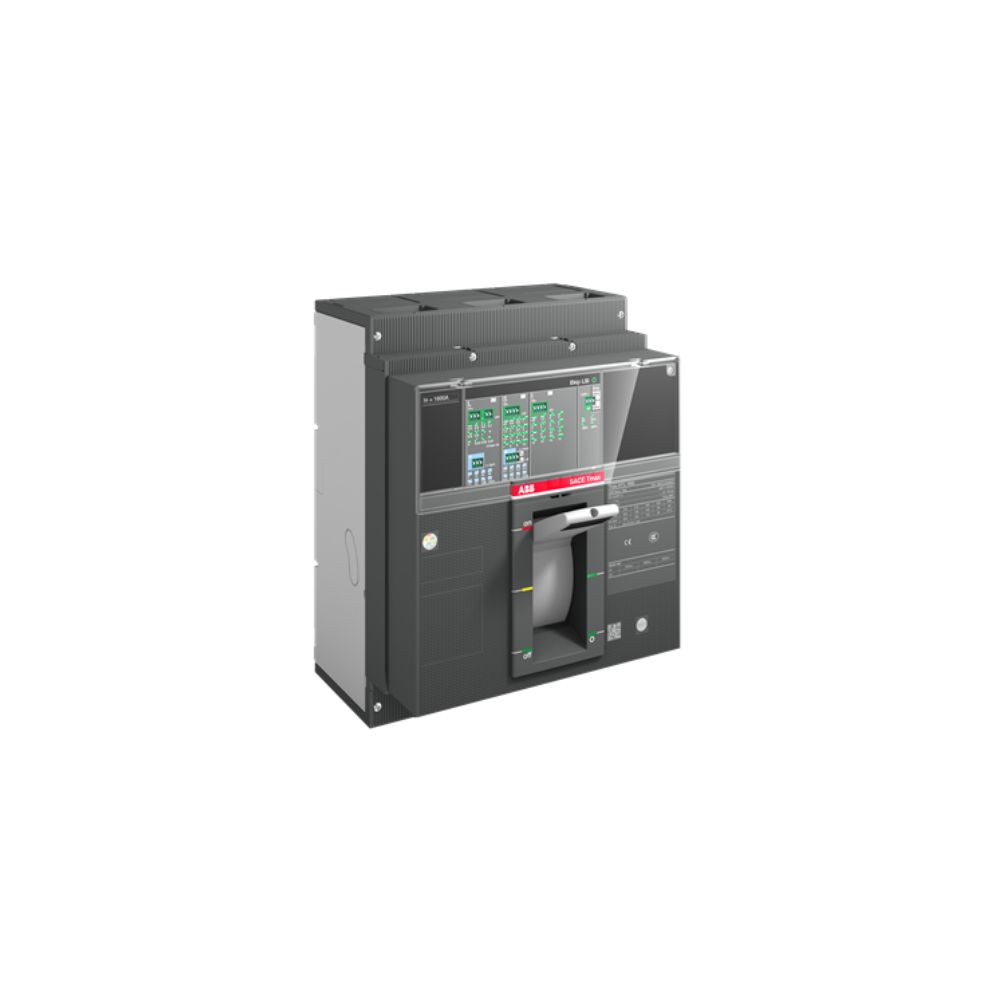

Product Name: ABB XT7H 1200A 3 Pole Ekip Dip LSIG UL MCCB Buy Online in Bangladesh

Manufacturer: ABB

Product Description

The ABB XT7H 1200A 3 Pole Ekip Dip LSIG UL MCCB is engineered for high-capacity power distribution and heavy-duty circuit protection under strict UL 489 standards. Part of the advanced SACE Tmax XT series, this fixed three-pole automatic circuit breaker features front terminals, a lever operating mechanism, a 1200A rated current, and an advanced electronic Ekip Dip LSIG solid-state release unit. It provides comprehensive protection—including long-time, short-time, instantaneous, and ground fault protection (LSIG)—for demanding industrial and commercial electrical installations across Bangladesh.

Key Features

• Solid-State Electronic Release (Ekip Dip LSIG): Equipped with an Ekip Dip LSIG electronic trip unit providing long-time, short-time, instantaneous, and ground fault protection.

• 3-Pole Configuration: Engineered specifically for three-phase power distribution networks.

• High Interrupting Ratings (UL 489): Delivers robust short-circuit interrupting ratings up to 100 kA at 240 V AC, 65 kA at 480 V AC, and 50 kA at 600 V AC.

• Exceptional Durability: Built to withstand up to 10,000 mechanical operating cycles under industrial operating conditions.

• ABB EcoSolutions: Designed with sustainable manufacturing practices, featuring a 64.1% recyclability rate according to EN45555 and zero waste to landfill validation.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax XT

• Model: XT7H 1200A Ekip Dip LSIG 3P UL

• Extended Product Type: XT7H 1200 Ekip Dip LSIG In1200A 3p FF UL

• Product ID: 1SDA102955R1

• Order Code / US & Canada Code: XT7HU312EGFF000XXX

• EAN: 8015644034665

• Product Type: Automatic Circuit Breaker (Moulded Case Circuit Breaker)

• Rated Current (In): 1200 A

• Rated Uninterrupted Current (Iu): 1200 A

• Number of Poles: 3P

• Release: Ekip Dip LSIG

• Release Type: Electronic (EL)

• Current Type: AC

• Rated Frequency: 50/60 Hz

• Rated Operational Voltage: 600 V AC

• Short-Circuit Performance Level: H

• Interrupting Rating acc. to UL 489: (240 V AC) 100 kA, (480 V AC) 65 kA, (600 V AC) 50 kA

• Mechanical Durability: 10,000 cycles

• Terminal Connection Type: Front Terminals (Fixed Version)

• Standards: UL 489

• Dimensions (W x H x D): 210 mm x 268 mm x 178 mm

• Weight: 9.7 kg (Product Net Weight)

Conclusion

The ABB XT7H 1200A 3 Pole Ekip Dip LSIG UL MCCB offers reliable, high-performance circuit protection for demanding industrial applications requiring strict UL compliance. With its sophisticated Ekip Dip LSIG electronic trip unit, high interrupting capacity, and robust three-pole structure, it ensures maximum safety and operational continuity.
