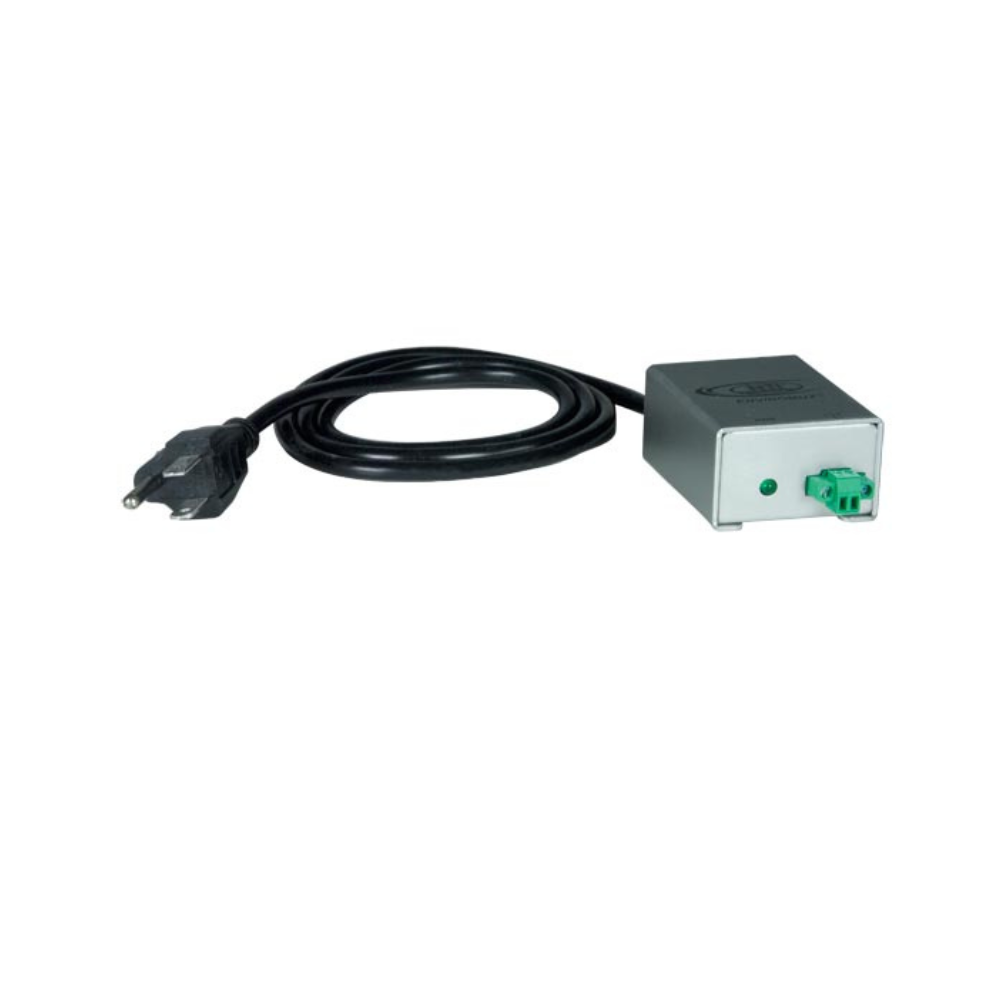

AC Voltage Detector with Relay – E-ACVDRLY

Description

Product Name: AC Voltage Detector with Relay – E-ACVDRLY

Manufacturer: NTI (Network Technologies Inc)

Product Overview

The  E-ACVDRLY is an AC voltage detector designed to monitor the presence or absence of AC mains voltage from 50 VAC to 250 VAC. It connects to environmental monitoring systems with dry contact inputs, battery, sensor, or other compatible monitoring devices. The internal relay closes when the detected voltage exceeds 60 VAC and opens when the voltage falls to 55 VAC or below, providing reliable alarm and normal status indication.

Key Features

• Monitoring Range: Detects AC mains voltage from 50 VAC to 250 VAC.

• Reliable Relay Logic: Features an internal relay that provides Alarm or Normal status indication based on the detected AC voltage level.

• Flexible Connection Options: Available in two variants: the E-ACVDRLY-515 (includes a 5.5-foot cord with a standard US 120V 10A NEMA 5-15 plug) or the E-ACVDRLY-C14 (includes a 6-inch cord with a universal 250V IEC C14 socket).

• Extended Reach: Supports 2-wire sensor cable runs up to 1,000 feet (305 meters), allowing for versatile placement within large facilities.

• Versatile Applications: Ideal for monitoring electrical sources, power couplings, line power, UPS systems, power supplies, sump pumps, Intrusion Prevention Systems (IPS), Intrusion Detection Systems (IDS), and other electrical equipment.

• Robust Isolation: Provides 1.5 kVDC/Peak AC galvanic isolation for reliable electrical isolation between monitored equipment and the monitoring system.

Technical Specifications

• Switching Thresholds: Maximum Close Voltage: 90 VAC @ 60 Hz, 108 VAC @ 50 Hz. Minimum Open Voltage: 10 VAC @ 60 Hz, 12 VAC @ 50 Hz.

• Switching Capacity: Maximum switching current of 500mA with a maximum hold-off voltage of 250VDC.

• Connectivity: 2-position screw-terminal connection; includes a 6-foot (1.8-meter) 2-wire cable for system interface.

• Operating Environment: Designed for temperatures between 32°F and 140°F (0°C to 60°C) and 17% to 90% non-condensing relative humidity.

• Reliability: Boasts an impressive MTBF of 3,539,338 hours.

• Regulatory Compliance: CE and RoHS compliant.

Conclusion

Dream Technologies BD is a trusted supplier of the NTI E-ACVDRLY in Bangladesh. We offer expert consultation and technical support to help integrate the E-ACVDRLY into your environmental monitoring system. Whether you are safeguarding server rooms, telecom sites, or industrial power setups, our team helps you implement effective voltage detection solutions to prevent downtime and protect your assets.
