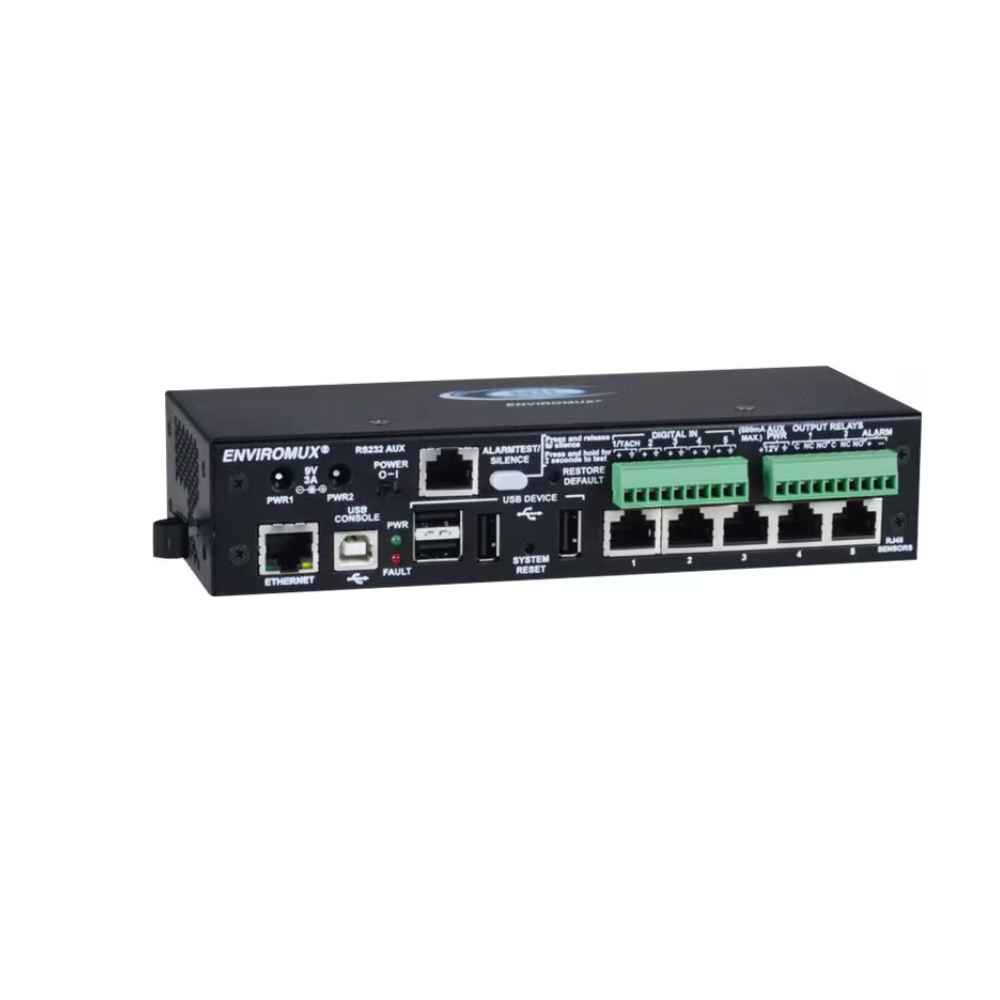

Medium Enterprise Environment Monitoring System – E-5D

Description

Product Name: Medium Enterprise Environment Monitoring System – E-5D

Manufacturer: NTI (Network Technologies Inc)

Product Overview

The  E-5D is a medium enterprise environment monitoring system designed to monitor critical environmental conditions such as temperature, humidity, liquid water presence, power, intrusion, and smoke. The system includes two internal sensors (temperature and humidity) and supports five external configurable sensors, five digital input sensors, and two output relays. When a sensor threshold is breached, the E-5D notifies users via email, LEDs, alarm beacon, siren, web page, SNMP, voice phone calls (via Automatic Voice Dialer System – not included), or SMS messages (via external USB modem – not included). Built on a Linux platform, the system offers robust management capabilities for data centers and IT facilities.

Key Features

• Integrated Monitoring: Features two internal sensors (temperature and humidity) to monitor conditions inside the case.

• Flexible Expansion: Supports 5 external RJ45 sensor ports, 5 digital inputs, and 2 output relays for external device control. Sensors can be extended up to 1,000 feet using Cat5/5e/6 cable.

• Smart Alerting: Configurable for up to 50 individual event conditions and up to 20 “Smart Alerts” using various event combinations.

• Device Management: Monitors (pings) up to 64 IP network devices; alerts are sent if devices stop responding.

• IP Camera Integration: Supports IP network video cameras for live viewing and can trigger snapshots based on programmed events.

• Scalable Deployment: Cascade up to 5 units (1 master, 4 slaves) via Ethernet or manage up to 3,000 units using optional management software.

• Linux Platform: Built on a Linux system for reliable, continuous operation with multi-language support (English, German, Chinese, Japanese).

Technical Specifications

• Internal Sensors: 2 (Temperature & Humidity)

• Sensor/Input Ports: 5 RJ45 Sensor Ports, 5 Digital Inputs (Screw Terminal), 2 Output Relays.

• Alerting Methods: Email (authenticated), SNMP (V1/V2c/V3), Web Page, LED, Alarm Beacon, Siren, Voice Phone Calls (via Automatic Voice Dialer System – not included), SMS Messages (via external USB modem – not included).

• Network Protocols: HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, SSHv2, SSLv3, TLS v1.2, LDAPv3, XOAUTH2, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour, IPv6, WAP 2.0, RADIUS.

• Operating Temperature (Standard E-5D): 32°F to 140°F (0°C to 60°C).

• Operating Humidity (Standard E-5D): 20% to 80% Relative Humidity at 32°F to 140°F (0°C to 60°C).

• Connectivity: 10/100 Base-T Ethernet port, 4 USB Type A ports (modem/logging), USB Type B console port, RS232 AUX port.

• Power: 100-240 VAC via AC adapter (9 VDC, 3A output); optional 48VDC power available.

• Dimensions (Standard E-5D): 7.88″ x 3″ x 1.75″ (200 x 76 x 44 mm).

• Mounting: Zero-RU; optional DIN rail or 1RU rackmount kits available.

• Regulatory Approvals: CE, RoHS.

Conclusion

Dream Technologies BD is a trusted supplier of the E-5D in Bangladesh. We provide professional installation, software configuration, and dedicated after-sales support to ensure your medium-sized enterprise facility remains secure, stable, and fully monitored.
