APC 9K Series Switched 0U Rack PDU Price in Bangladesh (APDU9970)

Description

Product Name: APC  9K Series Switched 0U Rack PDU Price in Bangladesh (APDU9970)

Manufacturer: APC (Schneider Electric)

Product Overview

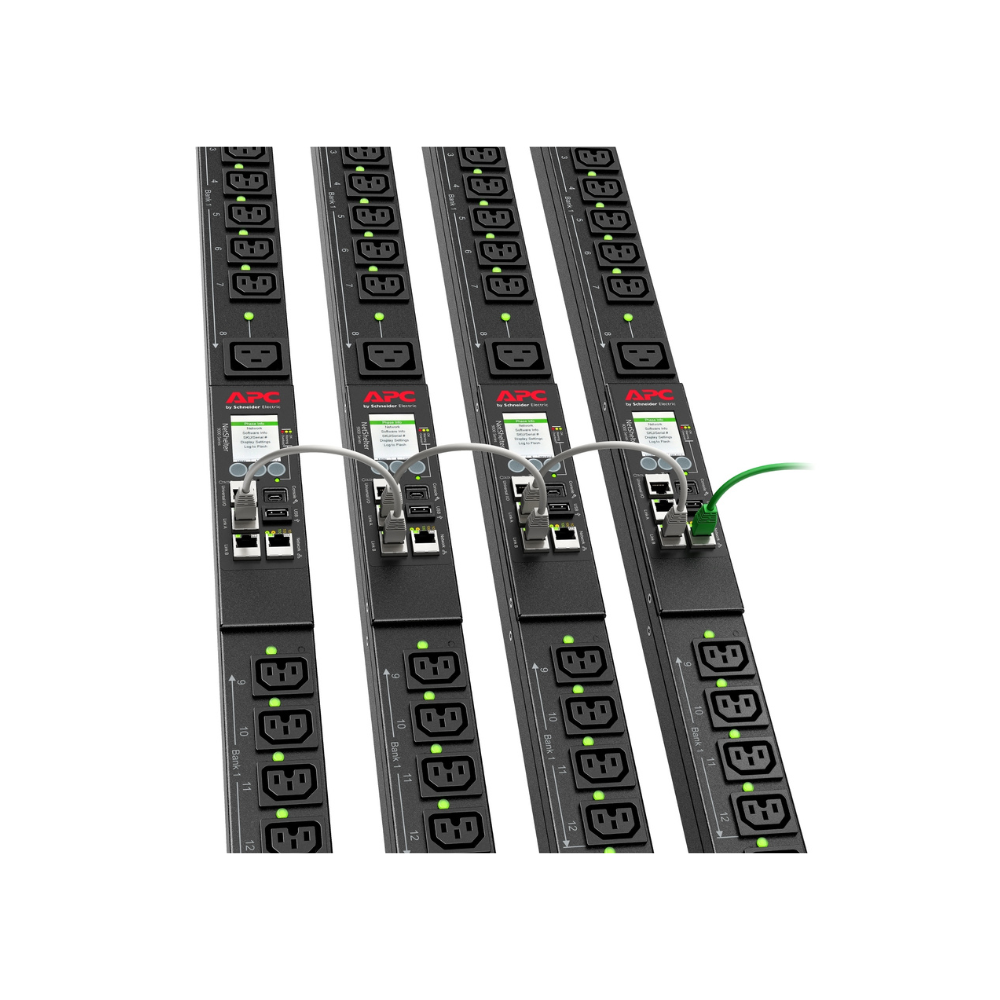

The APC NetShelter Switched Rack PDU, 9K series, 0U, 30A, 120/208V (Model: APDU9970) is an advanced power distribution unit engineered to provide user-customizable power control and active management. Featuring a 4,992 VA load capacity (with a maximum power capacity of 6.2 kW), a NEMA L14-30P input connection plug with a 3 m (9.8 ft) cord, and 24 total outlets comprising 16 NEMA 5-20R, 7 IEC C13/C15 hybrid outlets, and 1 IEC C19/C21 hybrid outlet, this switched PDU supports high-density enterprise data centers and IT environments. It includes circuit breaker protection and remote management capabilities.

Key Features and Benefits

• Advanced Switched Capabilities: Enables remote, individual outlet-level control for power recycling, power sequencing, and restricting unauthorized use of specific outlets.

• Remote Monitoring and Control: Supports remote monitoring and control for efficient power management and operational oversight.

• 0U Vertical Rack Integration: Designed for efficient side mounting inside standard server cabinets, preserving valuable horizontal rack space.

• Flexible Hybrid Outlets: Equipped with versatile hybrid outlets (C13/C15 & C19/C21) to accommodate diverse IT power connections.

Technical Specifications

• Brand: APC (Schneider Electric)

• Model: APDU9970 (NetShelter Switched Rack PDU, 9K Series)

• Product Type: Switched Rack PDU

• Rack Units: 0U Vertical (Side Mount)

• Main Input Voltage: 120V, 208V

• Main Output Voltage: 120V, 208V

• Network Frequency: 50/60 Hz

• Input Current Limits / Line Rated Current: 30A input limit / 24A line rated current per phase

• Load Capacity: 4992 VA (Maximum Power Capacity: 6.2 kW)

• Input Connection Type: NEMA L14-30P (with 3 m / 9.8 ft cable)

• Output Outlets: 16 × NEMA 5-20R, 7 × IEC C13/C15 hybrid outlets, 1 × IEC C19/C21 hybrid outlet

• Protection Type: Circuit breaker

• Dimensions (H × W × D): 1829 mm × 56 mm × 46 mm (72.0 in × 2.2 in × 1.8 in)

• Net Weight: 9.43 kg (20.79 lb)

• Certifications & Standards: cUL Listed, FCC Part 15 Class A, UL 62368-1

Ideal Applications

• Enterprise Data Centers and Server Rooms

• High-Density Mixed-Voltage Server Racks and Network Enclosures

• Telecom Distribution Hubs Requiring 0U Vertical Power Management

• IT Environments Requiring Remote Outlet Switching and Scalable Power Distribution

Conclusion

The APC NetShelter Switched 9K Series APDU9970 combines a 0U vertical form factor with mixed-voltage support, hybrid outlets, and remote outlet control, serving as a powerful power distribution solution for modern data centers.
