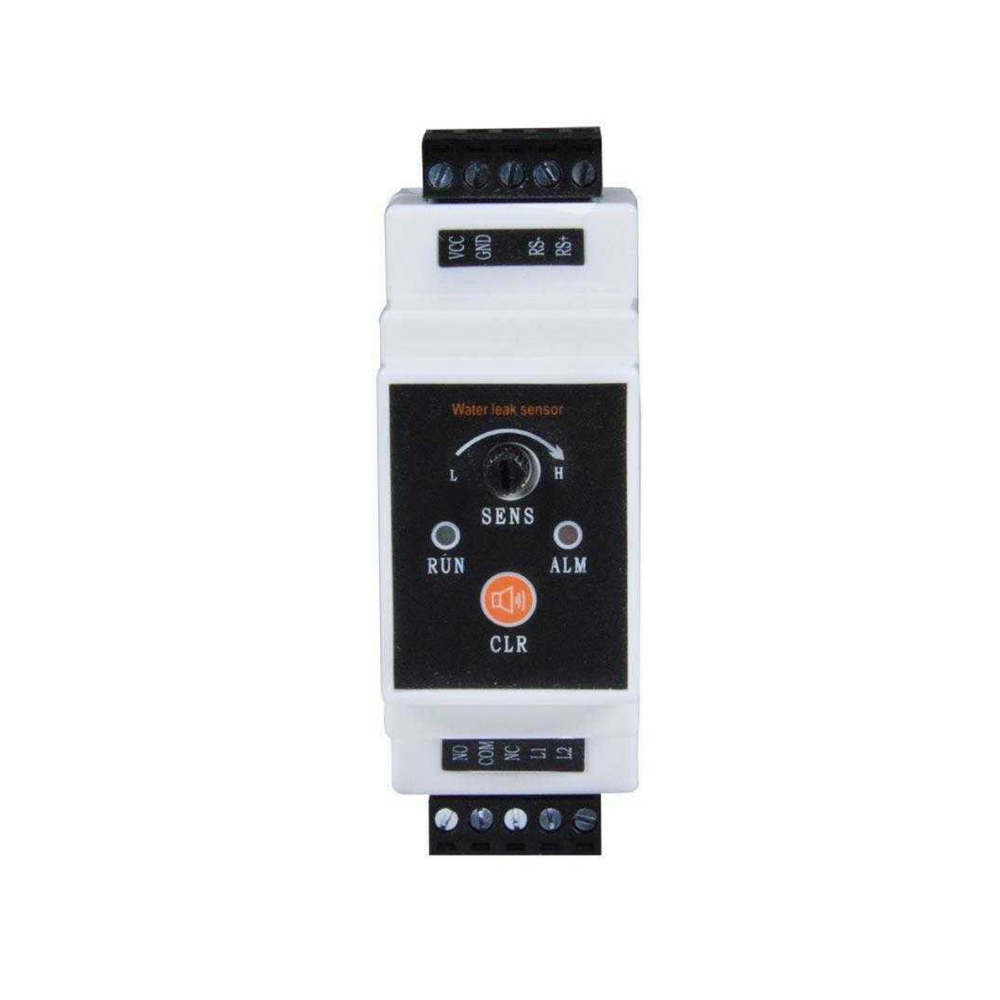

Single-Zone Liquid Detection System – E-LDA-LC2

Description

Product Name: Single-Zone Liquid Detection System – E-LDA-LC2

Manufacturer: NTI (Network Technologies Inc)

Product Overview

The E-LDA-LC2 serves as a dedicated single-zone liquid detection system, which we designed to provide early warnings against water and chemical leaks. It monitors up to 1,640 feet (500 meters) of compatible liquid/chemical detection sensor cable or under-carpet sensors. Once the system detects a leak, it triggers an immediate audible alarm along with a visual red LED indicator. Furthermore, you can operate it as a standalone monitoring device or integrate it into a larger infrastructure through its built-in relay outputs.

Key Features

• Extensive Monitoring Range: The system monitors up to 1,640 feet (500 meters) of liquid/chemical detection sensor cable or under-carpet leak detection sensors efficiently.

• Reliable Alerting: It features both audible and visual (red LED) alarms to ensure immediate awareness of leaks. Additionally, an onboard “mute” button allows you to silence the alarm easily.

• Adjustable Sensitivity: You can adjust the leak alarm sensitivity thresholds to meet your specific environmental requirements perfectly.

• Integration Ready: The system provides potential-free relay switch contacts (Normally Open/Normally Closed). Consequently, you can integrate it easily with larger building management or alarm systems.

• Flexible Installation: Its compact, DIN-rail mountable design makes it ideal for integration into standard control panels or server rack infrastructure.

• Compatible Sensors: It supports a wide variety of NTI sensors:

  • E-LD-LCx-y Low-Cost Liquid Detection Sensor Cable

  • E-LDx-y Liquid Detection Sensor Cable

  • E-CDx-y Chemical Detection Sensor Cable

  • E-UCLD-x Under Carpet Leak Detection Sensor

Technical Specifications

• Sensor Input: 1 screw terminal pair for leak detection sensor cable or under-carpet sensor.

• Output Relay: 1 screw terminal pair (Potential-free contacts; Max load: 0.5A @ 125VAC or 1A @ 24VDC).

• Power: One screw terminal pair; the package includes a 12VDC, 1A power supply with a country-specific line cord.

• Operating Temperature: -4°F to 122°F (-20°C to 50°C).

• Relative Humidity: 5% to 95% non-condensing RH.

• Dimensions: 1.41″ x 4.19″ x 2.44″ (36 x 106 x 62 mm).

• Regulatory & Warranty: CE, RoHS approved; 2-year warranty.

Conclusion

Dream Technologies BD acts as a trusted supplier of the NTI E-LDA-LC2 in Bangladesh. We provide professional consultation and support to help you deploy effective leak detection solutions for your server rooms, telecom sites, and critical infrastructure. Therefore, you can protect your equipment from costly water or chemical damage effectively.
