APC NetShelter Basic Rack PDU Price in Bangladesh (AP9563)

Description

Product Name: APC NetShelter Basic Rack PDU Price in Bangladesh (AP9563)

Manufacturer: APC (Schneider Electric)

Product Overview

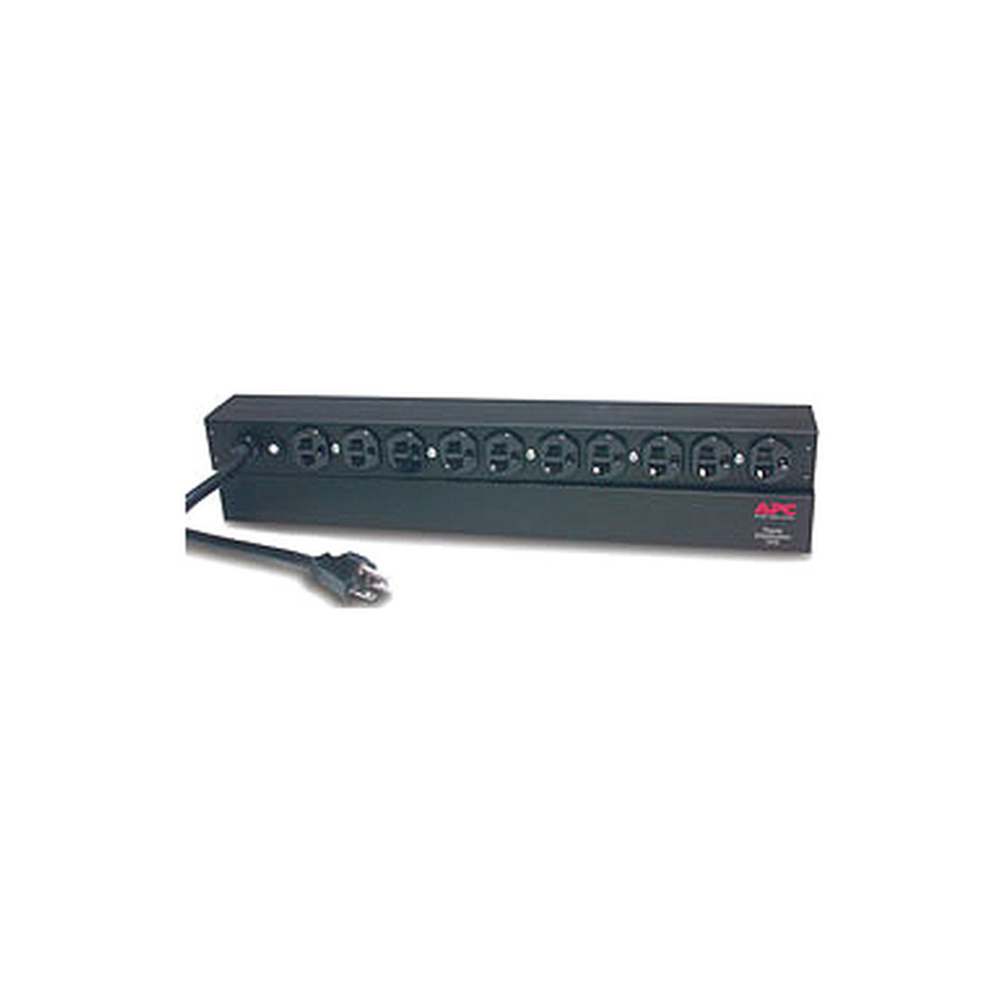

The APC NetShelter Basic Rack PDU, 1U, 20A, 120V, 10 NEMA 5-20 outlets, 5-20P inlet (Model: AP9563) is a reliable and straightforward power distribution unit engineered to deliver efficient power to server racks and IT enclosures. Featuring a 1,920 VA load capacity, a NEMA 5-20P input connection plug with an 11.98 ft (3.65 m) cord, and 10 × NEMA 5-20R output outlets, this basic PDU supports server rooms, network closets, and IT racks. It features a compact 1U horizontal form factor designed for front or rear rack mounting while offering robust power distribution.

Key Features and Benefits

• Reliable Power Distribution: Provides dependable power delivery for servers, network switches, and other IT equipment.

• 1U Horizontal Rack Integration: Designed for efficient front or rear mounting inside standard server cabinets, preserving valuable vertical space.

• Compact Enclosure Form Factor: Slim 1U profile configuration with 10 × NEMA 5-20R outlets to accommodate standard equipment setups cleanly.

• Included Mounting Hardware: Comes equipped with an installation guide and rack mounting brackets for quick, hassle-free setup.

Technical Specifications

• Brand: APC (Schneider Electric)

• Model: AP9563 (NetShelter Basic Rack PDU)

• Product Type: Basic Rack PDU

• Rack Units: 1U Horizontal (Front or Rear Mount)

• Main Input Voltage: 100V, 120V

• Main Output Voltage: 120V

• Input Frequency: 50/60 Hz

• Input Current Limit: 20A

• Line Rated Current: 16A

• Maximum Total Current Draw per Phase: 20A

• Load Capacity: 1920 VA

• Input Connection Type: NEMA 5-20P (with 11.98 ft / 3.65 m cable)

• Output Outlets: 10 × NEMA 5-20R outlets

• Operating Temperature Range: -5°C to 45°C (23°F to 113°F)

• Storage Temperature Range: -25°C to 65°C (-13°F to 149°F)

• Dimensions (H × W × D): 44 mm × 447 mm × 57 mm (1.7 in × 17.6 in × 2.2 in)

• Net Weight: 2.5 kg (5.5 lb)

• Certifications & Standards: cUL Listed, UL Listed

Ideal Applications

• Server Rooms and Network Closets Requiring 120V Distribution

• Standard Server Racks and IT Enclosures Requiring Basic Power Strips

• Telecom Distribution Hubs Requiring 1U Horizontal Mounting

• IT Environments Utilizing NEMA 5-20 Infrastructure

Conclusion

The APC NetShelter Basic Rack PDU AP9563 combines a space-saving 1U horizontal form factor with 10 × NEMA 5-20R outlets and a 20A input/current limit, serving as a dependable and efficient power distribution solution for modern 120V IT racks.
